3. Identifying the parts
3.1 Display

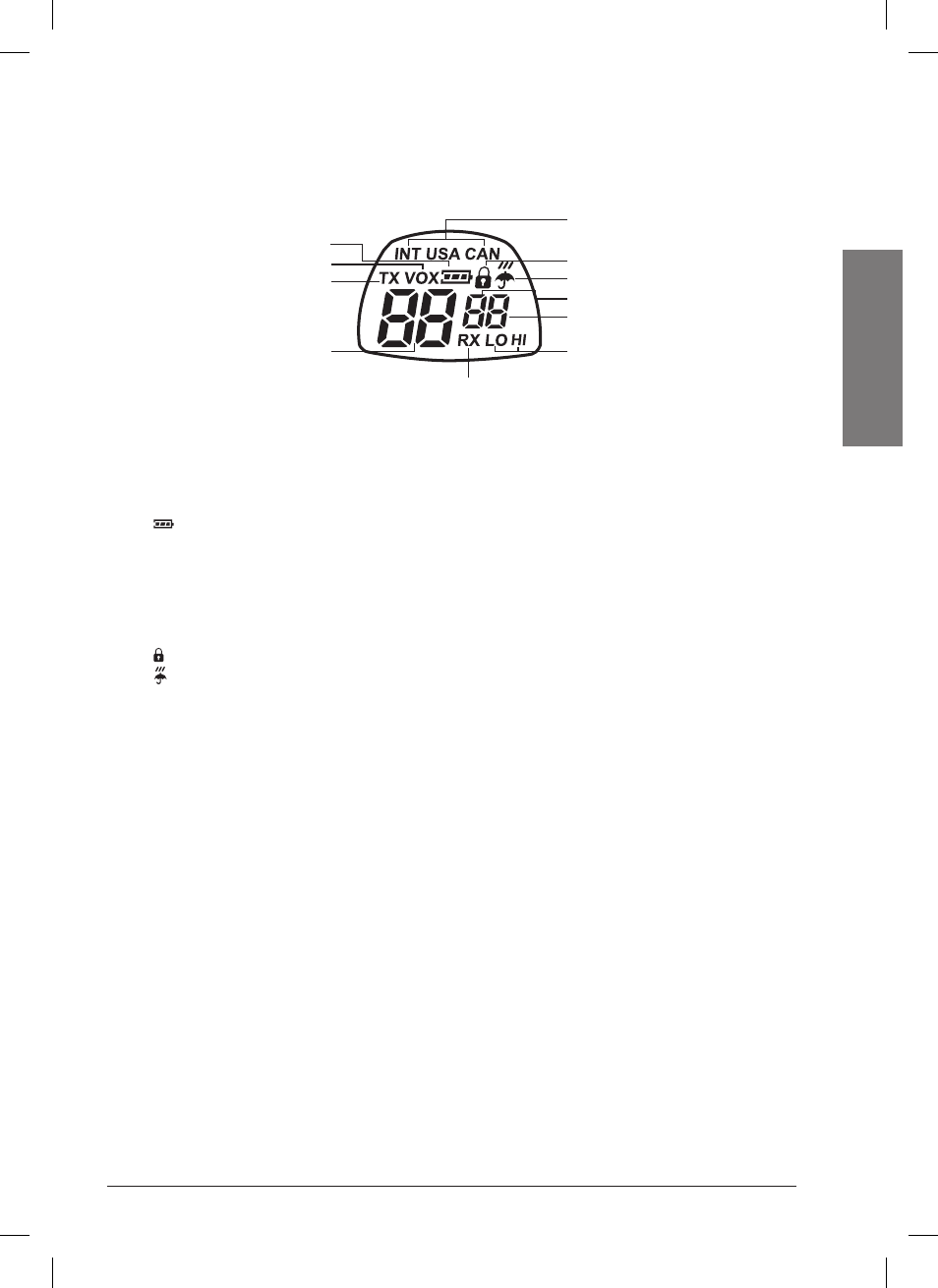

Your marine transceiver keeps you constantly updated about its operational status through a
Liquid Crystal Display (LCD). The symbols and their corresponding parameters that may appear,
according to the operational status of the device, are described as follows:
a. VOX - Activation of VOX function;
b. TX - During transmission (when you press PTT button)
c. : warns you of battery low charge;
d. Channel - These two large digits show the selected marine channel;
e. INT/USA/CAN and the first of the 2 small digits - Specify the frequency band in use (USA
and CAN: can be activated by means of the optional programming software PRG PACIFIC,
but they are for American version only).
e-1 Second small digit - Gives further information with regards to the channel being used (“d”
duplex).
f. - Appears when the keypad lock is activated.
g. - This symbol marks activation of weather information channels ( only for American
version - bands USA and CAN).
h. LO (Low) / Hi (High) – indicates the selected power level.
i. RX - (busy channel): appears when the transmitter is receiving a signal.
