Minuteman H20 Walk-Behind Scrubber Disc Brush Drive User Manual

Page 9

background image

9

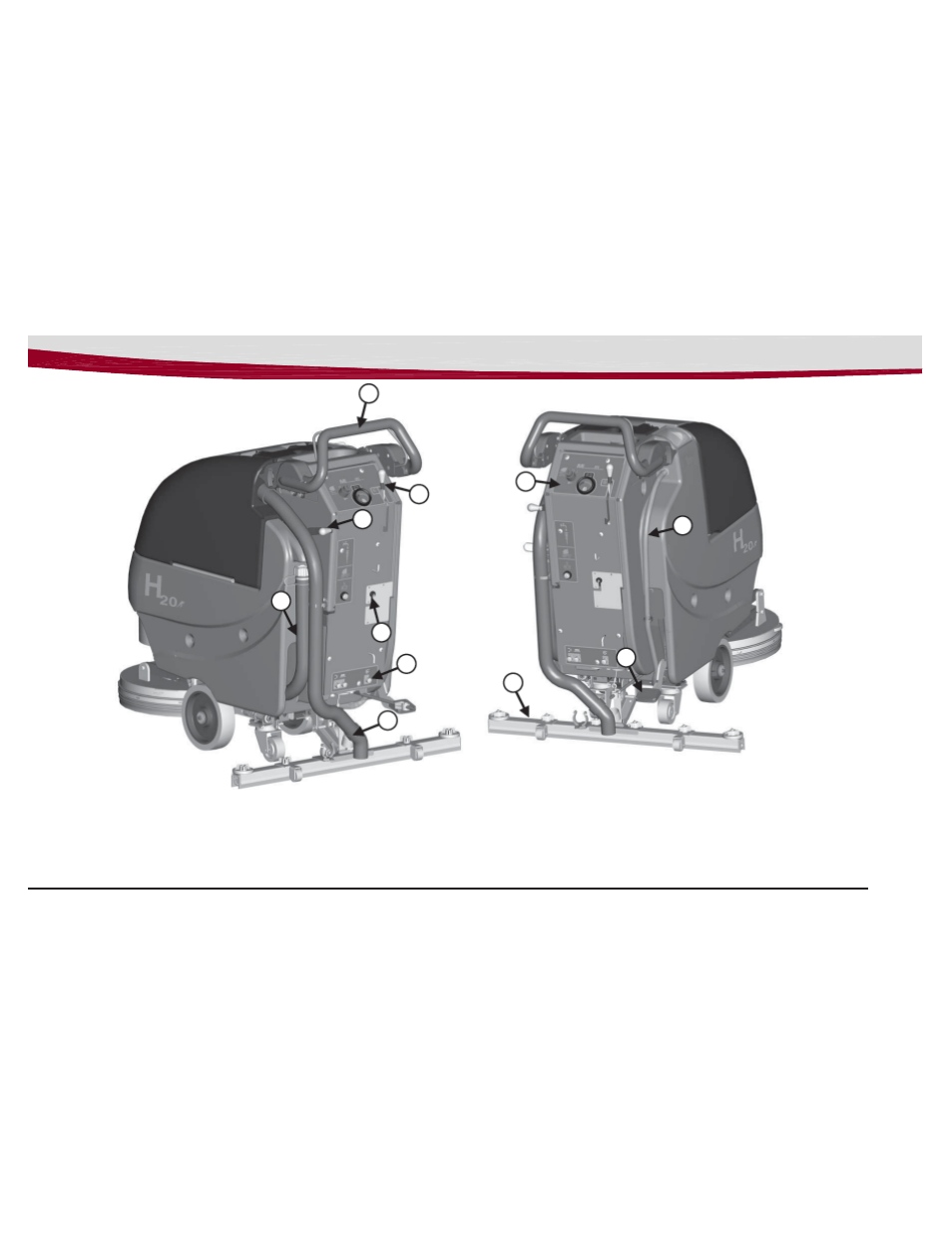

Machine Overview

Machine Overview - Rear

A

B

C

D

G

H

F

E

A

BAIL HANDLE

B

SQUEEGEE LIFT LEVER

C

SOLUTION CONTROL LEVER

D

RECOVERY TANK DRAIN HOSE

E

ONBOARD CHARGER CORD

F

CIRCUIT BREAKERS

G

RECOVERY HOSE

H

CONTROL PANEL

J

SOLUTION TANK DRAIN HOSE / LEVEL INDICATOR

K

BRUSH LIFT PEDAL

L

REAR SQUEEGEE

I

J

K
