Machine Overview
Battery Compartment
Circuit Breakers
A Main Control Breaker - 4A
B Brush Motor Breaker - 30A
C Vacuum Motor Breaker - 20A

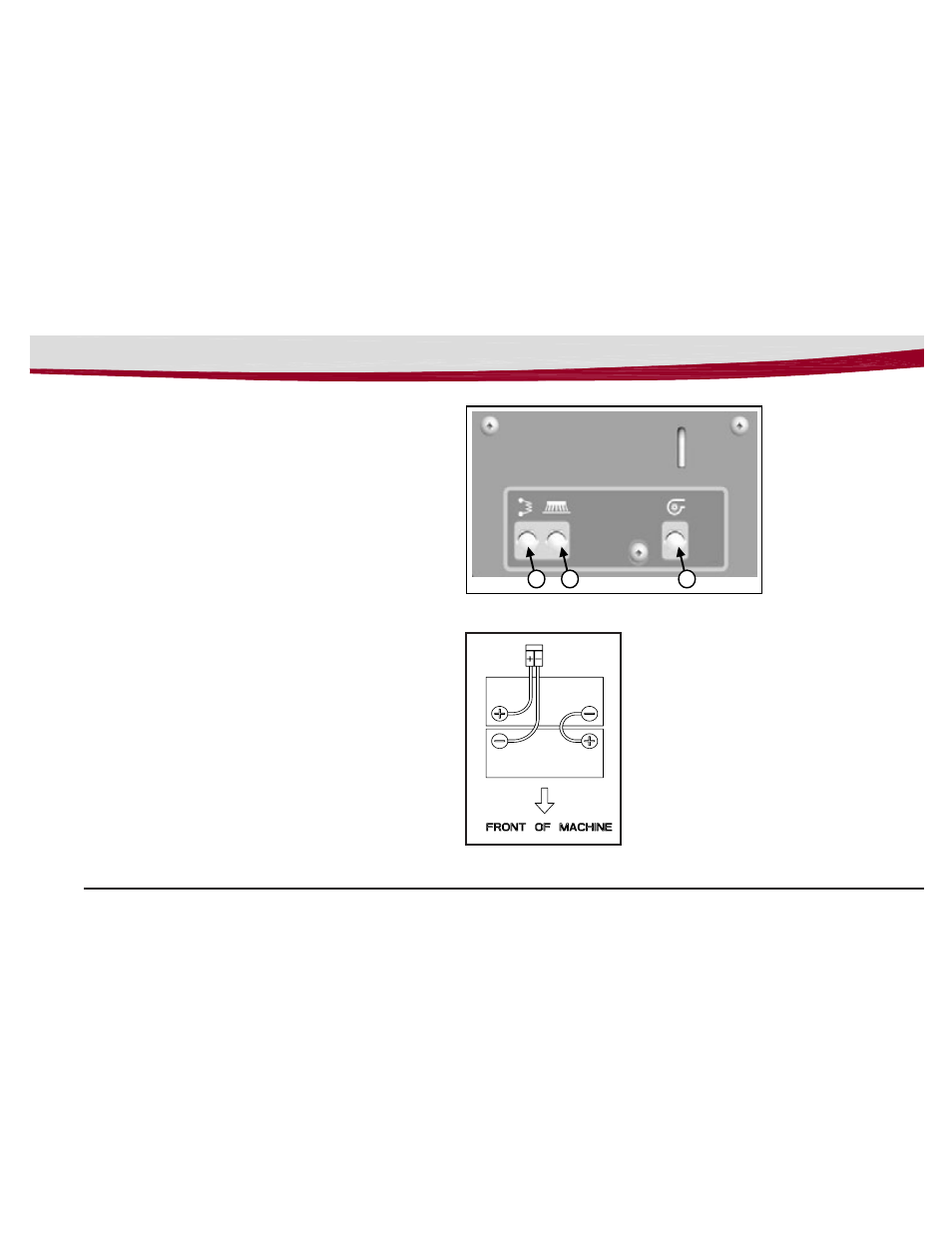

The circuit breaker is located at the bottom of the back panel
of the machine.
B C A
If any of the functions above are not operating, check if the
circuit breaker buttons have tripped. Press to reset.
The battery compartment is located under the recovery tank.
The Battery compartment can be accessed for servicing and
maintenance by tilting the recovery tank (make sure recov-
ery tank has been drained before tilting). The battery com-
partment contains two 12-volt batteries connected in series.
Connect the batteries according to the battery connection
diagram (see diagram). The recommended batteries are
105Ah (Minuteman P/N 956712) or 100Ah (minuteman P/N
956100) Gel. The battery tray may be drained if neccessary
using the orange drain hose located above the rear caster
on the right side of the machine.
