Machine Overview

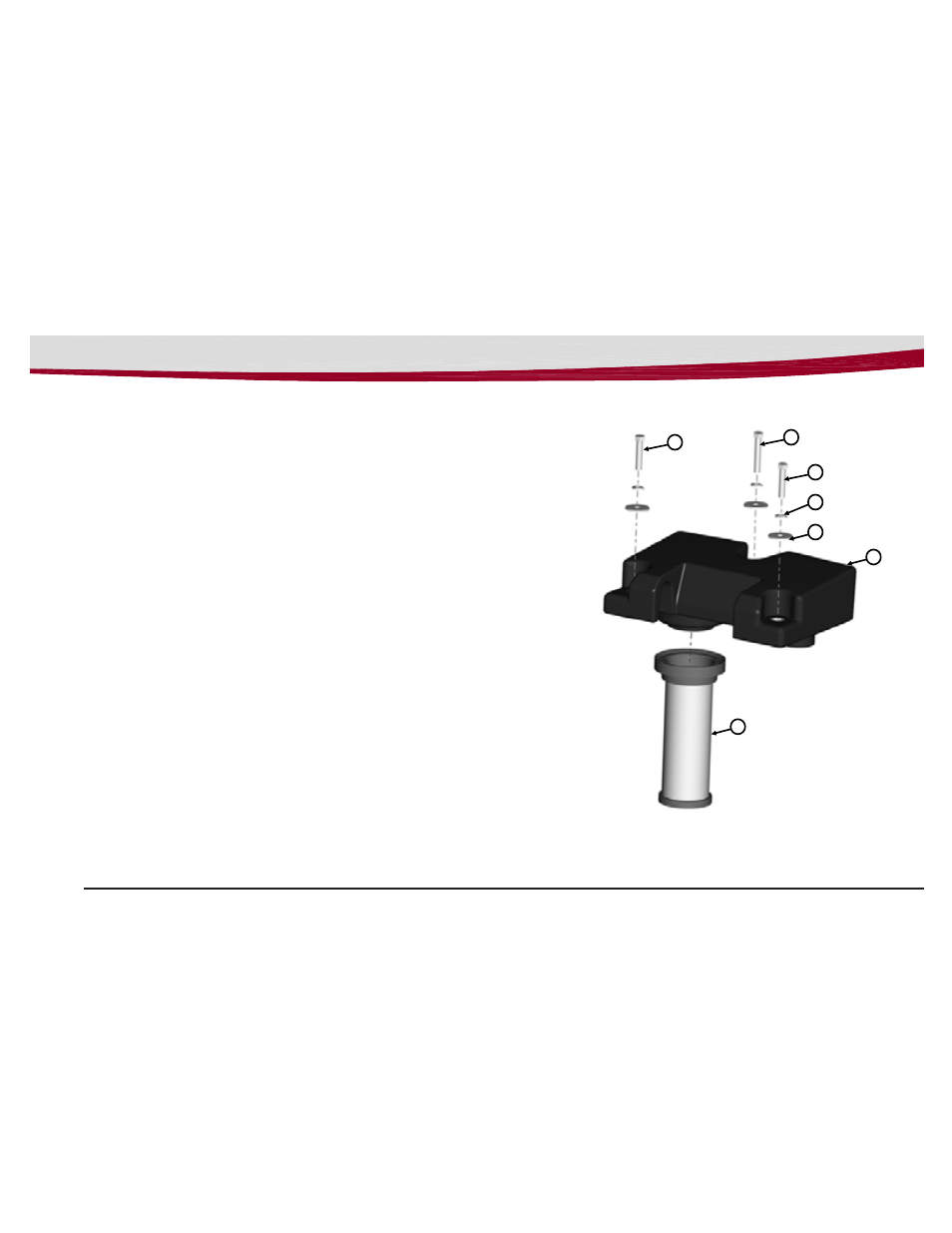

Screened Float Removal
The screened float is positioned between the vacuum manifold (A)
and recovery tank (C). The screened float (B) can be accessed by
removing the 1.5” bolt (D) and two 1.25” bolts (E) that attach the
manifold to the recovery tank using a 7/16” socket.
A
F
B
D
E
A Vacuum Manifold
B Screened Float
C Recovery Tank
D 1.5” Bolt
E 1.25” Bolt (2)
F Helical Washer (3)
G Flat Washer (3)
G
E
