H52
© 2008 AS America Inc.
ELLISSE OVAL™
PREMIUM AIR BATH
HIGH GLOSS
NOTES:
BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND OR PENINSULA TYPE INSTALLATION. SUPPORT
OF BATH BY INTEGRAL FEET. NO ADDITIONAL SUPPORT IS REQUIRED. SUPPORT AND ENCLOSING MATERIAL BY OTHERS.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH BATH FOR ADDITIONAL INFORMATION.
▲ CUTOUT TEMPLATE PROVIDED IN SHIPPING BOX. MAY BE REQUESTED SEPARATELY.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1 / CSA
Certified. These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaflet.

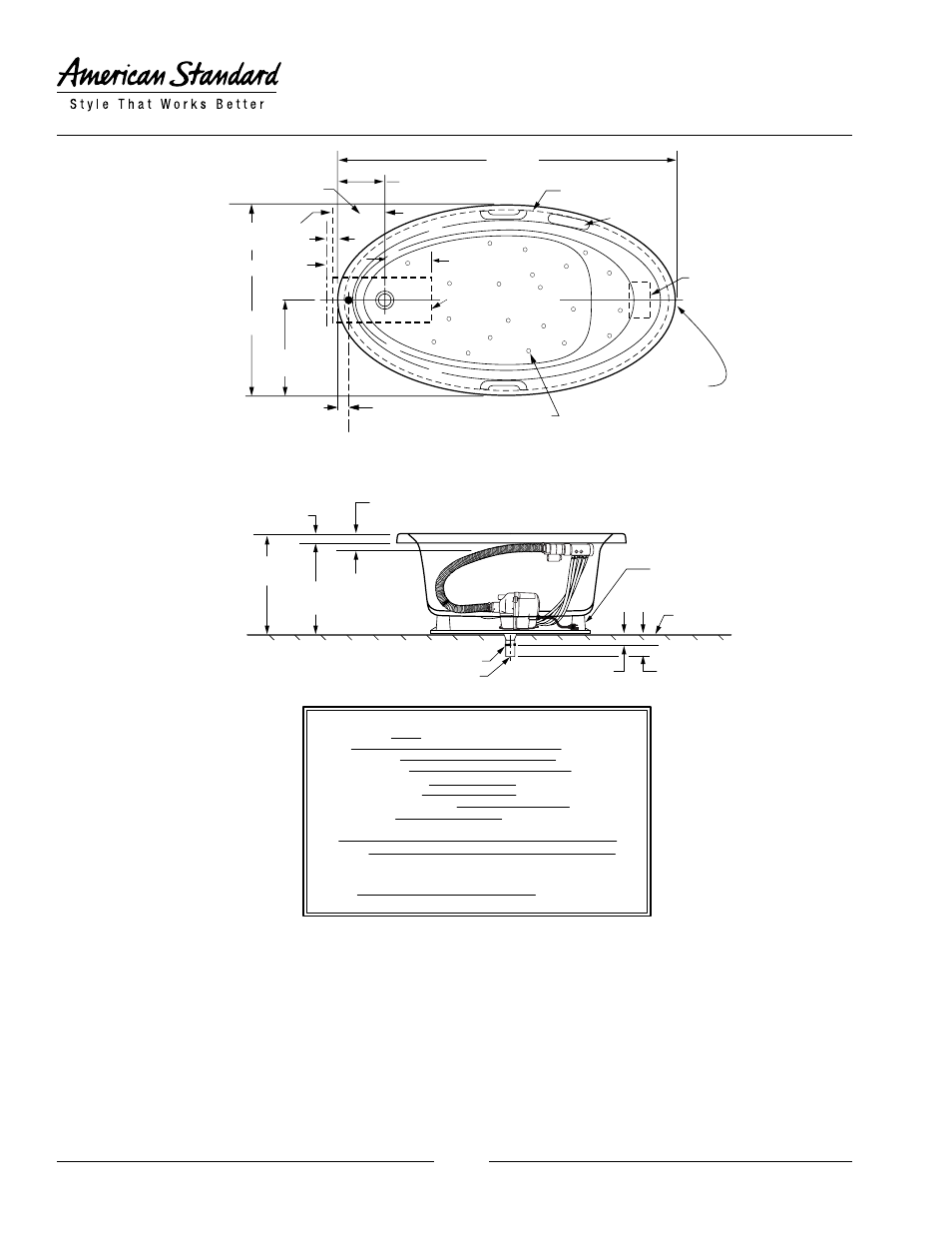

GENERAL SPECIFICATIONS FOR 2709 AIR BATH
69-1/4 x 38-1/2 x 19-3/4 In.(1759 x 978 x 502mm)
107 Lbs. (49 Kg.)
640 Lbs. (291 Kg.)
64 Gal. (243 L)
45 x 23 In. (1143 x 584mm)
63 x 32 In. (1600 x 813mm)
13 In. (330mm)
35 Lbs./Sq.Ft. (166 Kgs./Sq.m)
25.6
49.4
ELECTRICAL SPECIFICATIONS
1.0 HP, 10 AMPS, 120V. BLOWER
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT3)
FLOOR CUTOUT
229 X 459mm
(9" X 19")
1759 mm
(69-1/4")
OUTLINE OF
CUTOUT
240 mm
(9-7/16")
978 mm
(38-1/2")
489mm
(19-1/4")
76mm
(3") CL OF DRAIN
OUTLET
PROVIDE ACCESS
TO BLOWER FOR
SERVICING ON ALL
INSTALLATIONS
16 AIR JETS
AIR
BLOWER
SEE FTTG.SPECS
FOR DIMENSION
CLOF SUPPLIES
CONTROL
PANEL
11-1/4"
(286mm)
7-3/4" TYPICAL
(197mm)
ROUGH
FLOOR
1-1/2" O.D. TAILPIECE
495mm
(19-1/2")
INTEGRAL FEET
WITH ATTACHED
BASEBOARD
86mm (3-3/8") 38mm
(1-1/2")
533mm
(21")
1-1/2" N.P.T.M. THREADS
35mm
(1-3/8")
98mm
(3-7/8")
CL TO OVERFLOW
Rev. 2/08
