791116-100 Rev. F
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE
AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.

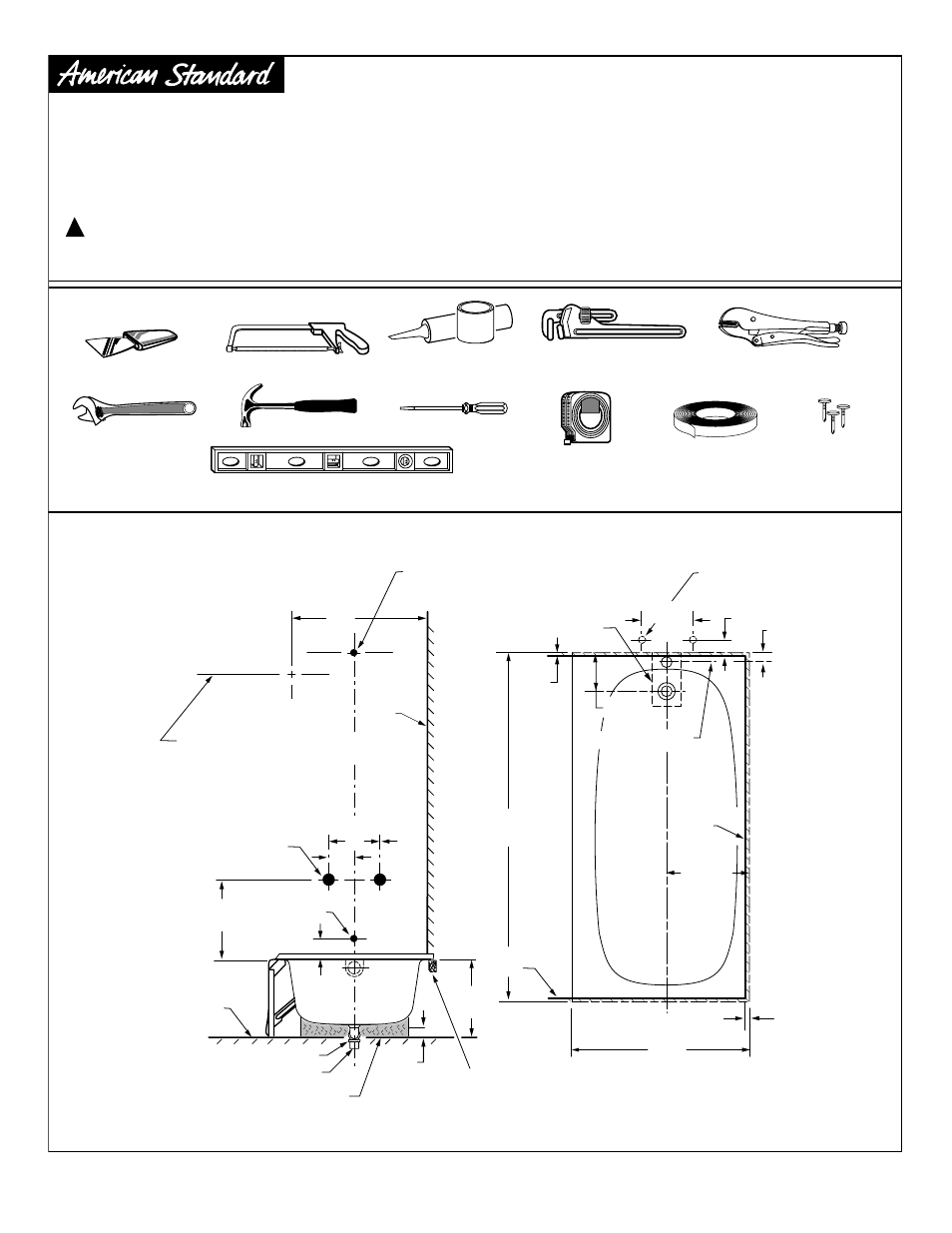

Tub Installation Instructions
0153/0155 Series
Introduction: Thank you for selecting our products...products which have been the benchmarks of fine quality for years.
To help insure that the installation process will proceed smoothly, please read these instructions carefully before you
begin. Also, review the recommended tools and materials list; carefully unpack and examine your new plumbing fixture.
Recommended Tools & Materials
Observe Local Plumbing and Building Codes
Adjustable Wrench
Regular Screwdriver 10'
Pipe Wrench
Putty Knife
Tape Measure
Hacksaw
762mm
(30)
1524mm
(60)
19mm
(3/4)
19mm
(3/4)
365mm
(14-3/8)
197mm
(7-3/4)
13mm
(1/2)
305mm
(12)
102 (4)
102
(4)
102mm
(8)
356mm
(14)
229 x 305mm
(9 x 12") CUTOUT
FINISHED
WALL
1-1/2 N.P.T.M. THREADS
1-1/2 O.D. TAILPIECE
C/L OF VALVES
(44mm [1-3/4"]
DIA. HOLES)
SPOUT
1/2" S.P.S.
ROUGH
FLOOR
PLUMBER NOTE:
PROVIDE SUITABLE FULL LENGTH
SUPPORT AT THIS POINT.
OPTIONAL TO FINISHED TO FINISHED
FLOOR (USUALLY BETWEEN 1651 to
1981mm ( 65" & 78')
C/L OF SHOWER CURTAIN ROD
(USUALLY 1930mm (76")
FROM FIN. FLOOR)
1/2 S.P.S. OR 1/2"
C.W.T. SUPPLIES
FINISHED
WALL
FINISHED
WALL
C/L OF DRAIN
SHOWER 1/2" S.P.S.
NOTE: NO CONCEALED
PIPING FURNISHED
SUMP PAD
LEFT HAND TUB IS ILLUSTRATED. RIGHT HAND TUB IS REVERSED.
Level
Roofing Nails
(Drain Assembly and Fitting Purchased Separately)
Plumbers' Putty
or Caulking
Vice Grips
Teflon Tape
DIMENSION SHOWN FOR OUTLET IS SUGGESTED *
*
711mm
(28)
203mm
(8)
76mm
(3) 57mm
(2-1/4)
Hammer
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c .
Roughing-in Dimensions
