92902-93

2051F Conversion Instructions for Foxboro SPEC 200

2

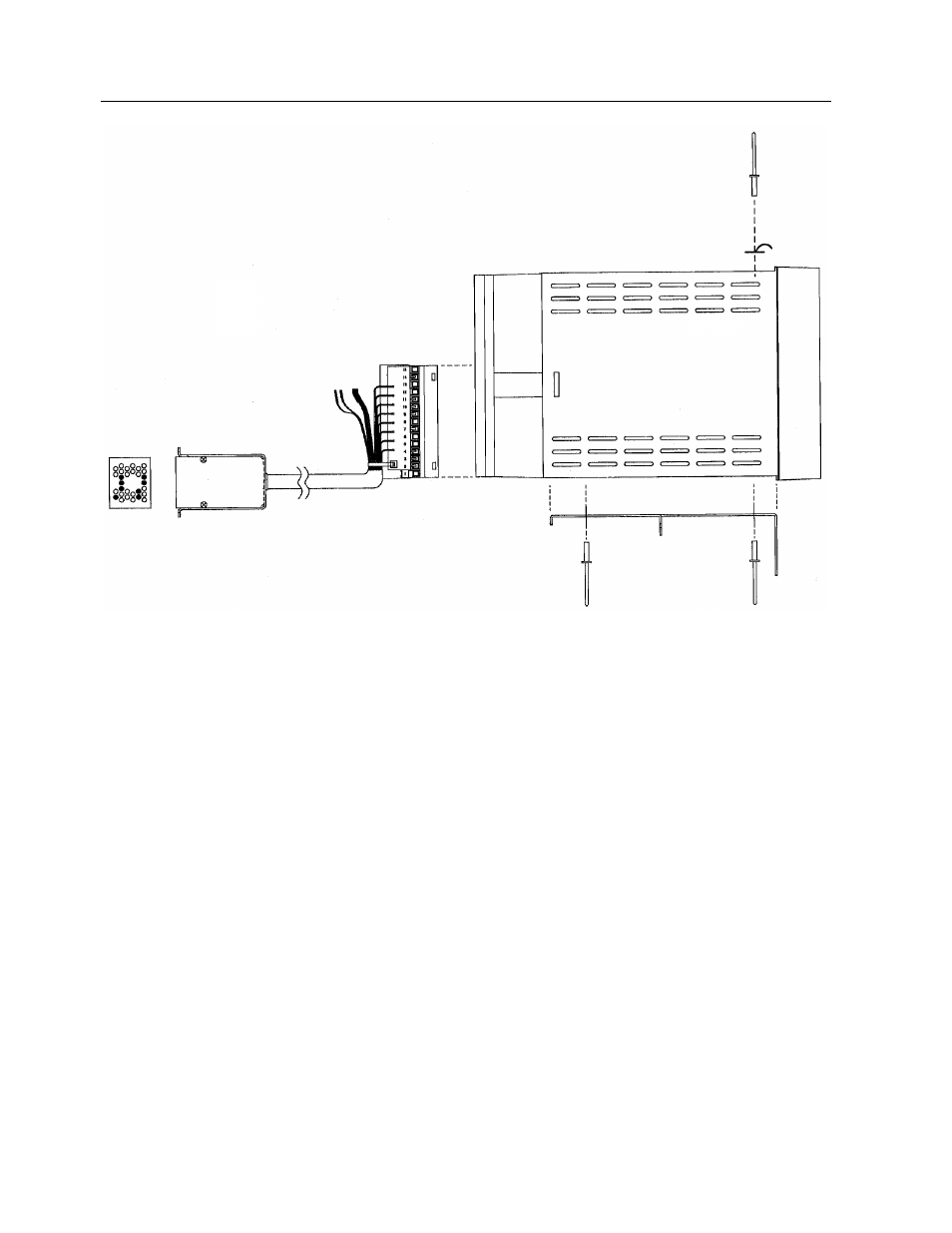

Figure 1. 2051R with Direct Connect Cable

SPEC 200 DIRECT CONNECT CABLE INSTALLATION

1.

If field wiring is to be connected directly to the back of the MODCELL 2051 instrument,
proceed directly to Panel Installation. Terminate field connections describe in the I/O
instructions in IB-23C650-_._. If the intermediate installation is being employed, continue
with steps 2 through 9.

2.

Remove the termination cover from the back of the MODCELL 2051.

3.

Insert the termination end of the direct connect cable into the lower left termination block as
shown in Figure 2. With the cable facing down, the lowest pin of the terminator should be
inserted in terminal position NO. 2. Tighten all termination screws on the associated pins of
the terminator.

4.

Dress the cable down and out the bottom of the termination assembly. Using the Tyrap
provided, secure the cable to the termination cover post as shown in Figure 2.

5.

Replace the termination assembly cover and tighten in place.

6.

Apply power to the MODCELL 2051R.

7.

Enter the "Base Config **Menu**" (see IB-23C650-_._), select "volt" as the input type for the
process input.
