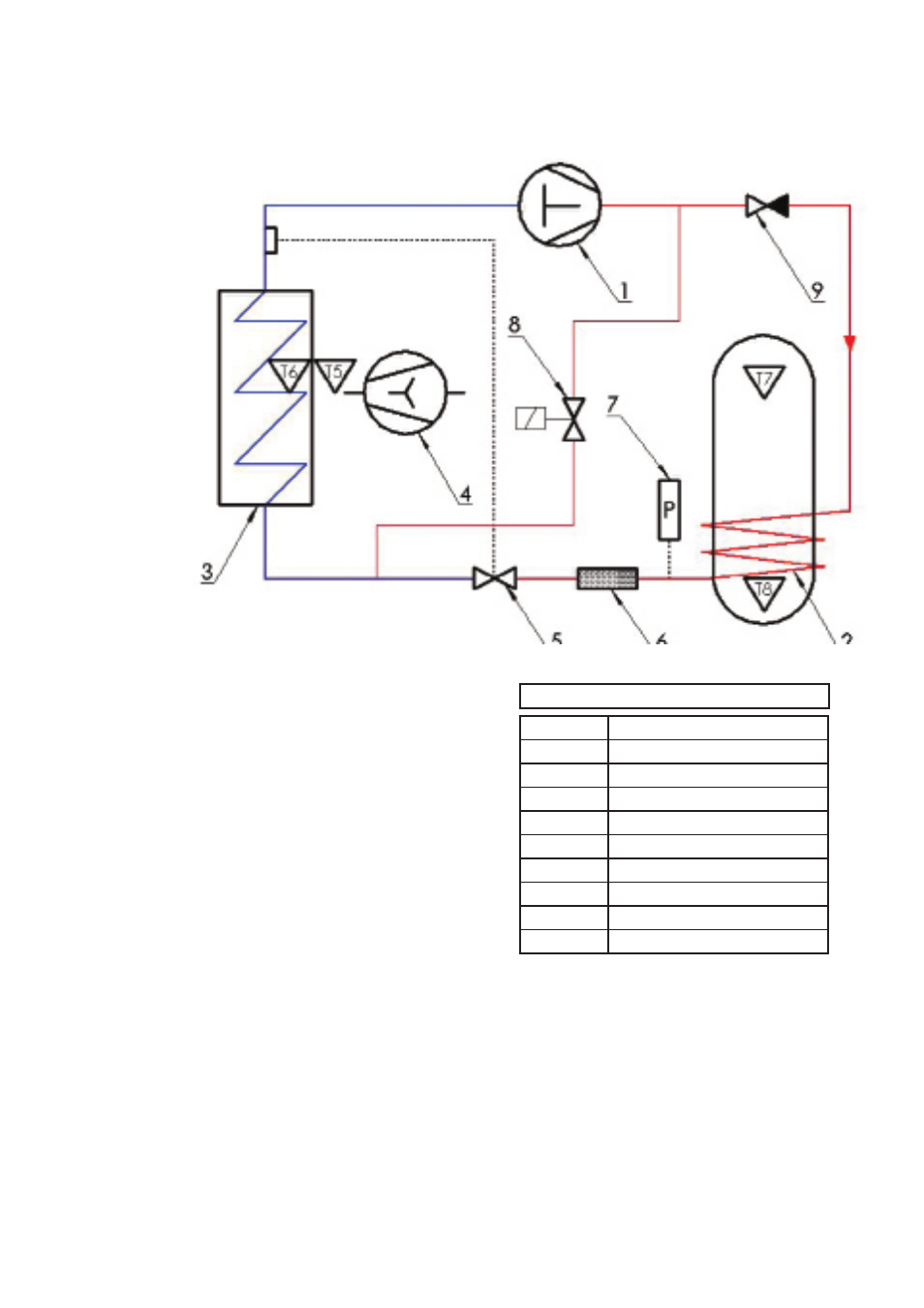

1.4.4 Refriferant circuits

T5, T6, T7, T8 - Sensors

Component overview

Nº :

Description

1

Compressor

2

Condenser

3

Vaporiser

4

Centrifugal fan

5

Expansion valve

6

Drying filter

7

Pressure switch

8

Magnetic valve

9

One-way valve
