DS Series
REMOTE CONSOLE ACCESS SERVERS
Specifications
Base Unit
DS3, DS6, DS9 supports one host module
plus two, five, eight peripheral communica-
tions modules
POWER REQUIREMENTS:
DS3, DS6, DS9: 115 VAC 50/60 Hz, 15
Amp; 220 VAC 50/60 Hz, 10 Amp
INDICATORS:
1 green power LED
LOGICAL RECEPTACLE NAMING:
Programmable up to 16 characters.
Default: Device A for port 1... Device D for
port 4
ENVIRONMENT:
0° to 70°C temperature; 5% to 95%
humidity
DIMENSIONS:
DS3: 16 3/4”w x 7 1/8”d x 1 3/4”h
DS6: 16 3/4”w x 7 1/8”d x 2 5/8”h
DS9: 16 3/4”w x 7 1/8”d x 3 1/2”h
MOUNTING:
19" or 23" Rack-mount or desktop.
WARRANTY:
Two year parts and labor
Model Number Number of
Slots
Built-in Modem In-Band, Telnet
Support
Maximum Console
Ports
DS3 3 DS71-MD4,
DS62-MD4
DS71, DS62 8 with (2)DS74s
DS6 6 DS71-MD4,
DS62-MD4
DS71, DS62 20 with (5) DS74s
DS9 9 DS71-MD4,
DS62-MD4
DS71, DS62 32 with (8) DS74s

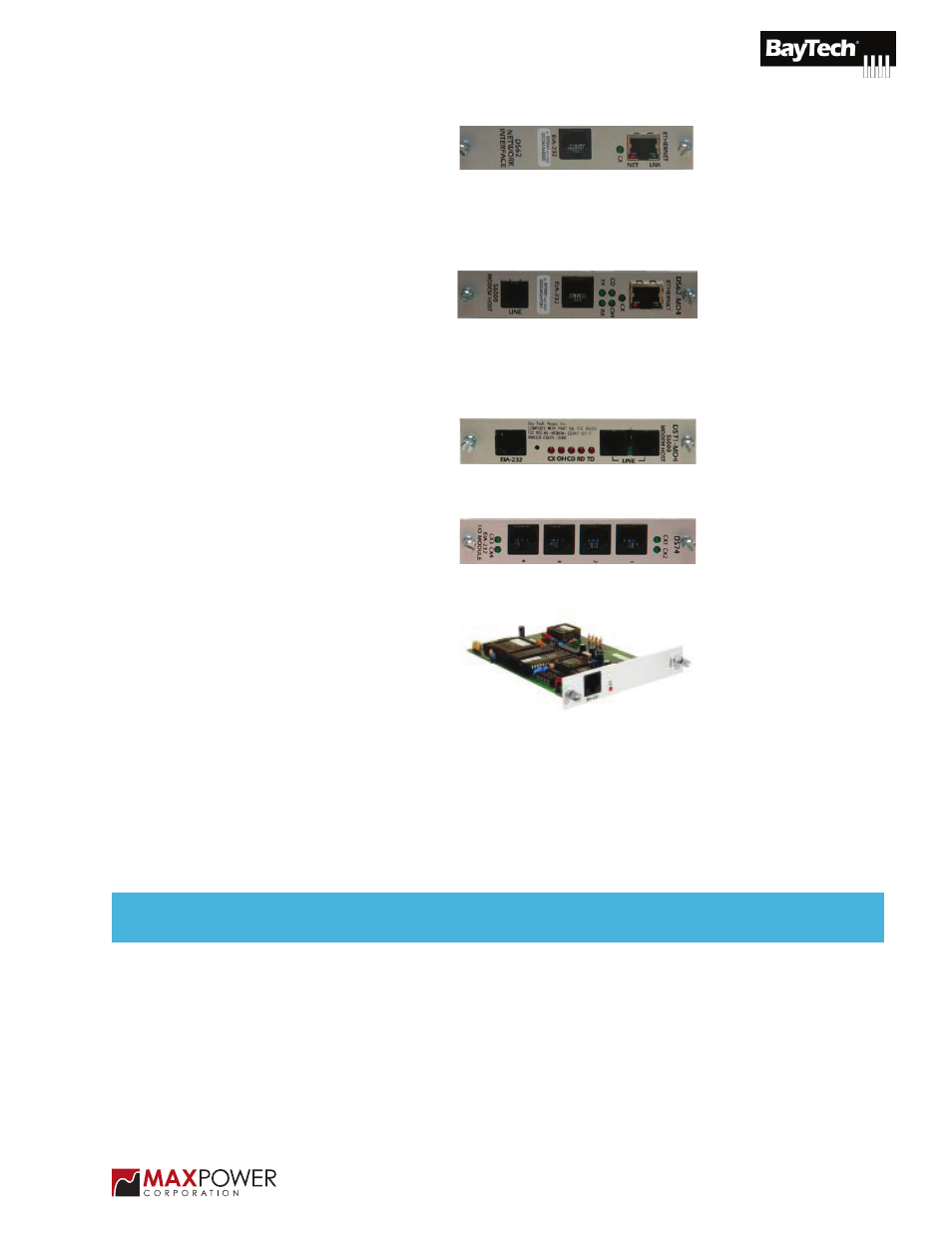

DS62 HOST Module
RS232 port for local serial access or
external modem. Ethernet connec-
tion: 100Base-TX and 10Base-T;
SNMP, RADIUS?TACACS+, SSH/
SSL, Menu Password, Web control
of PDU outlets,
DS62-MD4 HOST Module
RS232 port for local serial access or
external modem. Ethernet connec-
tion: 100Base-TX and 10Base-T;
SNMP, RADIUS?TACACS+, SSH/
SSL, Menu Password, Web control
of PDU outlets, and 56K internal
modem.
DS71-MD4 HOST Module
RS232 port for local serial access or
external modem and 56K Internal
Modem.
DS74 Peripheral Module
Four RS232 port for serial access to
multiple devices
DS71 HOST Module
RS232 port for local serial access
Due to the amount of data transferred for each Baytech Modu-
lar power strip, Baytech recommends the DS3 to control a
maximum of (6) Modular power strips. Baytech older units,
RPC and RPS series can control up to the Maximum Console
Ports of the chassis Model Number.
