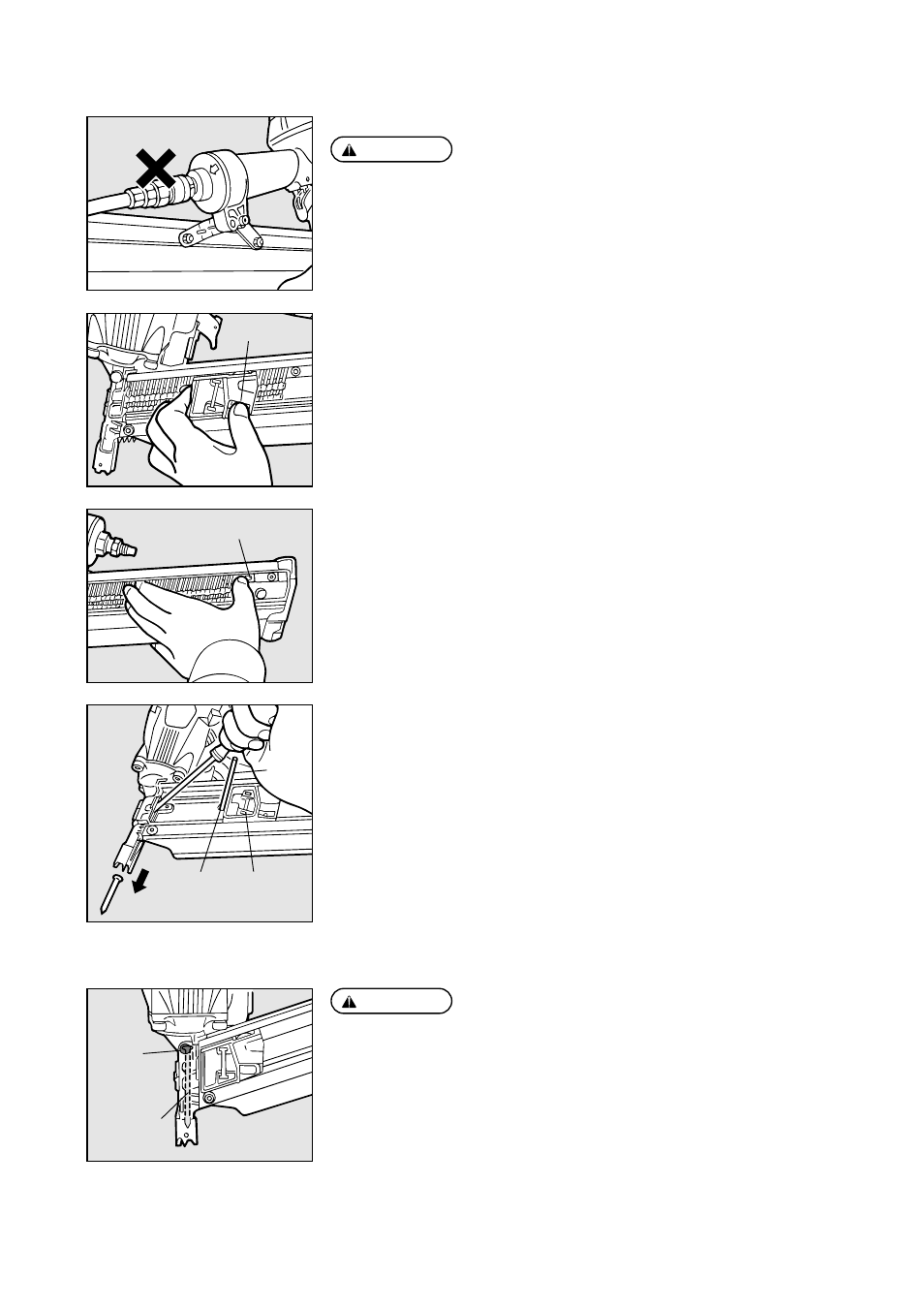

REMOVING JAMMED NAILS
ALWAYS disconnect air supply before removing jammed nails.
WARNING:
e
Pull and stayed the Pusher back using the hole and a rod.
r
Remove the jammed nail from the Nose using a punch or a slotted screw driver.
15
Pusher
q
Push the Pusher Lever and release the strip nails from the Pusher.
w
Push the Nail Stopper, and remove the strip nails from inside of the Magazine.
Rod
Hole
Nail Stopper
This tool equips a magnet in the Nose to drive out all nails loaded in the Magazine.
Therefore, in the case the collation strip is broken, there are nails remaining in the Nose
even if you think that you removed whole nails. In this case, there is possibility of
serious accident if you think that there are no nails and activate the tool. For that
reason, when you remove the nails from the Magazine, confirm that there are no nails in
the Nose besides disconnect air supply.
Magnet
Pusher Lever
Remaining nail
●
Nails are held in the Nose of the tool by magnet. (SN883RH)
WARNING:
