14

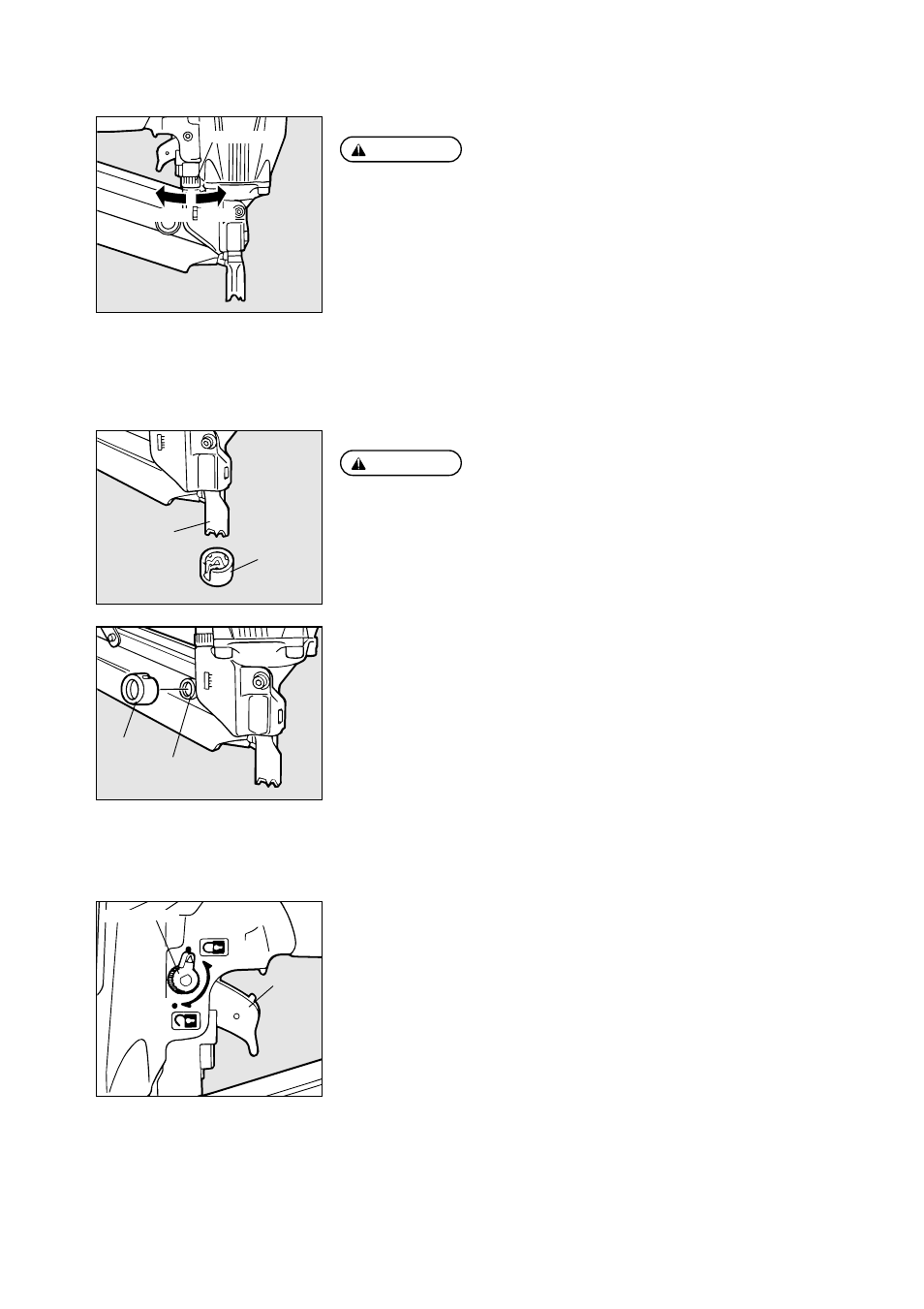

CONTACT TIP (OPTION)
ALWAYS disconnect air supply before attaching / detaching the Contact Tip.
Attach the Contact Tip on the tip of Contact Arm “B”, when driving nails to a soft
material.
The Contact Tip can be kept at the Arm Cover when not using.
WARNING:
Contact Arm “B”
Contact Tip
Arm Cover
Contact Tip
LOCK
UNLOCK
TRIGGER LOCK MECHANISM
The tool is equipped with a Trigger Lock Mechanism. Push and rotate the Trigger from
LOCK to the Trigger UNLOCK position before driving nails.
Trigger Lock Dial
Trigger
DRIVING DEPTH ADJUSTMENT
ALWAYS disconnect air supply before making adjustment.
The driving depth adjustment is made by adjusting the Adjustment Dial.
q
With air pressure set, drive a few nails into a representative material sample to
determine if adjustment is necessary.
w
If adjustment is required, disconnect air supply.
e
Refer to the mark on the Contact Arm area for direction to turn the Adjustment Dial.
r Re-connect air supply.
WARNING:
Adjustment Dial
Deeper Shallow
