MAP Technology
2 PN 89-00002-00-104 Rev. A

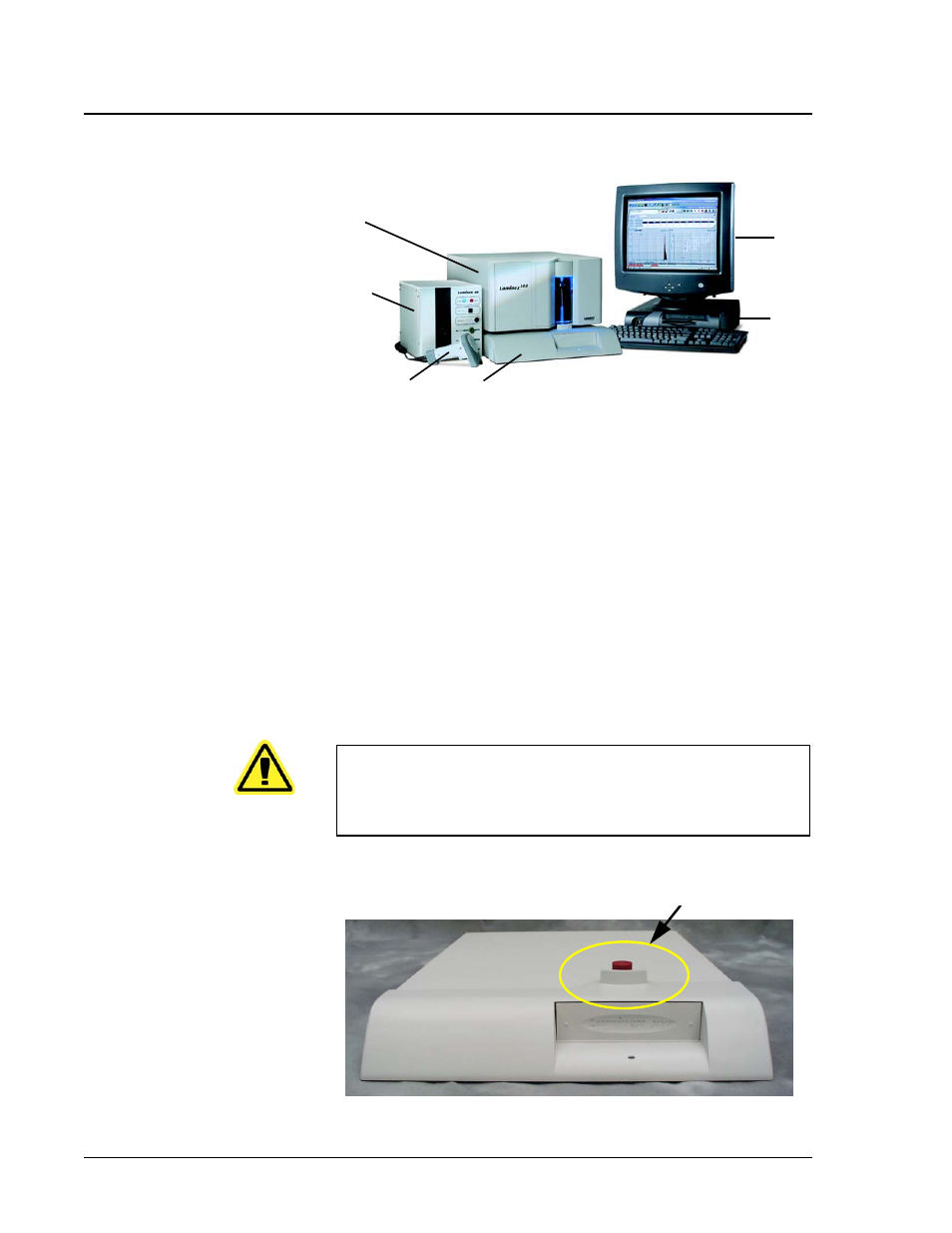

Figure 1 Luminex 100 IS System Setup
Connect System
Components
‹
To connect the system components:
1. Install the PC and monitor according to the instructions provided
by the PC manufacturer. Place the monitor on top of the PC.
2. Unpack the Luminex ® 100 ™ analyzer, the Luminex ® XYP ™
instrument, the Luminex ® SD ™ system (optional) (you connect
the Luminex SD in a user manual procedure), and barcode
reader. Refer to “Hardware Components” on page 8 for a list of
system components.
3. Place the Luminex XYP instrument on a clean, flat surface to the
left of the PC.
Figure 2 Remove Red Shipping Pin
1. Monitor 4. Barcode Scanner
2. PC 5. Luminex SD system (optional)
3. Luminex XYP Instrument 6. Luminex 100 Analyzer
1
2
6
5
4 3
Note: The PC will be positioned
to the right of the analyzer as
Figure 1 shows. Allow sufficient
space to the left of the PC for the
analyzer.
Caution: Due to the weight of the analyzer, use two people for
lifting. Avoid rough handling or excessive jostling of the Luminex
100 analyzer. Do not place the PC or monitor on top of the
Luminex 100 analyzer or XYP instrument.
