Injection head – Magnum Venus Plastech Megaject MKIV Revision 1_2 User Manual
Page 4
Megaject MK IV Issue 1_2 25/11/2003
Page 4 of 31

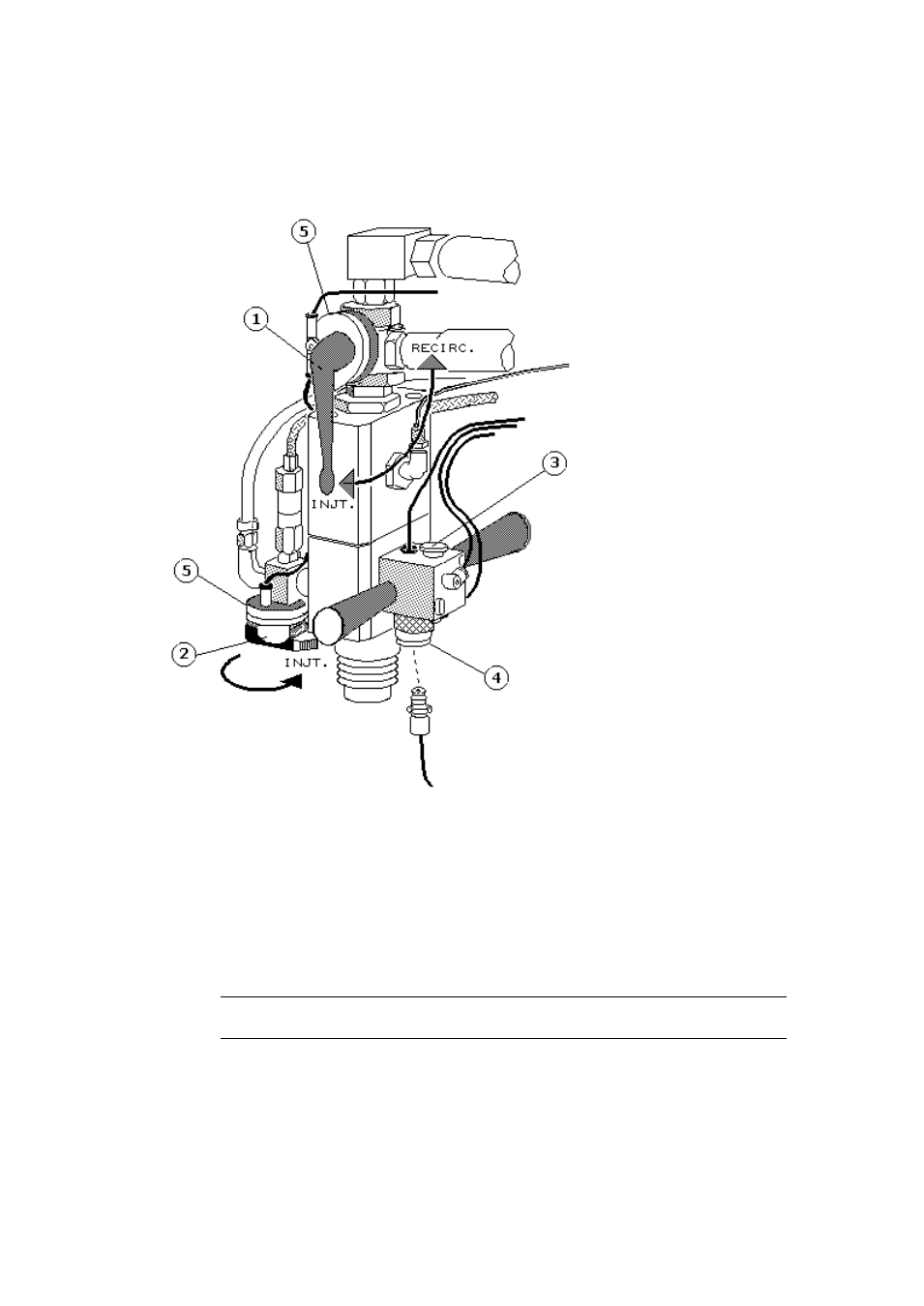

Injection Head
1. Resin recirculation valve. Swaps the resin stream between the injection and
the recirculation position. (90° movement)
2. Catalyst recirculation valve. Swaps the catalyst stream between the injection
and recirculation positions. (180° movement)
Note: Recirculation valves must be turned to their full extent for correct
operation i.e. 90° for resin and 180° for catalyst
3. Thumb Start Switch. Used to start machine for injection. Will only operate
when recirculation valves are in the injection position.
4. Autosprue Connector (for use with Autosprue option only)
5. Resin and Catalyst Interlock Switches. Check that both resin and catalyst
recirculation valves are in the inject position.
