VPH–10000 Powerhead Manual
Rev. 05/2012 Page | 21
Pilot Valve Rebuild:
NOTE: The two pilot valves in the upper and lower end caps are the same. Start
with the pilot valve in the upper end cap.
1. Remove the Spring housing (MPH-2541) from the Upper end cap (VPH-10002).
Remove Spring (MPH-2533) with Inlet Rod (MPH-2540). Turn the End Cap over and
a small Spring (MPH-2526) will fall out. (See Figure 5)
2. Replace O-ring (O-B-012) on the Spring Housing (MPH-2541) and the O-ring (O-U-
006) on the Inlet Rod (MPH-2540). Coat O-rings and Springs with SUPERLUBE
grease (SUPERLUBE). Set Spring (MPH-2533) into the Spring Housing (MPH-2541)
with Inlet Rod (MPH-2540) facing up.

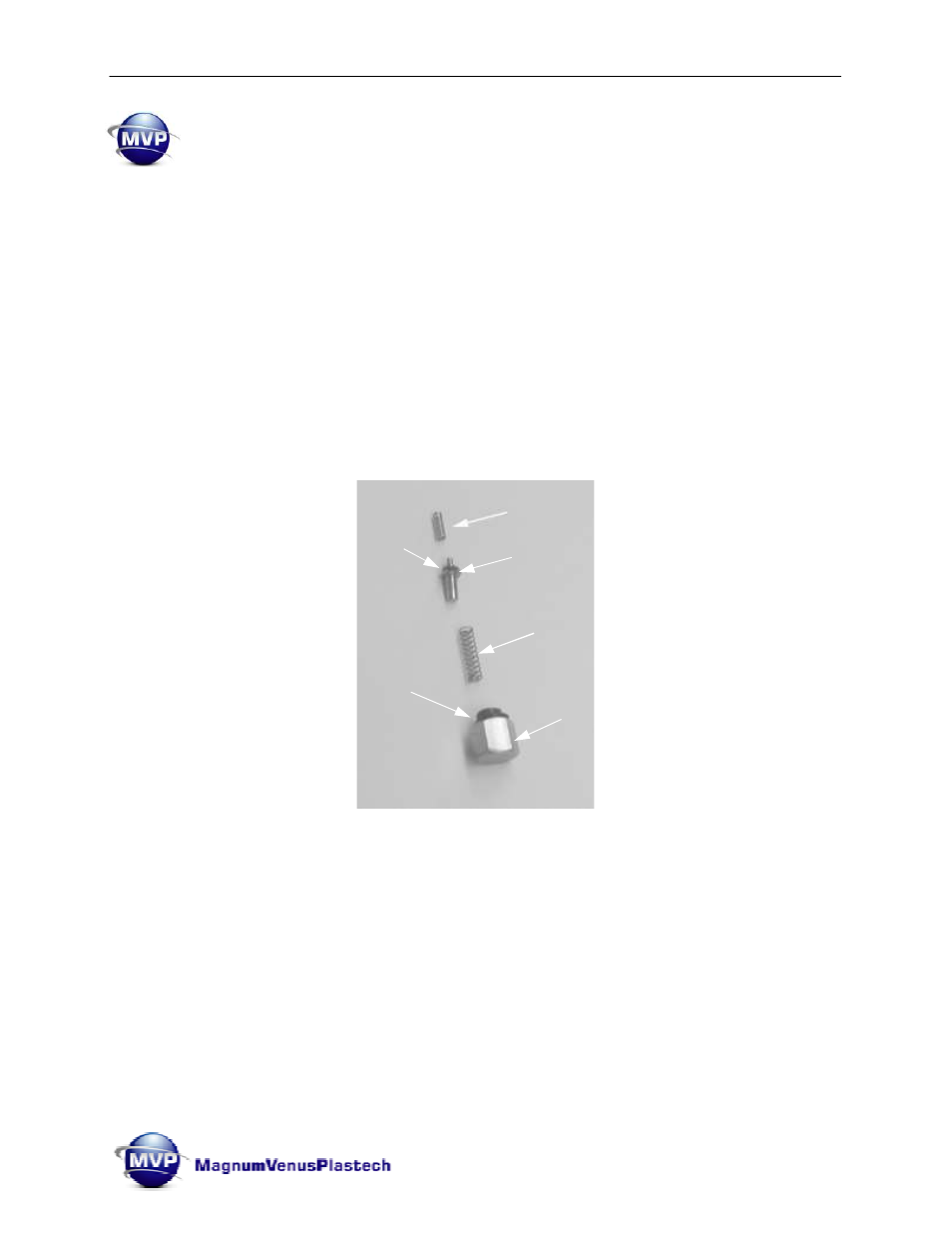

Figure 5
The MPH-2526 spring will be installed
from the bottom of the end cap.
NOTE: Do not install the small Spring (MPH-2526) at this time.
3. Screw the Inlet Spring Housing (MPH-2509) into the Upper End Cap.
MPH-2526 Spring
MPH-2533 Spring
MPH-2540 Inlet Rod
MPH-2541 Spring Housing
O-B-012 O-Ring
O-U-006 O-Ring
