6. Install the Valve Exhausts (MPH-5009) onto the Upper and Lower Valve Blocks. One
side of the Valve Exhausts has three holes, one of the holes must line up with the
machined holes in the Upper and Lower Valve Block. (See Figure 4)
7. Install the two Socket Head Cap Screws (FCS- 04C-08-SS) into each of the two
Valve Exhausts and snug tight.

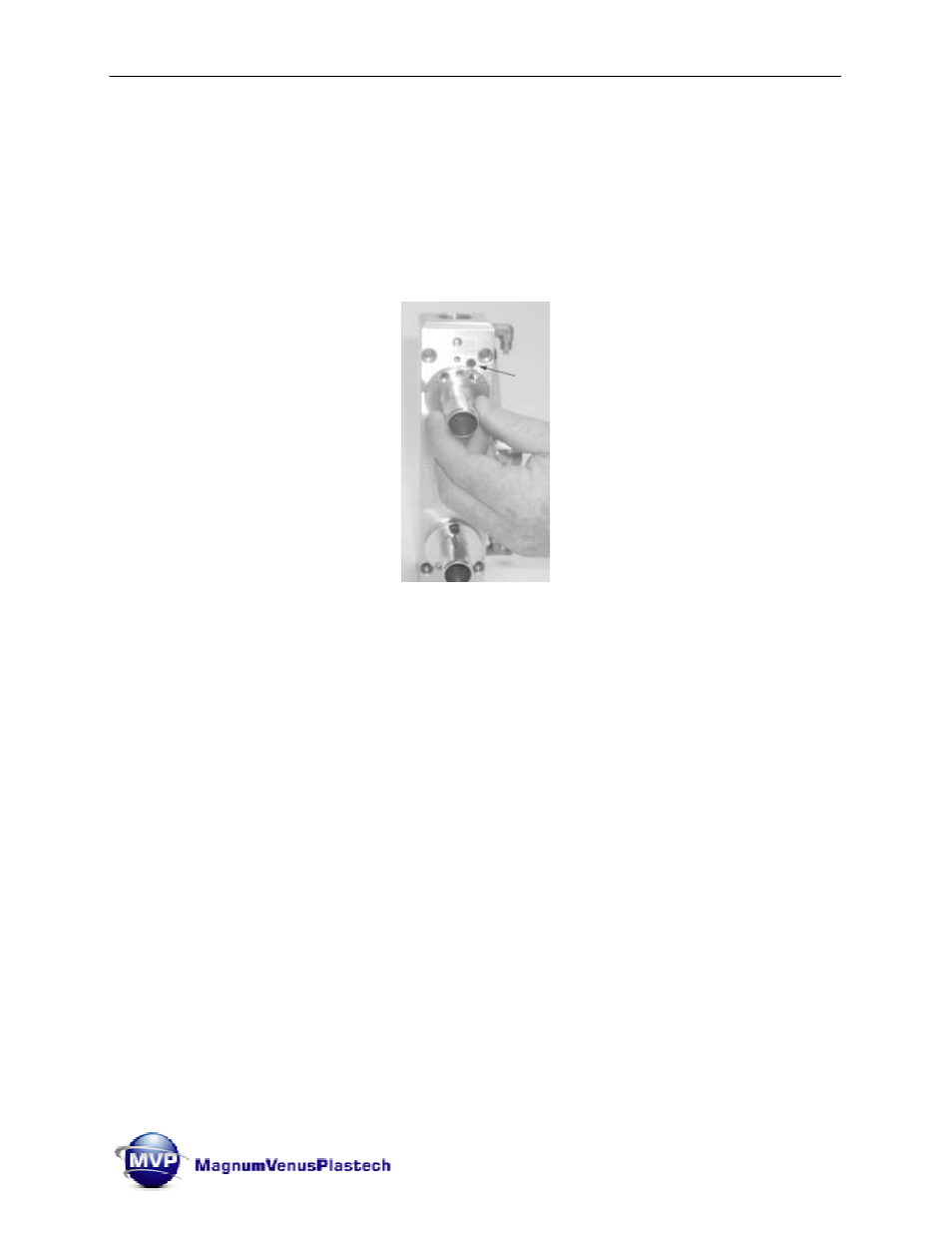

Figure 4
Do not block the hole in the valve
block when installing the valve exhaust.
8. Install Valve End Caps (MPH-2521) into the Upper and Lower Valve Blocks and
lightly snug tight.
Do not block hole
