FRP SystemOne
Gelcoat
SystemOne Reassembly of
FS1.29S1 Gelcoat Fluid Section
1. Insert the ten 9203-1-2 (Wave Springs) into the 3102-6-1 (Outlet
Body).
2. Use Venus-Gusmer 6706-2-1 (White Grease) to fill the female side
of each of the four 3102-4-01 (Packings) and the 3102-3-1 (Female
Comp Ring).
3. Place the 3102-4-01 (Packing Set Assy) on top of the 3102-5-1
(Male Comp Ring). Set the 3102-3-1 (Female Comp Ring) on to of
the Packing Set. Insert this assembly into the 3102-6-1 (Outlet
Body) with the female side of the packings facing down. See fig. 3.1.
4
Chapter
3

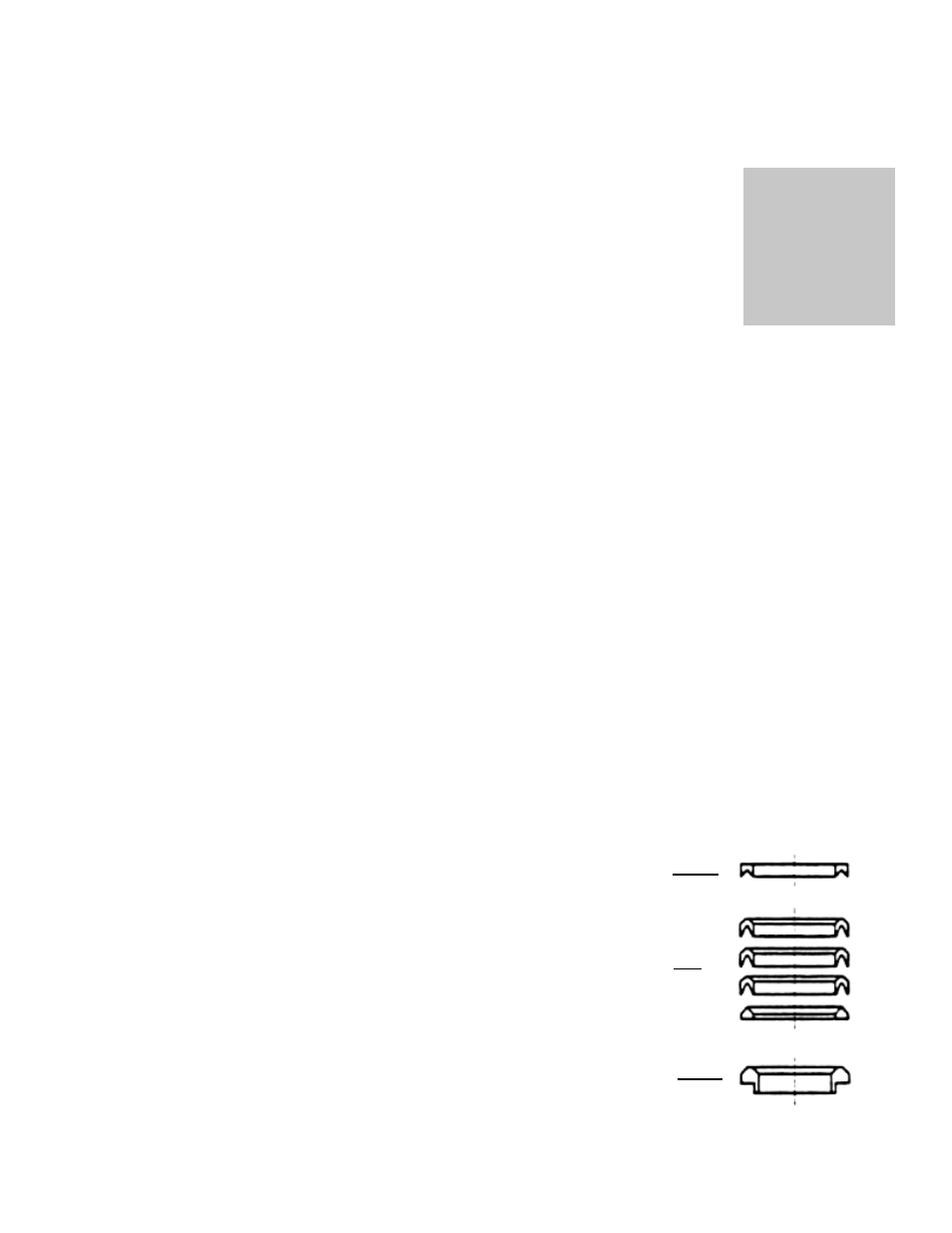

Fig. 3.1
Packing Set
Female Comp Ring
3102-3-1
Piston Rod Pack Spa
3102-4-01
Male Comp Ring
3102-5-1
{
