PAT-LS-24050 Series Fluid Section Manual

Rev. 01/2012

Page | 25

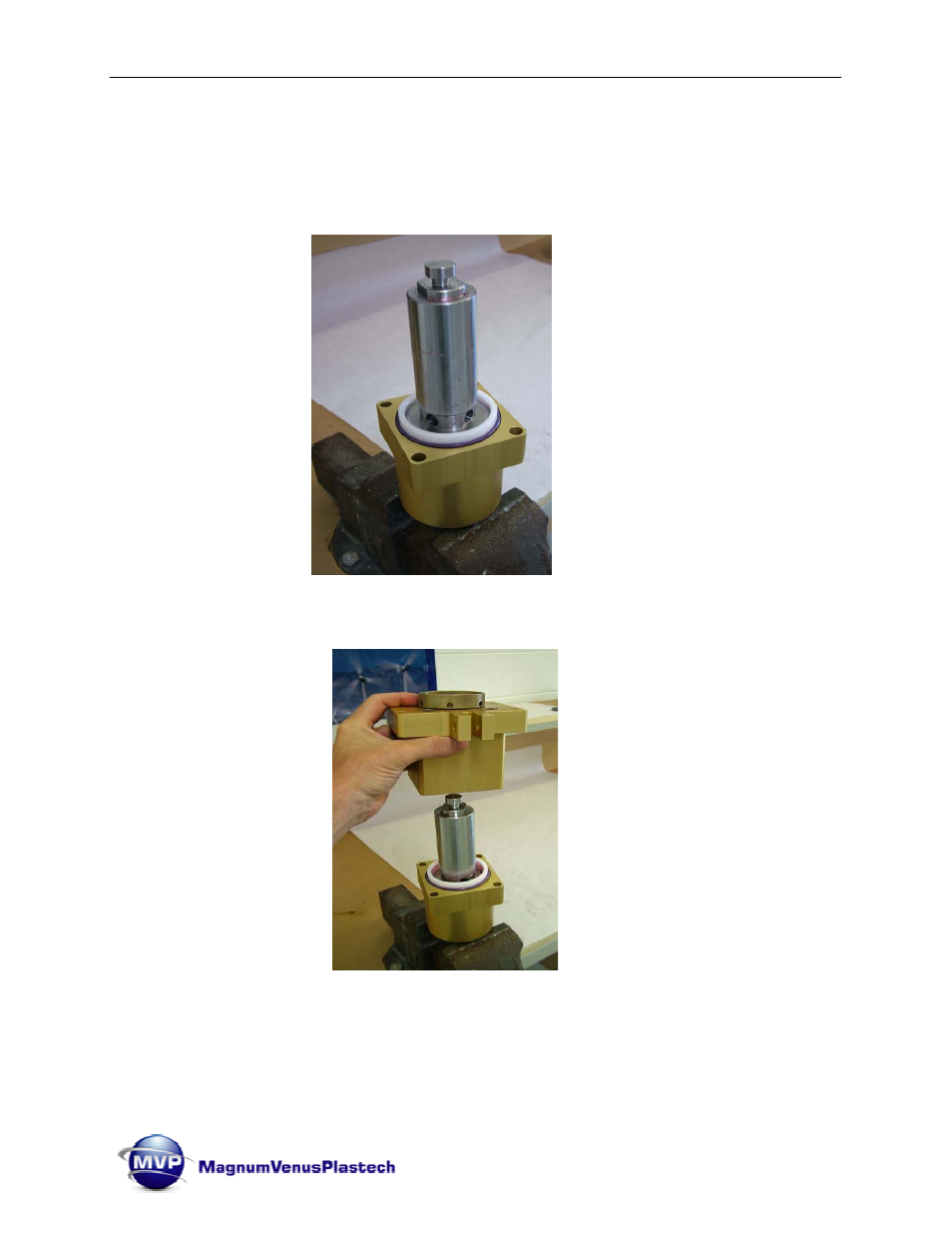

• Pump Assembly –

1.

With the assembled Inlet Body mounted in the vise slowly and firmly push the
Piston and Fluid Rod assembly all the way down into the Inlet Body.

















2.

Carefully and firmly push the assembled Outlet Body onto the Inlet Body until the
Fluid Rod extends though the Packing Nut.
