TL-5024 LIGHTING MEMORY CONSOLE
Version 0.93
OWNERS MANUAL
07/20/2012

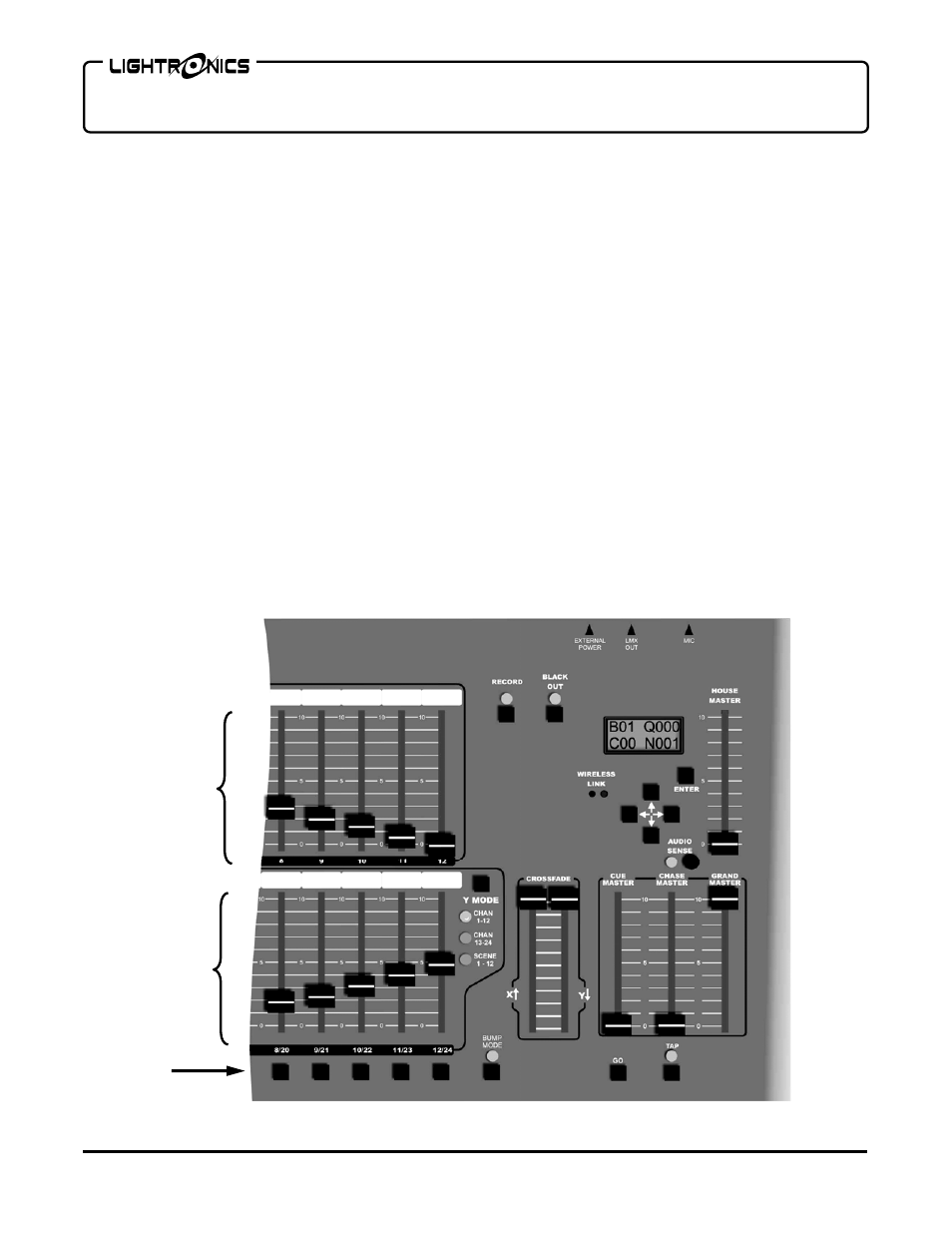

CONTROLS AND INDICATORS
X Faders:
Control individual channel levels for channels 1 – 12.
Y Faders:
Control level of scenes or individual channels depending on current operating mode.
Cross Faders:
Fade between X and Y row faders.
Bump Buttons:
Activates associated channels at full intensity while pressed.
TAP Button:
Press three or more times at desired rate to set chase speed.
TAP Indicator:
Flashes at currently set chase rate.
AUDIO SENSE Knob:
Adjusts sensitivity of the microphone for chase rate control.
Y Mode Indicators:
Indicate current operating mode of Y faders.
Y Mode Button:
Selects operating mode of Y faders.
BLACKOUT Button:
Turns on and off console output from all scenes, channels and chases.
BLACKOUT Indicator:
Lighted when blackout is active.
Cue Master:
Adjusts the intensity of cues.
Chase Master:
Adjusts the intensity of running chase patterns.
Grand Master:
Adjusts output level of all console functions.
House Master:
Adjusts intensity of dimmer channels assigned to console channel number 99.
Record Button:
Records scenes and chase patterns.
Record Indicator:
Flashes when chase or scene recording is active.
Bump Mode Button:
Converts channel bump buttons between pile-on and solo operation.
Bump Mode Indicator:
Lighted if bump mode is solo.
GO Button:
Activates the next cue in the cue list.
ENTER Button:
Activates and executes selections in the menu system.
Arrow Buttons:
Select current Scene Bank, Chase Pattern, and number of next Cue. Also used with
the
menu
system.
X FADERS
Y FADERS
BUMP
BUTTONS
