AF-5113 ARCHITECTURAL REMOTE STATION
Version
0.01
OWNERS MANUAL
04/07/2011
www.lightronics.com
Lightronics Inc.
509 Central Drive Virginia Beach, VA 23454
tel 757 486 3588
INSTALLATION

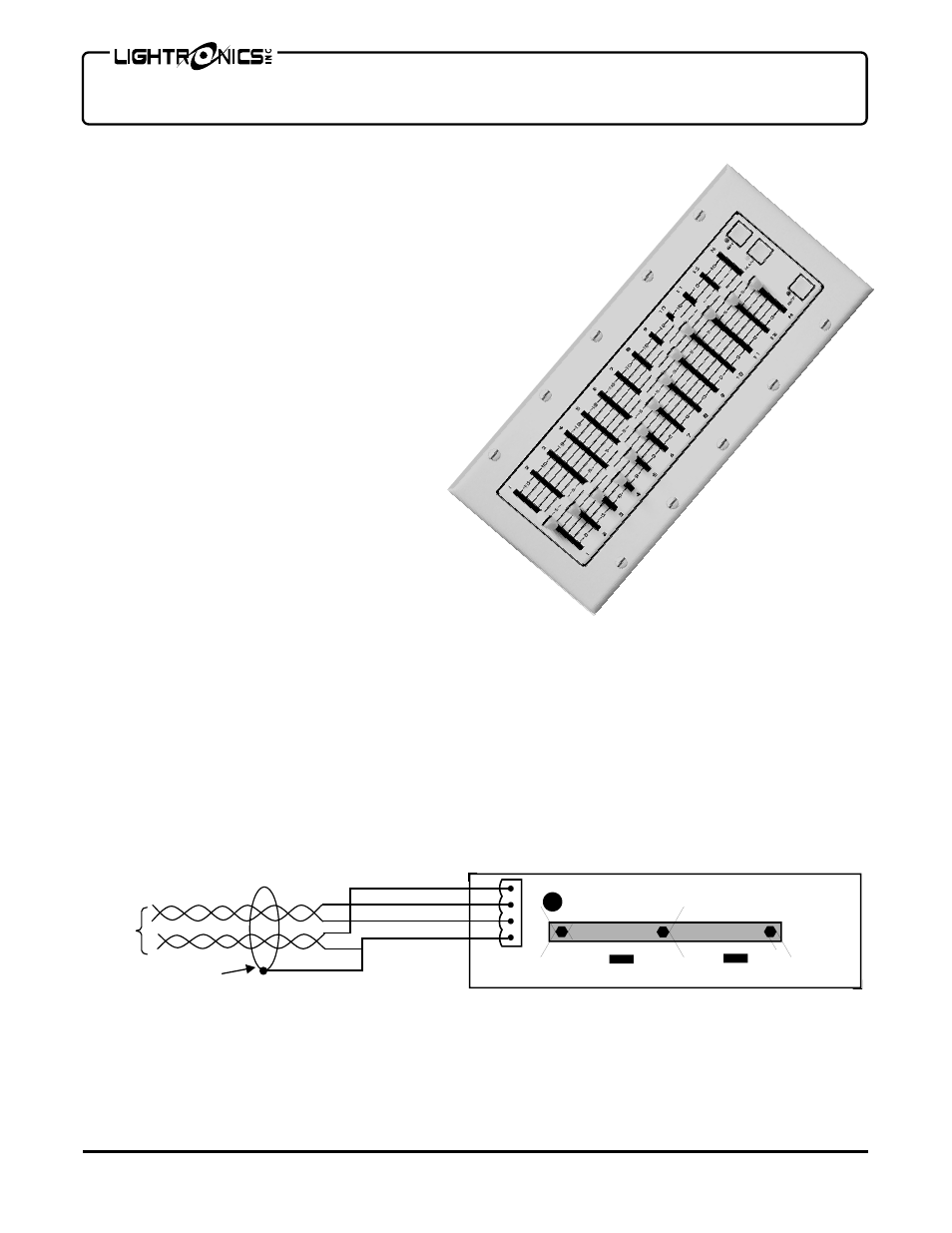

The AF-5113 connects to the AR-1202 dimmer via a shielded 4 conductor cable arranged as 2 twisted pairs. A
high grade, low capacitance cable (less than 25 pf per foot) is required to assure trouble free data transmission to
and from the AF-5113. One pair connects to the DATA – and DATA + signals. The other pair carries the power
(Remote V+) and COMMON. The cable shield should be connected to the COMMON.
INTRODUCTION
The AF-5113 is a twelve scene, wall mount
remote control unit intended for use with the
Lightronics AR-1202 Architectural dimmer.
The unit fits in a standard five gang wall switch
box. All power and data connections are via a
4 wire communication bus between itself and
the AR-1202 dimmer.
In addition to manual fader control of twelve
scenes, a master fader is provided. The
master fader enables intensity control for all
twelve scenes. Pushbutton switches are
included to activate a blackout and full on
selection. LED indicators provide status
feedback.
Multiple units may be chained together to
provide dimmer control from various locations.
The AF-5113 may also be used with other
Lightronics architectural remote stations.
TO
AR-1202
REM COMMON
REM DATA -
REM DATA +
REM V+
SHIELD
AF-5113 REAR VIEW
