INSTRUCTION MANUAL

Page 3 of 8

SM - 192 DMX LIGHTING CONTROLLER

Version 20090519

www.lightronics.com

Lightronics

Inc.

509

Central

Drive

Virginia

Beach,

23454

757

486

3588

CONTROLS & FUNCTIONS

1 Fixture (Scanners) Selectors:

Used to select one

or more of the 12 fixtures which can be controlled by
the SM-192. Each fixture is a block of 16 DMX
channels. The selectors are used in both programming
and manual modes

2 Scene Selectors:

Selects a scene in the current

scene bank for programming or playback. The scene
currently selected is shown on the DISPLAY.

3 Channel Faders:

Adjusts output level of a DMX

channel.

4 PAGE SELECT A/B:

Selects fader page A or page

B. Page A is channels 1-8 of the selected fixture. Page
B is channels 9 - 18.

5 Active Page Indicator:

Shows which page has been

selected by the

Page Select A/B button.

6 Speed Fader:

Adjusts the speed of auto triggered

scenes and chases. The display shows the setting (in
seconds) when this fader is used.

7 Fade Time Fader:

Adjusts the fade time for scenes

and chases. The display shows the setting (in seconds)
when this fader is used

8 Bank Buttons ( or ):

Selects a scene bank. The

third and fourth display digits show the currently active
bank number (01-30). Also used for during some
chase programming operations

9 Chase Selectors:

Selects a chase for programming

or playback.

10 PROGRAM: Switches unit into

programming mode

to create and record scenes and chases. Hold for 3
seconds to toggle program mode ON and OFF. The
display has a flashing indicator mark which shows
when the program mode is active. A BLACKOUT
condition is invoked when exiting the program mode.
Push BLACKOUT to turn blackout off.

11 MIDI/ADD:

MIDI: Toggles MIDI mode ON and OFF and selects

MIDI address.

ADD: Records a chase step or a scene setting in

program

mode.

12 AUTO/DEL:

AUTO: Toggles Activation of Auto-Run triggering for

chases or scenes. The display has an indicator

mark showing when the auto mode is active.

DEL: Deletes scenes, complete banks of scenes,

chase steps or complete chases in program

mode.

13 MUSIC/BANK COPY:

MUSIC: Toggles activation of Music Auto-Run. It

uses an internal microphone to synchronize

chases or scenes to music. The display has

an indicator showing when the music trigger

mode

active.

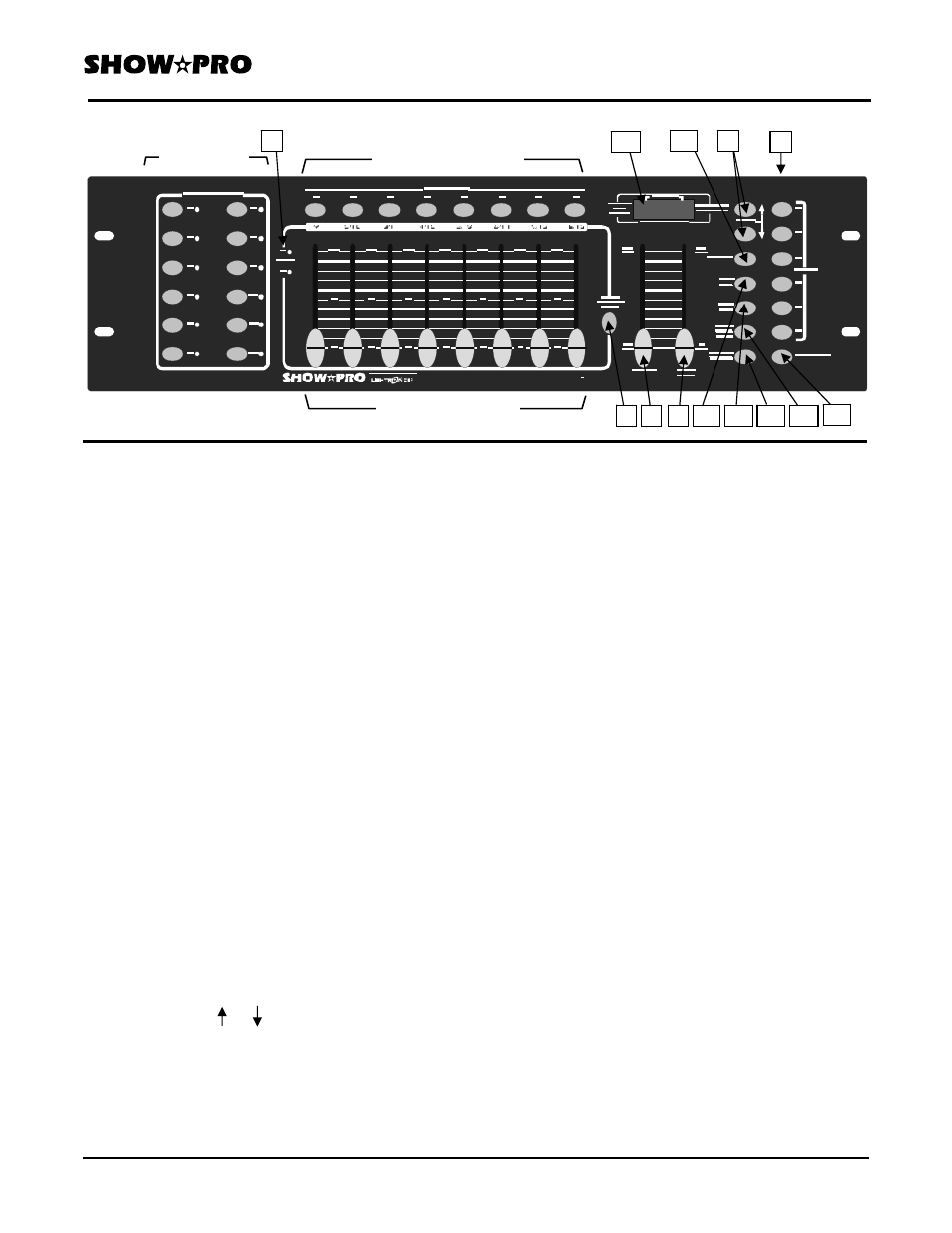

SM 192

1 0 1

(2) SCENE SELECTORS

(3) CHANNEL FADERS

(1) FIXTURE

SELECTORS
