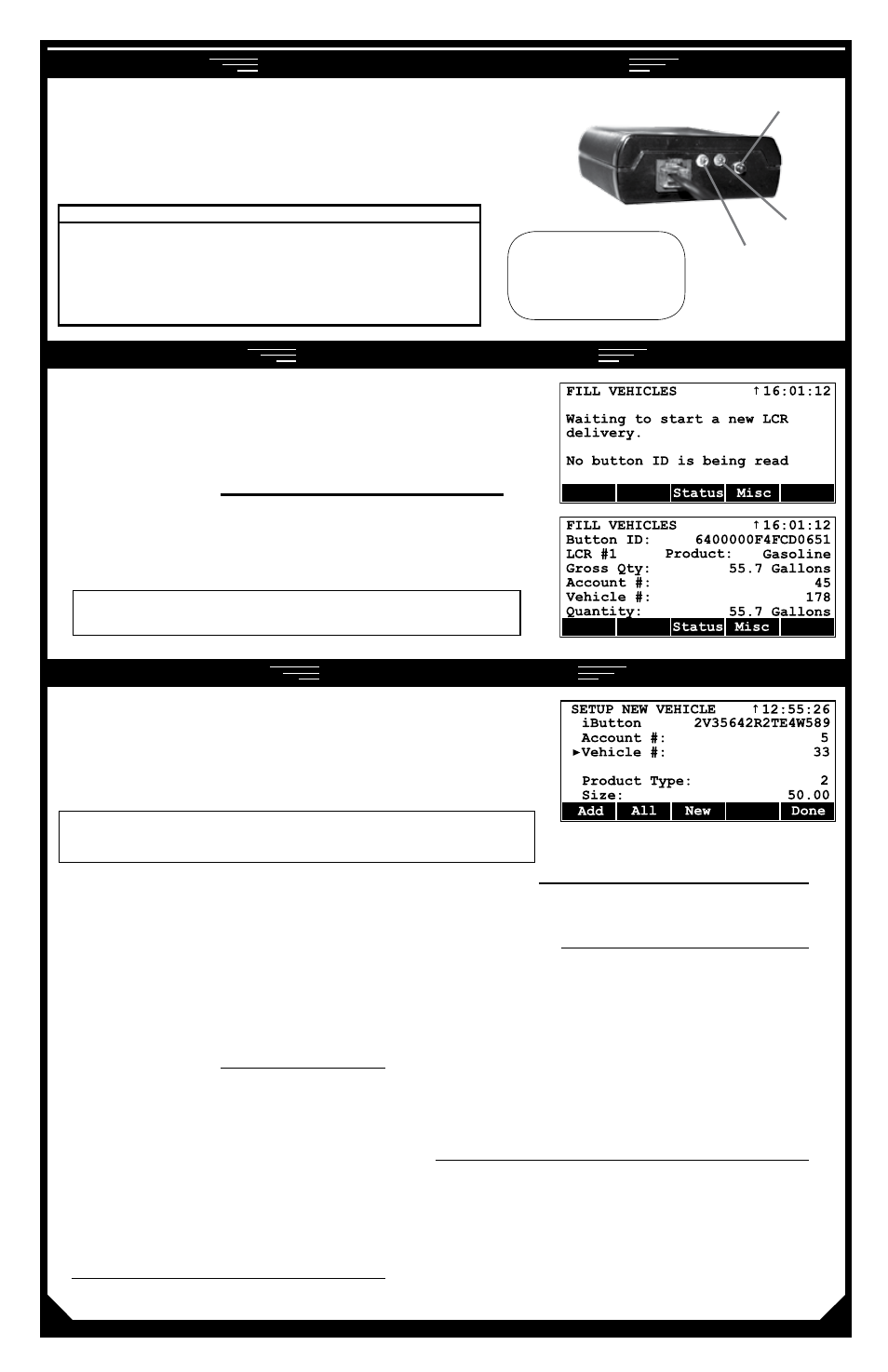

fiLL VehicLeS (delivery)
SeTup new VehicLe
the Fill Vehicles screen is the DMS i1000 Fleetconnect delivery
screen. It appears on the lap pad display immediately after
logging on. Upon reading a RFID button, the Fill Vehicles screen
changes to display the button ID, product, delivery quantities, and
account information.
Make a DelIvery
1. Attach the EZConnect Button Reader onto the RFID button.
2. Press the black reset button on the EZConnect.
3. When the yellow light blinks, open the nozzle and begin
delivery.
1. Press Misc (f4) in
FIll VehIcleS screen
2. Select Setup New Vehicles.
3. Attach the EZConnect button reader to the
RFID button and press the power button.
The RFID number will appear in the iButton
field of the SetUP new VehIcleS screen.
4. Select Account # and choose the
correct customer from the list box.
if new cuSTomeR
4a. In the SetUP new VehIcleS screen, move
the pointer to Account # and press New
( f3) to open the cUStoMer FIle screen.
4b. In the cUStoMer FIle screen, move the
pointer to Account # and press New (f3).
Enter the new account number.
4c. Enter the new customer information in the
Customer File fields.
4d. Press Exit (f5) to return to the SetUP
new VehIcleS screen.
the SetUP new VehIcle screen allows fuelers to add new
vehicles to the FleetConnect database, so that new vehicles can be
fueled on-the-spot in the field. To setup a new vehicle in the field,
you will need a RFID button. When attaching a RFID button to a
vehicle, clean the area and stick the RFID button onto the vehicle
using double-sided tape.
5. Select Vehicle # and choose the correct vehicle
from the list box.
if new VehicLe
5a. In the SetUP new VehIcleS screen, move the
pointer to Vehicle # and press New (f3). enter the
new account number.
5b. In the VehIcle FIle screen, move the pointer to
Vehicle # and press New (f3). Enter the new vehicle
number.
5c. Enter the new vehicle information in the Vehicle File
fields.
5d. Press Exit (f5) to return to the SetUP new
VehIcleS screen.
6. Press Add (f1).
7. Press Done (f5).
8. Attach a RFID button to a vehicle near the fueling
point.
SetUp a new vehIcle In the DMS I1000 DataBaSe
eZconnecT BuTTon ReAdeR
Red Light
Yellow Light
Power/Reset Button
To read and send a RFID button number, attach the EZConnect
socket to a button and press the power button. If the button
reader is pulled from the button, a ten second window exists
in which the button reader must be reattached to continue the
delivery on the same transaction record.
Removing the button reader from the RFID button stops the delivery.
The DMS i1000 will end the delivery ten seconds after it is removed.
If the vehicle is owned by an existing customer skip steps 4a - 4b. If the
vehicle is already in the database skip steps 5a - 5b.



oFF
on
FlASh
StatUS lIght key
eZconnect BUtton reaDer StatUS lIghtS
Off (press button to activate)
Button disconnected or not in database
Button connected ready to fuel
DMS/lcr/Printer error or delivery initiation
Yellow




red




