Installation and Quick Start Guide
Rio Rancho, NM
19

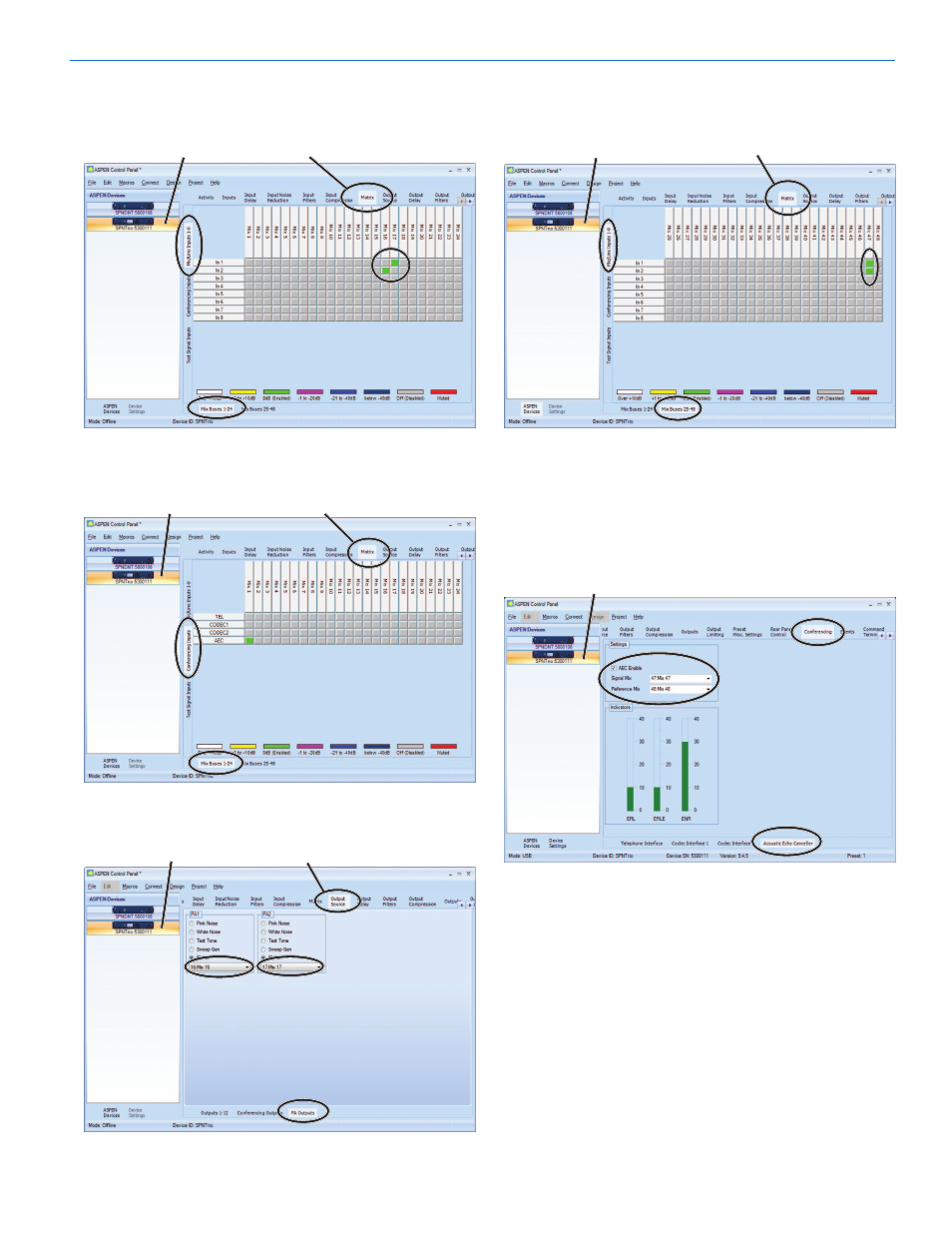

Assign the two microphone inputs to Mix Buses 16 and
17 to be used for local sound reinforcement. Make the
assignments under the SPNTrio matrix tab.
Select SPNTrio
Matrix tab
Assign the two microphone inputs to Mix Bus 47 to de-
liver audio to the other ASPEN system via the network.
Make the assignments under the SPNTrio matrix tab.
Select SPNTrio
Matrix tab
Select Mixes 16 and 17 as the signal source for the
power amp outputs to feed the local loudspeakers.
Select SPNTrio
Output Source tab
Assign the AEC output to Mix 1, which is the signal
source for the audio sent to the other ASPEN system
via the network.
Select SPNTrio
Matrix tab
Assign the Signal Mix and Reference Mix in the
SPNTrio under the Conferencing tab. The Signal Mix
contains the audio from the local microphones. The
Reference Mix contains the audio from the other
ASPEN system which the AEC cancels to remove an
echo that might be heard due to coupling between the
local microphones and loudspeakers.
Select SPNTrio
Conferencing tab
(See next page)
