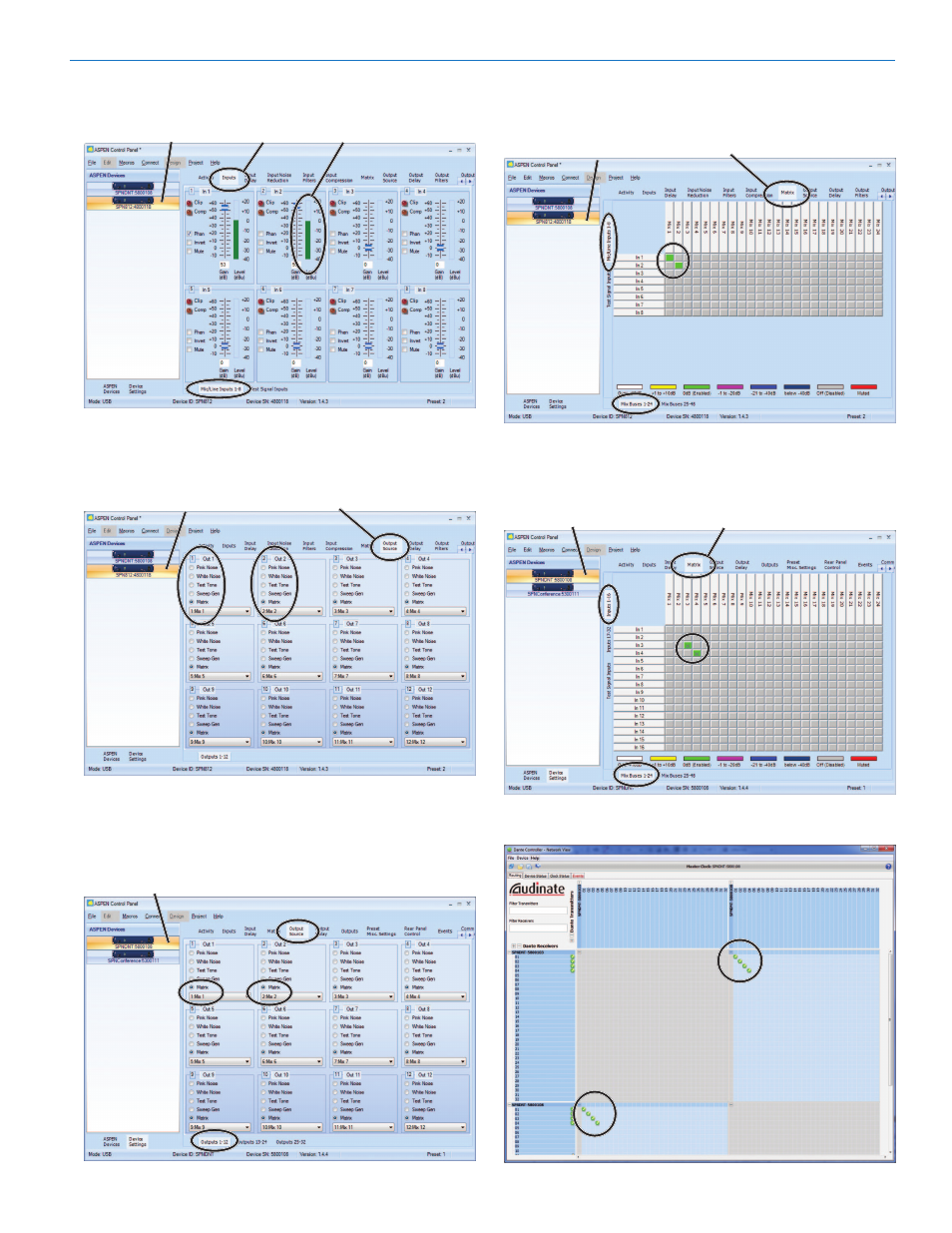

Set up the inputs for the microphones with the gain
value set to achieve 0 dBu on the meter during speech.
Select mixer Inputs tab Audio level meter
Route the microphone inputs to Mix 1 and Mix 2 on
subsystem A and Mix 3 and Mix 4 on subsystem B
under the matrix tab (subsystem A shown).
Select mixer Matrix tab
Select the source signal to be delivered to the outputs.
• For subsystem A: Mix 3 to Out 3; Mix 4 to Out 4
• For subsystem B: Mix 1 to Out 1; Mix 2 to Out 2
Select mixer Output Source tab
Assign Dante receive channels 3 and 4 to Mixes 3 and
4 respectively in the SPNDNT processor in subsys-
tem A and Dante channels 1 and 2 to Mixes 1 and 2
respectively in subsystem B (subsystem A shown)
Select SPNDNT Matrix tab
Select the signal sources to deliver audio to the net-
work from The SPNDNT in each subsystem.
• For subsystem A: Mix 1 for Out 1
• For subsystem B: MIx 2 for Out 2
Select SPNDNT Output Source tab
Create Dante subscriptions in a diagonal pattern: 1:1,
2:2, 3:3, 4:4.
