Agri-Fab 45-0298 User Manual

Page 5

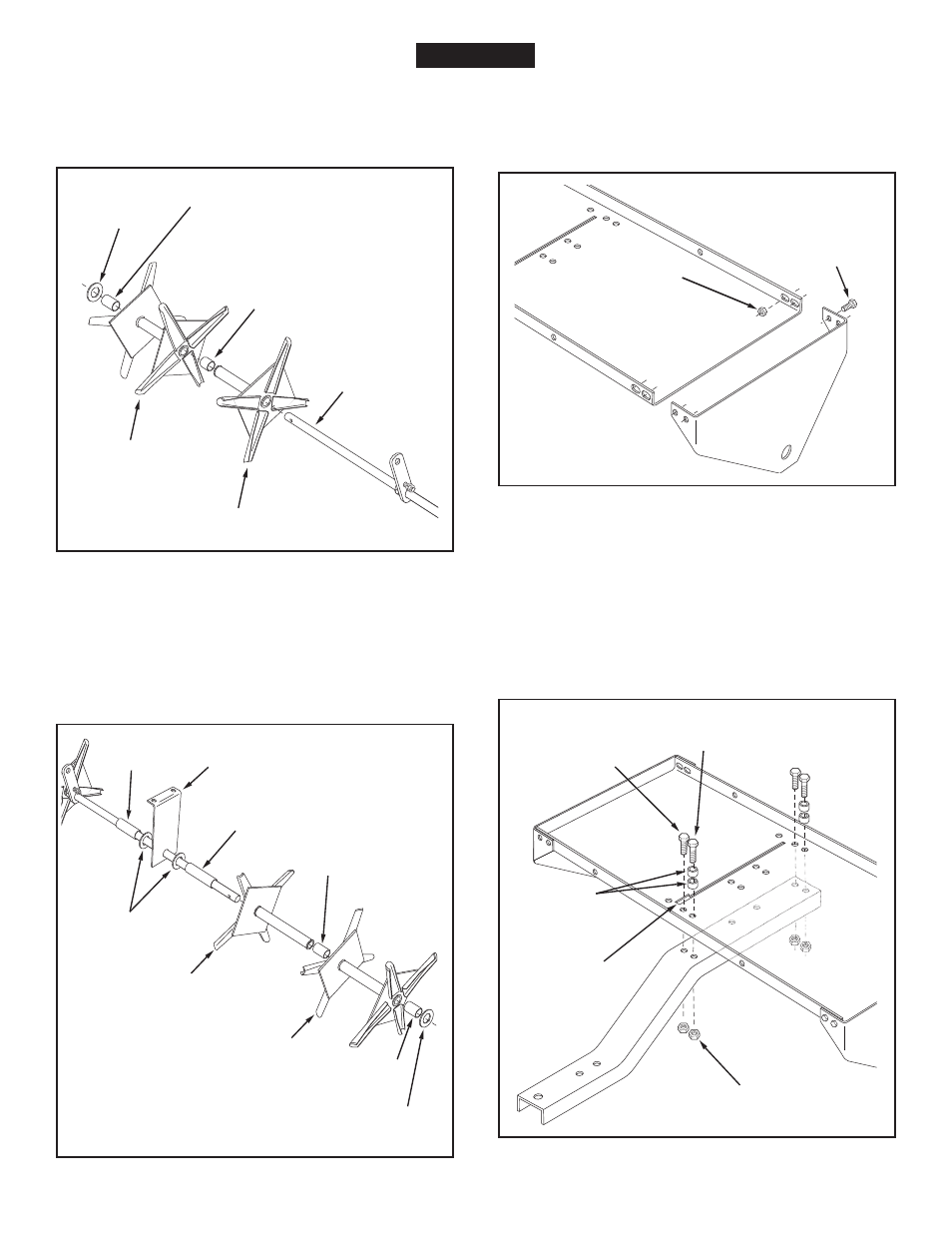

7. Assemble a single spool assembly, a " long spacer, a

double spool assembly, a .33" long spacer and a 3/4"
flat washer onto the short end of the shaft. See figure
4.

FIGURE 5

9. Assemble an end plate to the end of the tray using four

5/6" x 3/4" hex bolts and four 5/6" nylock nuts. Repeat
for other end.

Do not tighten till step 20. See figure

FIGURE 6

FIGURE 7

8. Assemble a 2.38" long spacer, a 3/4" flat washer, the

middle brace, a 3/4" flat washer, a 3.70" long spacer,
a single spool assembly, a .33" long spacer, a double
spool assembly, a 1.33" long spacer and a 3/4" flat
washer onto the long end of the shaft. The bent lip of
the middle brace must face the short end of the shaft.
See figure 5.

FIGURE 4

0. Assemble the tongue to the tray, placing the slot's lock-

ing notch to the front. Use two 3/8" x " hex bolts, two
3/8" x -/4" hex bolts, four /4" long spacers, and four
3/8" nylock nuts as shown in figure 7.

Tighten.

SINGLE SPOOL
ASSEMBLY

DOUBLE SPOOL
ASSEMBLY

1" LONG
SPACER (S)

1.33" LONG
SPACER (T)

3/4" FLAT
WASHER (O)

SHORT END

2.38" LONG
SPACER (Q)

1.33" LONG
SPACER (T)

3/4" FLAT
WASHER (O)

MIDDLE
BRACE

3.70" LONG
SPACER (R)

3/4" FLAT

WASHER (O)

SINGLE SPOOL
ASSEMBLY

DOUBLE SPOOL
ASSEMBLY

3/8" x 1"

HEX BOLT (D)

3/8" x 1-1/4"
HEX BOLT (C)

1/4" LONG
SPACERS (P)

3/8" NYLOCK
NUT (J)

LOCKING
NOTCH

5/16" x 3/4"
HEX BOLT (E)

5/16" NYLOCK
NUT (K)
