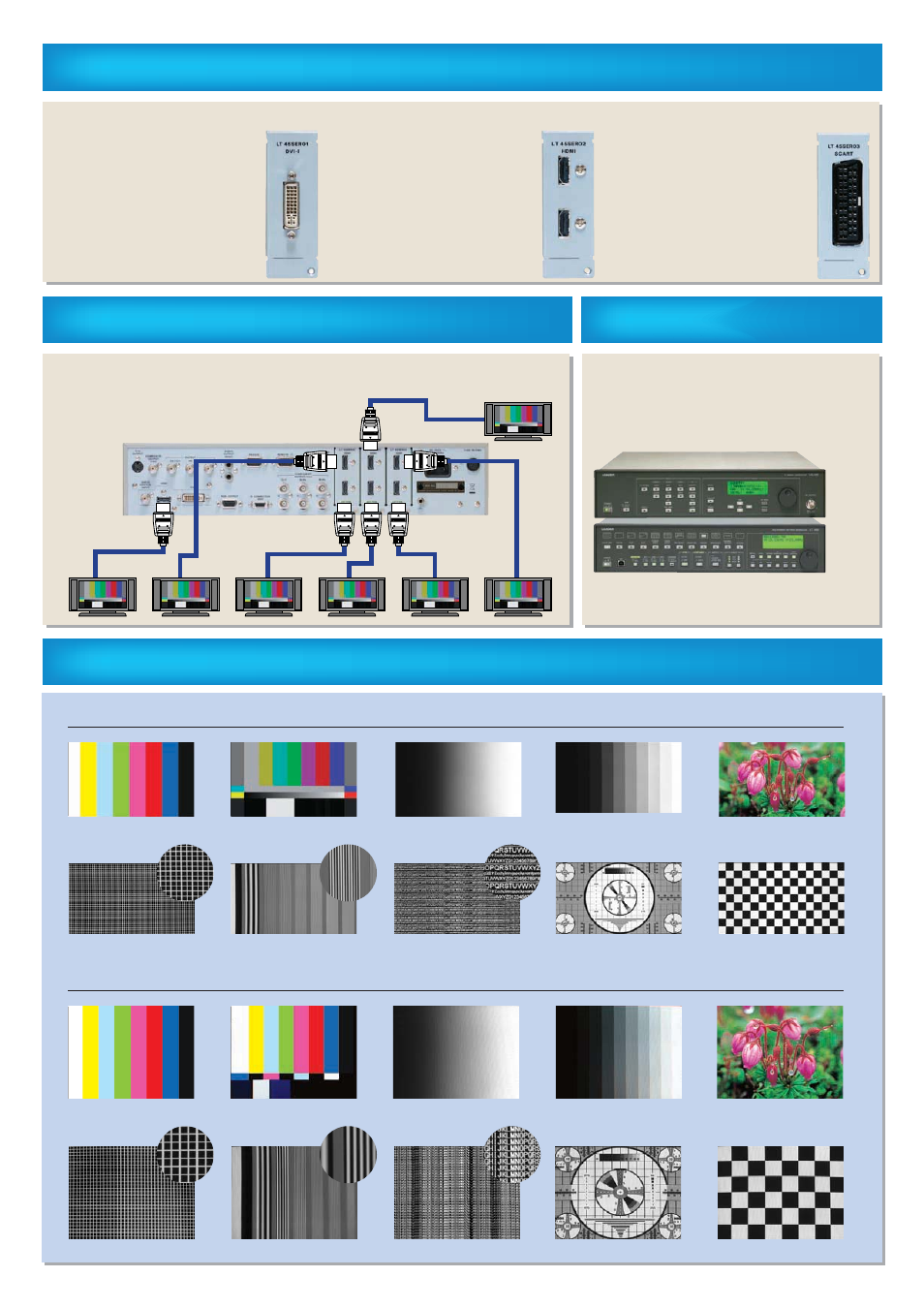

Main Patterns
16 ：9
4 ：3
① LT 45SER01 DVI-I Unit
An output unit with a DVI-I
connector. Can be used to
check HDCP-compliant
copyright protection functions
and to make simple checks on
the DDC function.
② LT 45SER02 HDMI Unit
An output unit with two HDMI
connectors. Can be used to
check HDCP-compliant
copyright protection functions
and to make simple checks on
the CEC and DDC functions.
③ LT 45SER03 SCART Unit
A PAL- and SECAM-compatible
SCART connector unit. Can used
to make simple checks on
European AV equipment.
Full field color bar
(100 %/75 %)
Multiformat color bar Ramp Step 10/15/32
Full field color bar
(100 %/75 %)
SMPTE color bar Ramp Step 10/15/32 Natural picture factory option
(Bitmap data is not included.)
Crosshatch Multiburst Character Checker Monoscope
Natural picture factory option
(Bitmap data is not included.)
Crosshatch Monoscope Checker Multiburst Character
●Output units can be added freely according to your objectives.
Output Unit Options
You can expand the output to up to seven HDMI outputs and perform simultaneous
inspection and verification on all outputs.
●LG 226 TV Signal Generator and LT 450
An LT 450 NTSC, PAL, or SECAM signal can be
modulated into a VSB-AM signal that conforms
to the broadcasting formats of various countries.
The LT 450 preset/recall feature can be
remotely controlled from the LG 226.
●Example in which three LT 45SER02 HDMI units are installed
Example of Output Unit Combinations (Seven HDMI Outputs)
Example of a Combination with
Another Product (VSB-AM Support)
LG 226
LT 450
