The Ancillary status option from PHABRIX
®
provides
broadcasters, studios, OB and broadcast manufacturers
with a detailed analysis of the ancillary data present in a
SDI signal.
A simple grid layout provides a quick check for an engineer
of the available ancillary data present on the signal. The
packet type is then displayed as present, absent or red if in
fault. Simple icons next to the packet indicate the fault. The
legend of each icon is defined across the bottom of the
viewing window.
Each ancillary packet available from the grid view can be
set to enable logging and presented together with other
information in the events window of the main logging menu.
The option also allows the user to define the required DID
or SDID code. Any ancillary packet code can be saved
down for future recall.
Please note this option does not fully decode the ancillary
data. It is used to identify if the packet is present in the
signal.
broadcast excellence
PHABRIX®
®
•
SIMPLE GRID VIEW
•
PRESENT ABSENT FAULT ALERT GRID
•
USER DEFINED IDENTIFIER
•
CUSTOM SAVE
•
DID, SDID FILTER
•
LOGGING
APPLICATIONS
•
R&D/TEST DEPARTMENTS
•
SYSTEM INTEGRATORS
•
SUPPORT ENGINEERS
AVAILABLE FOR
•
PHABRIX® SxA
•
PHABRIX® SxD
•
PHABRIX® SxE

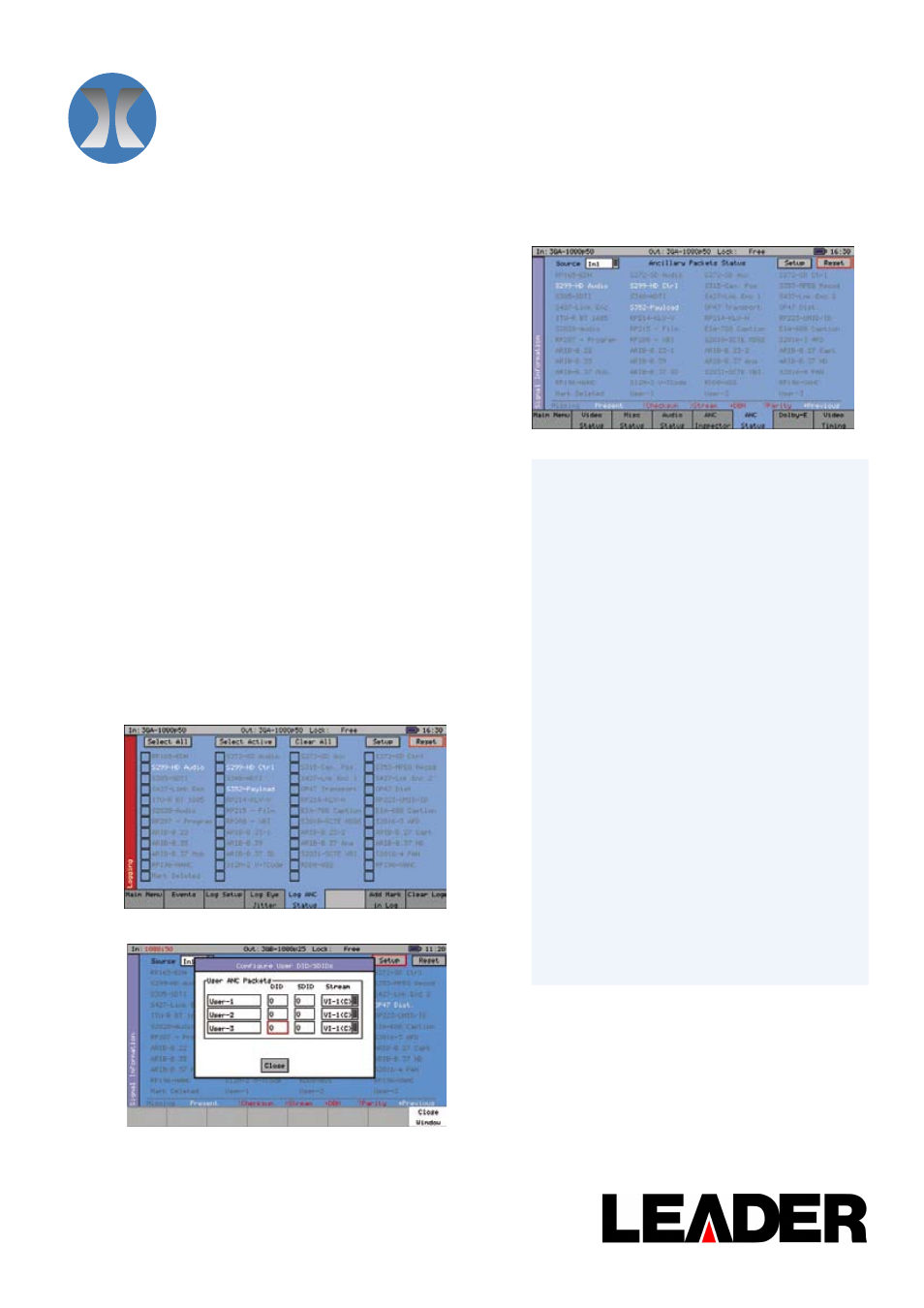

Ancillary data status view grid
FEATURE HIGHLIGHTS
ANCILLARY STATUS
Configure user DID/SDID’s
Ancillary Data Logging
Revision
05/13
* Specifications and features described herein are subject to change without prior notice.
Please consult our website www.phabrix.com for the latest data.
PHABRIX is a registered trademark.
ORDERING INFORMATION
Option Code
PHSXOVNC
