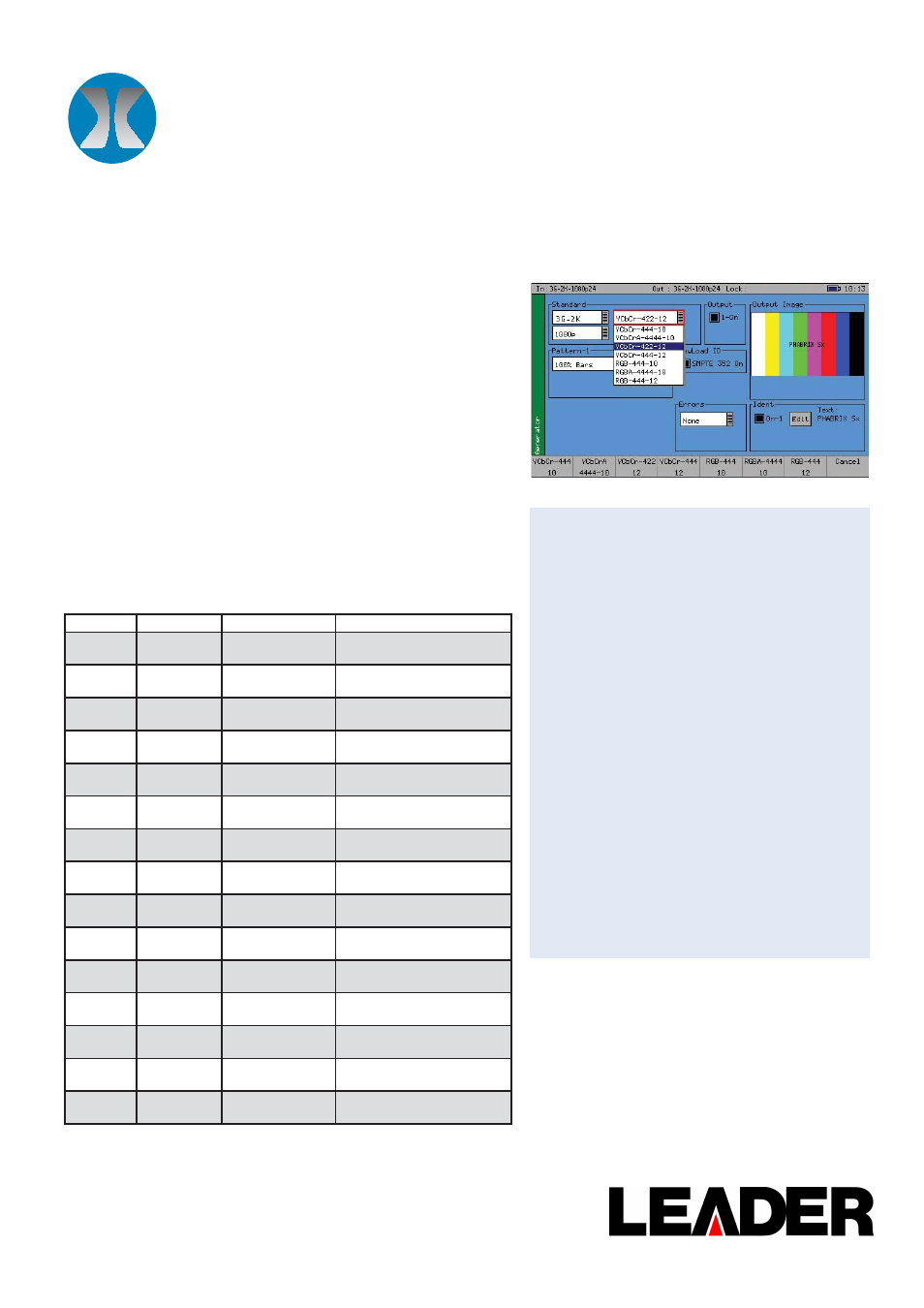

FEATURE HIGHLIGHTS

3G-SDI 2048 X 1080 ANALYSIS TOOLS

3G-SDI 2048 X 1080 TEST PATTERNS

YCRCB, RGB, RGBA AND XYZ SUPPORT

10-BIT AND 12-BIT SUPPORT

PROGRESSIVE AND PSF SUPPORT

DUAL LINK ON SXD

AVAILABLE FOR

SDI 2K FORMATS

The SDI 2K formats option for the SxA, SxD and SxE handheld

instruments (PHSXO-2K) supports the new SDI practice for HD

and 3G Level A and Level B signal transfer of 2K advanced

formats including 4:2:2 Y’C’

B

C’

R

, 4:4:4 R’G’B’ and 4:4:4

Y’C’

B

C’

R

at 10/12 bit as well as 4:4:4 X’Y’Z’ at 12-bit. For

broadcast manufacturers this option allows rigorous testing of

many more formats beyond the standard signals used in

traditional broadcasting.
This provides analysis of, and test pattern generation for,

2K digital cinema as defi ned in the SMPTE ST 2048-2:2011

standard (“2048 x 1080 Digital Cinematography Production

Image FS/709 Formatting for Serial Digital Interface”) and

SMPTE 428-9 (D-Cinema Distribution Master - Image Pixel

Structure Level 3 - Serial Digital Interface Signal Formatting).

This option allows the Sx hand held instruments to support the

following 2K formats:

Standard Resolution Color Space

Rate

SMPTE
ST 2048-2

2048 x 1080 4:2:2 (Y’C’

B

C’

R

)

10 bit

60.00, 60/1.001, 50, 48 and
48/1.001 Progressive

SMPTE
ST 2048-2

2048 x 1080 4:4:4 (Y’C’

B

C’

R

)

10 bit

30, 30/1.001, 25, 24 and
24/1.001 PsF

SMPTE
ST 2048-2

2048 x 1080 4:4:4 (Y’C’

B

C’

R

+A)

10 bit

30, 30/1.001, 25, 24 and
24/1.001 PsF

SMPTE
ST 2048-2

2048 x 1080 4:4:4 (R’G’B’)

12-bit

30, 30/1.001, 25, 24 and
24/1.001 Progressive

SMPTE
ST 2048-2

2048 x 1080 4:4:4 (Y’C’

B

C’

R

+A)

12 bit

30, 30/1.001, 25, 24 and
24/1.001 Progressive

SMPTE
ST 2048-2

2048 x 1080 4:4:4 (R’G’B’)

12-bit

30, 30/1.001, 25, 24 and
24/1.001 PsF

SMPTE
ST 2048-2

2048 x 1080 4:4:4 (Y’C’

B

C’

R

+A)

12 bit

30, 30/1.001, 25, 24 and
24/1.001 PsF

SMPTE
ST 2048-2

2048 x 1080 4:2:2 (Y’C’

B

C’

R

)

12 bit

30, 30/1.001, 25, 24 and
24/1.001 Progressive

SMPTE
ST 2048-2

2048 x 1080 4:2:2 (Y’C’

B

C’

R

+A)

12 bit

30, 30/1.001, 25, 24 and
24/1.001 Progressive

SMPTE
ST 2048-2

2048 x 1080 4:2:2 (Y’C’

B

C’

R

)

12 bit

30, 30/1.001, 25, 24 and
24/1.001 PsF

SMPTE
ST 2048-2

2048 x 1080 4:2:2 (Y’C’

B

C’

R

+A)

12 bit

30, 30/1.001, 25, 24 and
24/1.001 PsF

SMPTE
ST 428-9

2048 x 1080 4:4:4 (X’Y’Z’)

12-bit

24 and 24/1.001Progressive

SMPTE
ST 428-9

2048 x 1080 4:4:4 (X’Y’Z’)

12-bit

24 and 24/1.001Psf

SMPTE
ST 428-19

2048 x 1080 4:4:4 (X’Y’Z’)

12-bit

25, 30 and 30/1.001
Progressive

SMPTE
ST 428-19

2048 x 1080 4:4:4 (X’Y’Z’)

12-bit

25, 30 and 30/1.001 Psf

ORDERING INFORMATION

Option Code

PHSXO-2K

PHABRIX

®

®

broadcast excellence

Revision

02/14

PHABRIX is a registered trademark.

Specifi cations and features described herein are subject to change without prior notice.

Please consult our website www.phabrix.com for the latest data.

3G-SDI 2K generator formats

Represented in the Americas by

PHABRIX® SxA

PHABRIX® SxD

PHABRIX® SxE

PHABRIX® TAG

(Requires PHSXT-GEN and PHSXOSD)
