This option allows the display of Dolby D/D+/E meta data
present in a selected audio stream and determines whether
the Dolby packet is timed correctly on the SDI video
stream.
The Dolby D/D+/E may be monitored from any of the
SDI input embedded audio channel pairs or the AES input.
In use the new start menu window displays both the V Bit
information and PCM values along with a snapshot of the
Dolby D/D+/E metadata if a Dolby D/D+/E signal is present.
Using the Signal Information menu, Dolby D/D+/E will
present the full analysis display.

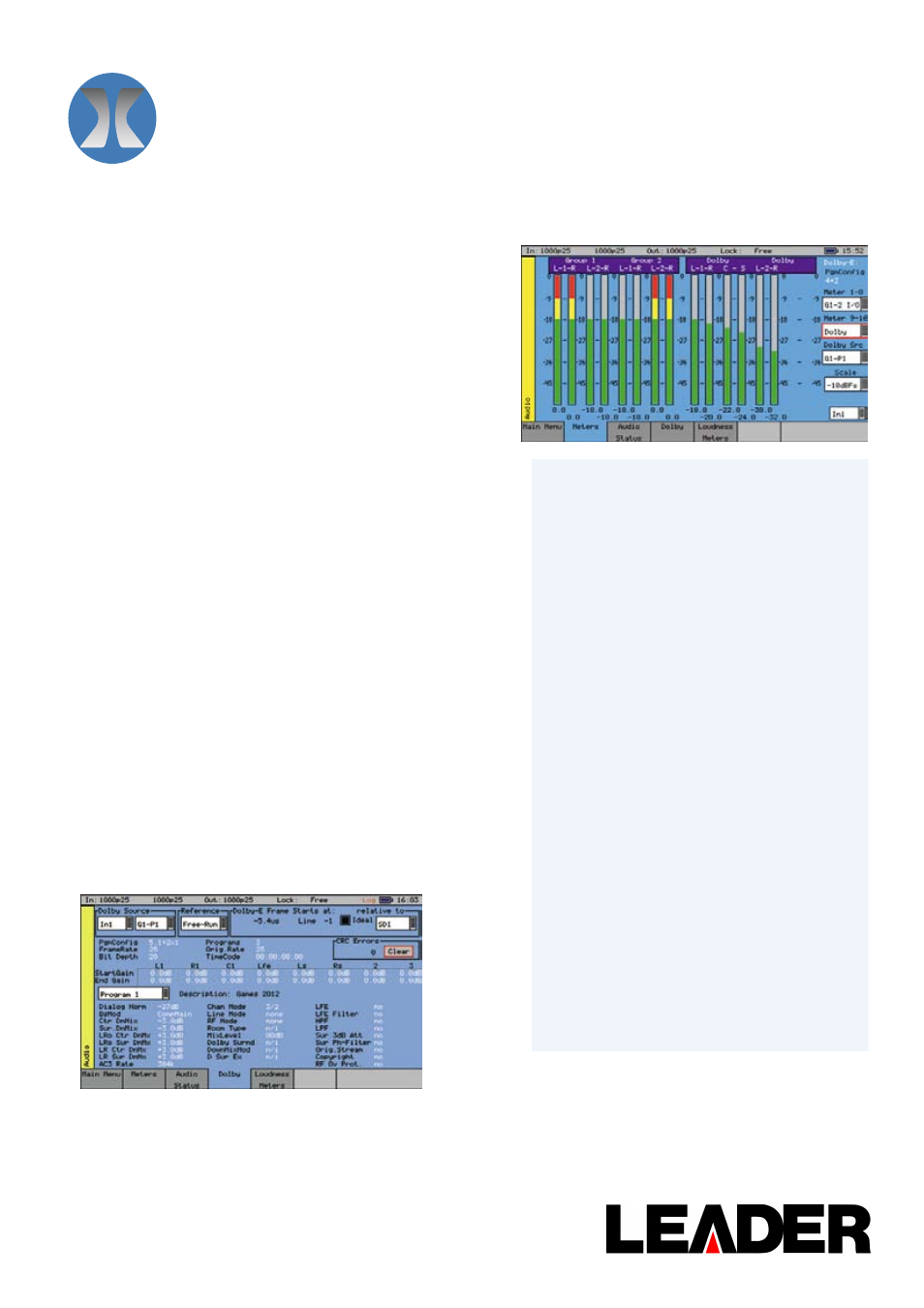

The Dolby metadata screen shown below carries primary
information including signal source, Dolby ‘guard band’
timing, CRC errors, program channel and metadata detail.
The characters shown in white will only be presented when
a Dolby signal is introduced into the unit. These include:
Config
Frame rate
Bit depth
Timecode
CNC error count
Program Information;
Channel(s) Start and End gain
Description
Dialog level
Mix levels
The peak audio levels included in the Dolby D/D+/E meta
data packet are displayed on the Audio>Meters page.
Select the appropriate set of meters to display Dolby levels
which will follow the selected Dolby source.
Dolby-E Timing, Program and Metadata display
Note: Dolby-E audio will not be decoded.
broadcast excellence
PHABRIX®
®
•
DOLBY D/D+/E ANALYSIS
•
8 CHANNEL VIEW SIMULTANEOUSLY
•
DOLBY ‘GUARD BAND’ TIMING
•
METADATA VIEW
•
CRC ERROR DETECTION
•
PROGRAM INFORMATION
•
LOGGING
APPLICATIONS
•
R&D/TEST DEPARTMENTS
•
SYSTEM INTEGRATORS
•
SUPPORT ENGINEERS
AVAILABLE FOR
•
PHABRIX® SxA
•
PHABRIX® SxD
•
PHABRIX® SxE
FEATURE HIGHLIGHTS
DOLBY D / D+ / E ANALYSIS
Dolby E meter display
Revision
02/14
*Specifications and features described herein are subject to change without prior notice.
Please consult our website www.phabrix.com for the latest data.
PHABRIX is a registered trademark.
ORDERING INFORMATION
Option Code
PHSXOBD-A
LEADER INSTRUMENTS CORPORATION
Fullerton, CA 92831
1501 E. Orangethorpe Avenue, Suite 140
Toll Free 1-800-645-5104
Tel 1-714-527-9300
www.LeaderAmerica.com
Represented in the Americas by
•
PHABRIX® TAG
(Requires PHSXT-GEN and
PHSXOSD)
