Laurel Electronics LTE SERIES TRANSMITTERS ANALOG INPUT User Manual
Page 14
- 14 -

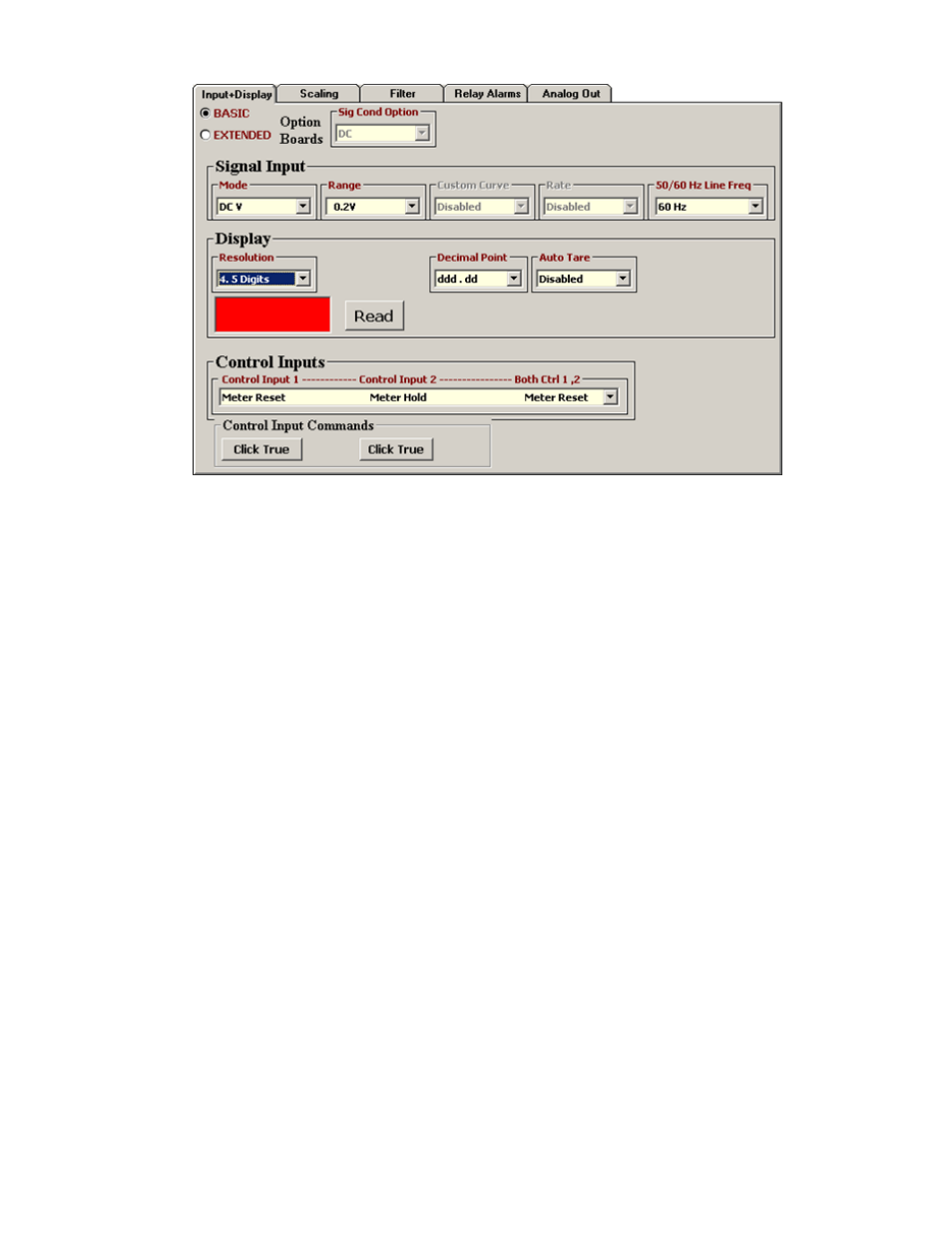

To reach the above Input+Display tab screen, follow this procedure:
1) Highlight your device under the
Device Discovery
tab.
2) Click on the
Main Menu
button. A new
DPM Main Menu
window will open with a help screen.
3) Click on
DPM
in the top menu bar. Our analog input transmitters and DPMs use the same
software. While a scaled digital reading is not displayed by transmitters, it is used internally.
4) Click on
Get Setup
to retrieve the setup data currently in the transmitter.
5) Click on
View
=>
Setup
to reach the above setup window with five tabs.
The Input+Display tab is used to set up
Signal Input
,
Display
, and
Control Inputs
. Note that IS
Software reads the signal conditioner type, but not the range, which is set by jumpers. The
50/60 Hz Line Freq
selection is used for best noise rejection at AC line frequency. Click on
Read
to display the current reading. Press the F1 key for help with any highlighted item.
