Laurel Electronics LTE SERIES TRANSMITTERS ANALOG INPUT User Manual
Page 12
- 12 -

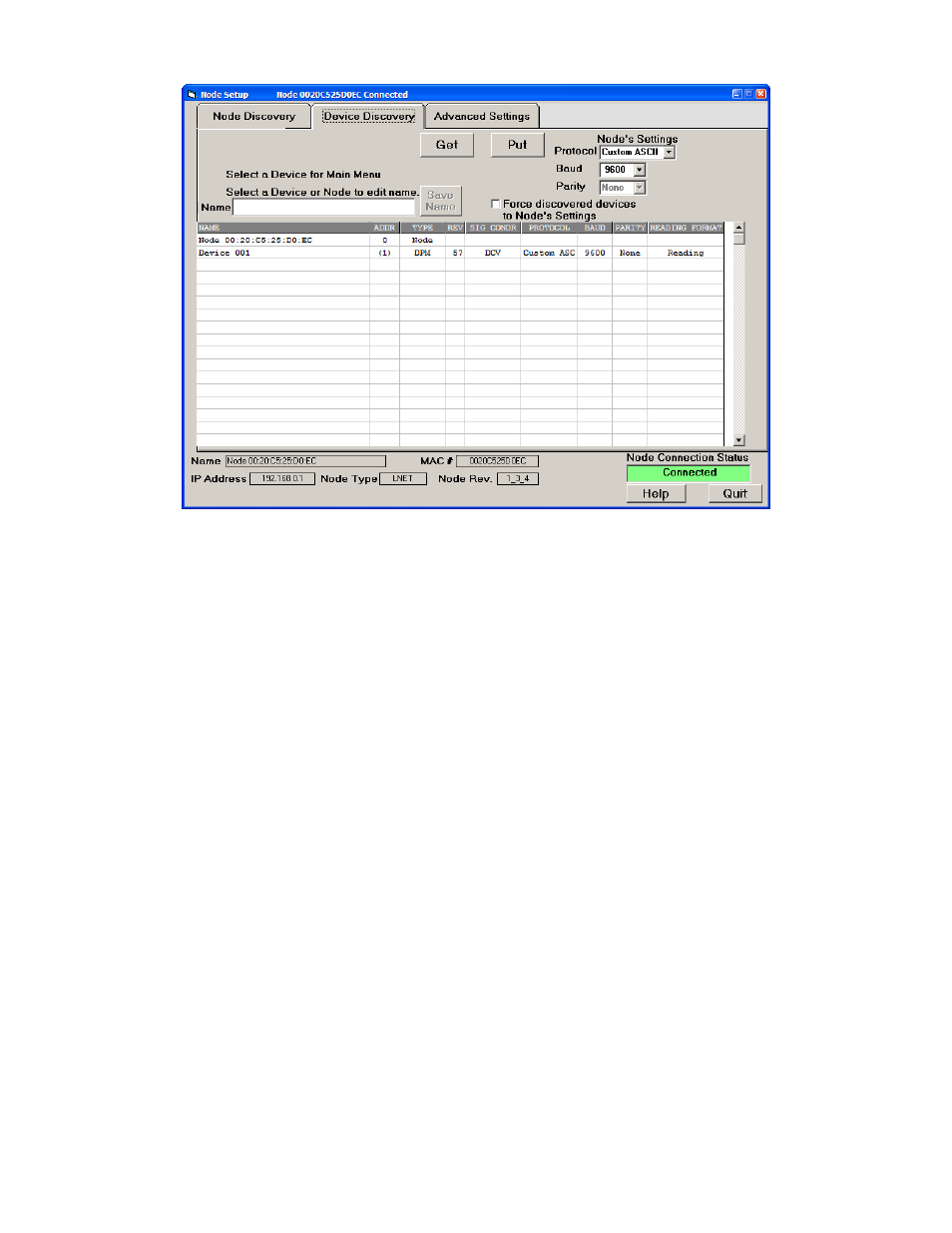

Click on the Device Discovery tab, and all Devices attached to your Node will be listed. With an
LTE transmitter, the transmitter will be the only Device listed. With a device server Node, there
can be up to 30 Devices (meters and transmitters) on an RS485 bus. Please see our Ethernet
manual.
Highlight your Node, and you can assign a descriptive name to it, such as
Tank Farm
. The
default name is the Node’s unique MAC address. You can also use this tab to change your
Node’s communication settings. Press
Get
to retrieve settings from the Node to the PC. Press
Put
to write settings from the PC to the Node.
Highlight your Device, and you can assign a descriptive name to it, such as
Tank Level
. Press
Get
to retrieve settings from the Device to the PC. Press
Put
to write settings from the PC to the
Device.
