Laurel Electronics LTE SERIES TRANSMITTERS ANALOG INPUT User Manual
Page 10
- 10 -
8. PROGRAMMING YOUR TRANSMITTER
OVERVIEW
LTE transmitters are easily programmed by connecting them to the same LAN as a PC or by
connecting them directly to a PC with an Ethernet cable, and then running Instrument Setup
Software on the PC. This MS Windows based software allows Node and Device discovery,
uploading, editing, downloading and saving of setup data, execution of commands under
computer control, listing, plotting and graphing of data, and computer prompted calibration.
INSTALLING INSTRUMENT SETUP SOFTWARE
Download the file
ISx_x_x.exe
from our website and double-click on the file name. Click on
Install Instrument Setup Software
and follow the prompts.
LAUNCHING INSTRUMENT SETUP SOFTWARE
Connect your LTE transmitter to your PC via an Ethernet cable, or connect the transmitter to the
same LAN as the PC. To launch IS software, press on
Start => Programs => IS2 => Instrument
Setup
or on the desktop icon that you may have created. Following a brief splash screen, the

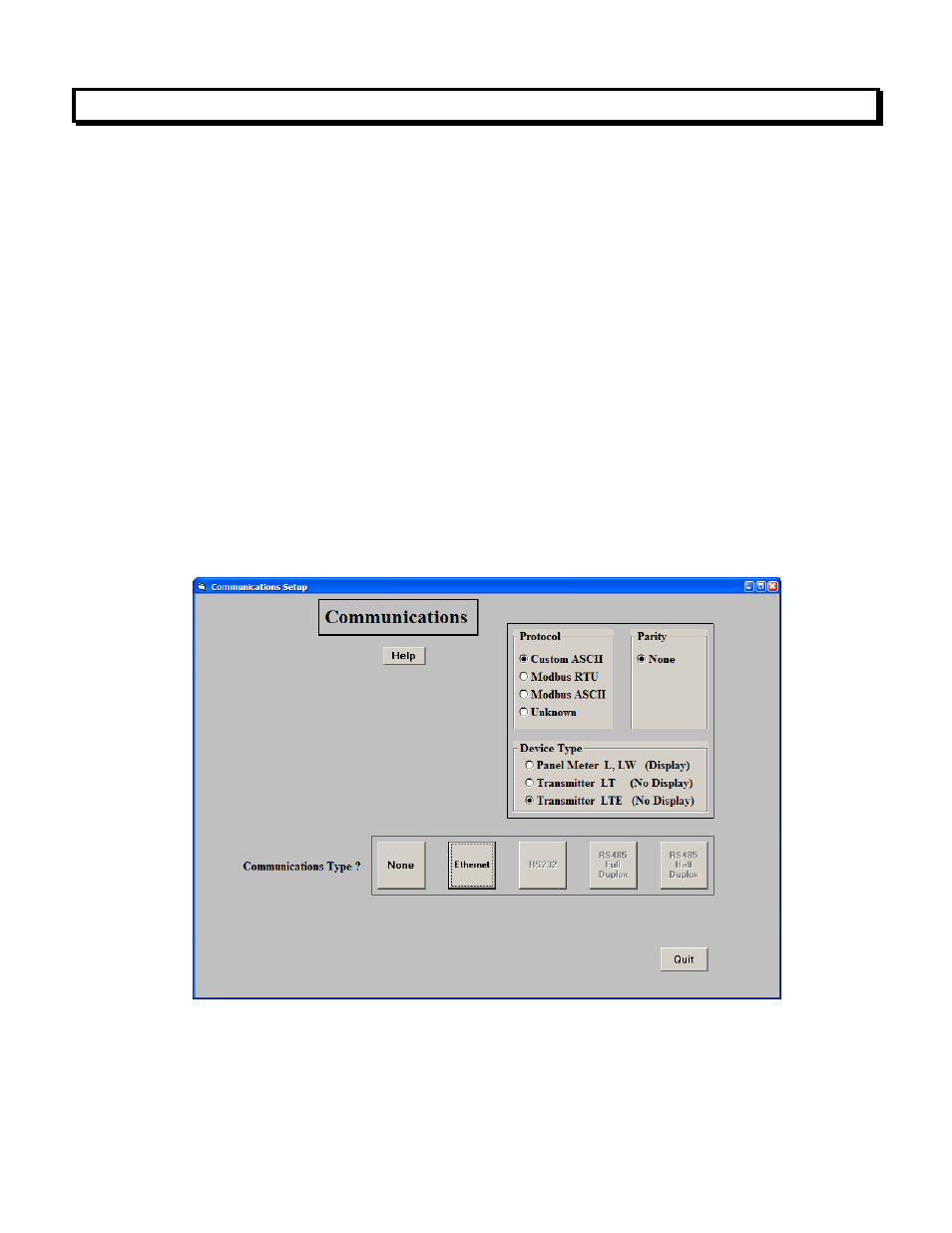

Communications Setup
screen will appear.
In the Communications Setup screen, select
Transmitter LTE
as the Device Type,
Ethernet
as
the Communication Type, any of the protocols listed.
