- 7 -
as the Baud Rate. You will be able to change your protocol and baud rate later under the
Communication
setup tab. Click on
Establish

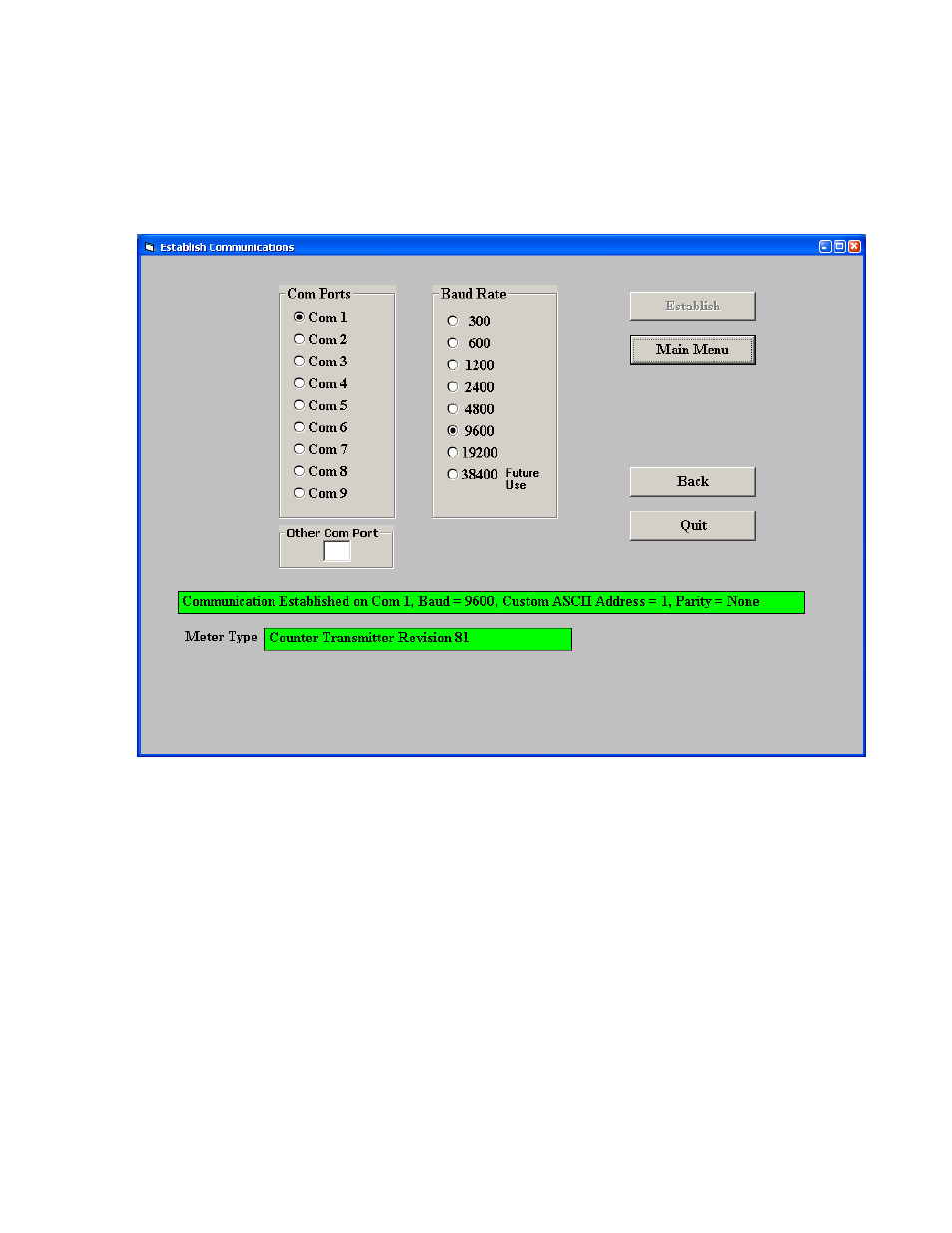

, and the two fields at the bottom of the screen should
turn green and display your communication parameters and the counter-transmitter revision level.
Click on
Main Menu
. The computer will remember your communication settings for the next time
that you run IS software.
The best way to learn IS software is to experiment with it. From the
Main Menu
, click on
Counter
=>
Get Setup
to retrieve (or get) the existing setup data from your counter-transmitter. Click on
View
=>
Setup
to bring up screens which allow you to easily edit the setup file using pull-down
menus and other selection tools. You can download (or put) your edited file into the transmitter by
clicking on
Counter
=>
Put Setup
. You can save your setup file to disk by clicking on
File
=>
Save
Setup
and retrieve a previously saved file from disk by click on
File
=>
Open
.
After selecting a screen input field, pressing the
F1
key will bring up detailed help information for
that field.
