Laurel Electronics LTS6 - Manual User Manual
Page 6
-
- 6 -
7. PROGRAMMING YOUR TRANSMITTER
OVERVIEW
Serial input transmitters are programmed using a PC with an RS232 port and Instrument Setup
(IS) software, which provides a graphical user interface. The software allows uploading, editing,
downloading and saving of setup data.
CONNECTING TO YOUR PC
Use a 3-wire RS232 cable (P/N CBL04) to connect your transmitter to the COM port of your PC.
Download the file
ISx_x_x.exe
from our website and double-click on the file name. Click on “Install
Instrument Setup Software” and follow the prompts. To launch IS software, press on
Start =>
Programs => IS2 => Instrument Setup
or on the desktop icon that you may have created. Following
a brief splash screen, the
Communications Setup
screen will appear.

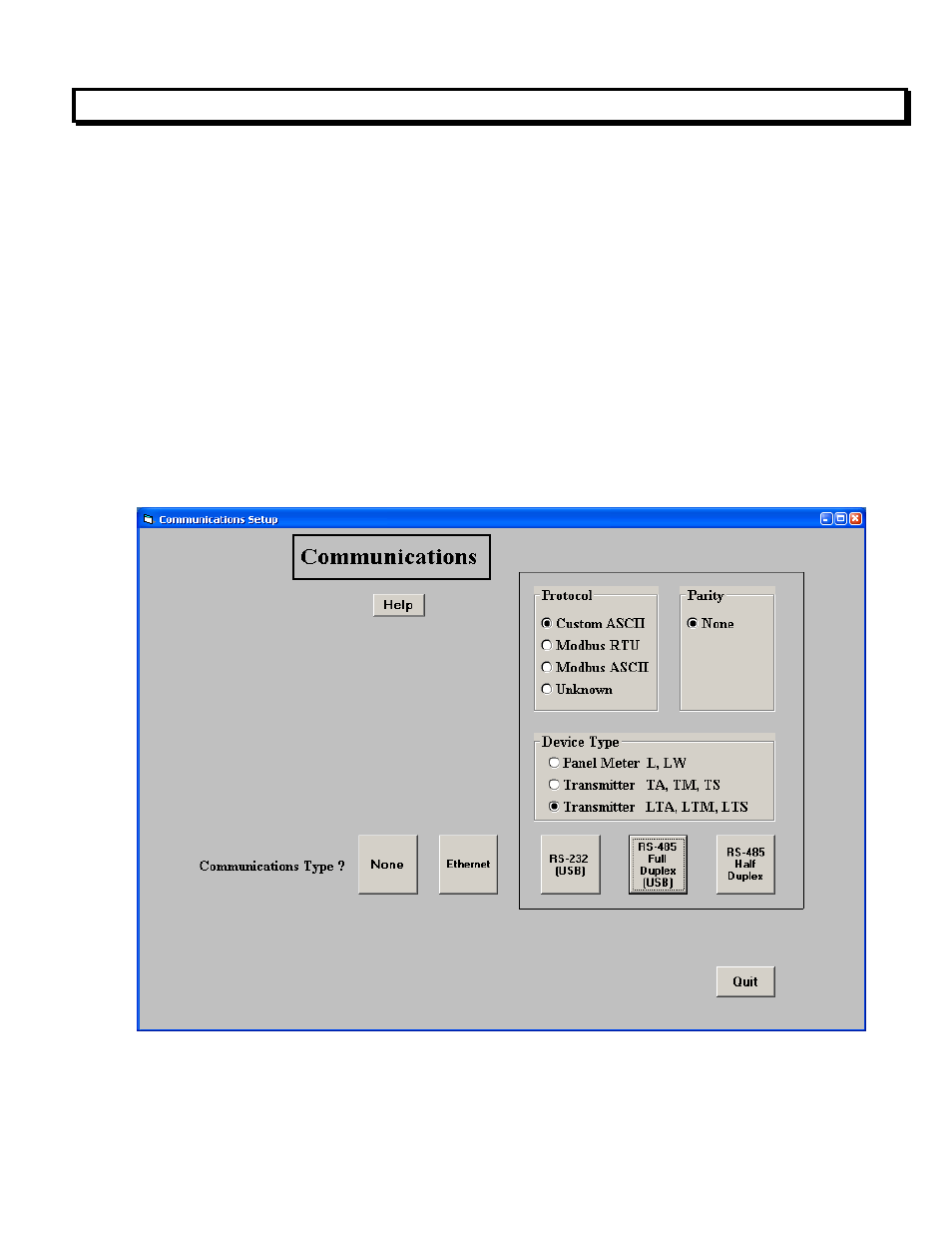

ESTABLISHING COMMUNICATIONS
In the
Communications Setup
screen, select
Custom ASCII
as the Protocol, as this is the factory
default setting. Select
Transmitter LTA, LTM, LTS
as the Device Type. Then click on the
RS-232
(USB)
button. In the resulting
Establish Communications
screen, select your Com Port and
9600
