Impulse 8012eS User Manual
Pci express, Features
www.sealevel.com > Tel: 864.843.4343 > [email protected]
Features
Eight highly-reliable Reed relay outputs (SPST)
>
Eight optically isolated inputs
>
Wide, non-polarized input range of 3 – 30 VDC
>
PCI Express X1 compliant with standard
>
height PC bracket
DC Power (+5V and +12V) and three ground
>
pins provided on connector
SeaIO Classic software supports Microsoft
>
Windows operating systems
PCI Express

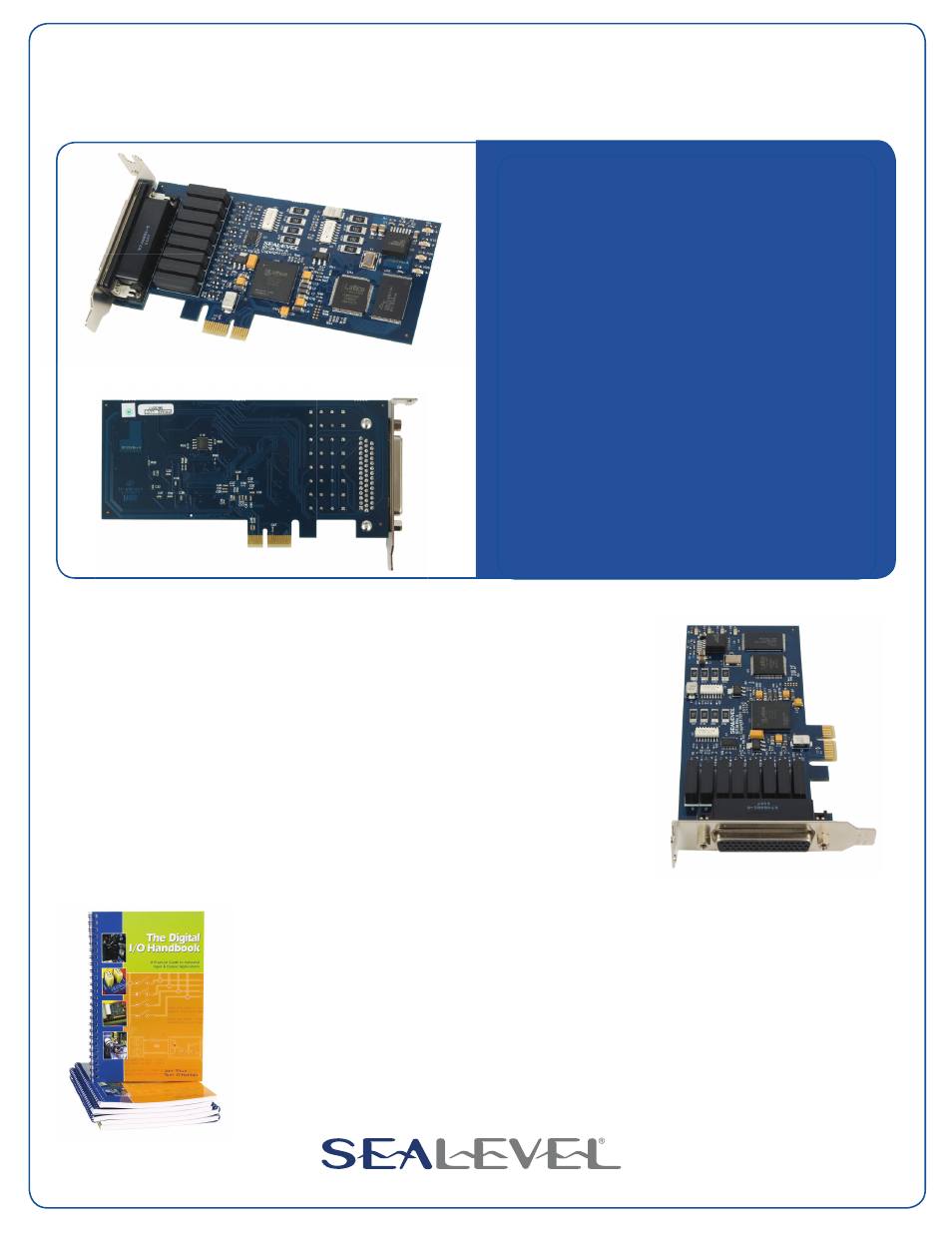

The 8012eS PCI Express digital interface provides eight optically
isolated inputs and eight Reed relay outputs (SPST). The isolated
inputs are non-polarized and rated for 3-30 VDC. Optical isolation
protects the PC and other sensitive equipment from the voltage
spikes and ground loop currents that are common to industrial
environments. The Reed relays provide high quality, long-life, dry
contact switch closures suitable for low-current applications. The
relays are normally open and close when energized. The board is PCI
Express X1 compliant and is compatible with any PCI Express slot.
The 8012eS is for use in standard height PCI Express slots only.
Order the 8012e if you have a low profile PCI Express slot. Sealevel’s
SeaIO Classic software drivers and utilities make installation and
operation easy using Microsoft Windows operating systems.
8 Reed Relay Output / 8 Isolated Input Digital Interface
The Digital I/O Handbook
A Practical Guide to Industrial Input and Output Applications
Get a jumpstart on your digital I/O development with The Digital I/O Handbook that
will provide helpful information that you will use again and again. Visit www.sealevel.
com/store/ref101 for more details and to read featured chapters.
