Impulse PICO-HD01 - Manual

05-3
05
www.aaeon.com
Features
Pi
co
-I
TX
B
oar
ds
Specifications
PICO-HD01
■ ■ Onboard AMD G-Series T40E/T40R Single/Dual Processor
■ ■ AMD G-Series CPU + A50M
■ ■ 204-pin DDR3 1066MHz SODIMM x 1, Up to 4GB
■ ■ Gigabit Ethernet x 1, RJ-45 x 1
■ ■ CRT, 18-bit Single Channel LVDS, Mini HDMI
■ ■ 2CH HD Audio
■ ■ SATA 3.0Gb/s x 1, mSATA (Half-Size) Slot x 1 (Shared with
Mini Card)
■ ■ USB 2.0 x 5, COM x 2, 4-bit Digital I/O
■ ■ +12V Operating
Pico-ITX Fanless Board With HDMI and AMD G-Series T40E/T40R Processor
• 170204010S
MB Power Cable
• 1709070500
SATA data Cable
• 1702150155
SATA Power Cable
• 9657666600
Jumper Cap
• Product DVD
• PICO-HD01 w/Heatsink
Packing List
System
Form Factor Pico-ITX Board
Processor AMD G-Series T40E/T40R 1GHz
System Memory 204-pin DDR3 1066MHz SODIMM x 1, up to 4GB
Chipset AMD G-Series +A50M
I/O Chipset Fintek F81801U-I
Ethernet Realtek 8111E for 10/1000/1000Base-TX, RJ-45 x 1
BIOS AMI-32Mb ROM
Wake On LAN Yes
Watchdog Timer Programmable 255 level System Reset
H/W Status Monitoring Vcore, +1.5V_DDR
Expansion Interface Mini Card(Half size), 4-bit DIO
Battery Lithium battery
Power Requirement +12V, AT/ATX (default)
Power Consumption
(Typical) AMD G-Series T40E 1GHz, DDR3 1066MHz 4GB,
1.02A@+12V
Board Size 3.94"(L) x 2.756"(W) (100mm x 72mm)
Gross Weight 1.1 lb (0.5 Kg)
Operation Temperature 32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Operation Humidity 0% ~ 90% relative humidity, non-condensing
MTBF (Hours) 89,000
Display
Chipset AMD G-Series T40E/T40R 1GHz
Resolution LVDS up to 1366 x 768 (18 bit) @ 60Hz; VGA & HDMI up to 1920 x 1200 @ 60Hz
LCD Interface 18-bit single channel LVDS with PWM function
I/O
Storage SATA x 1, mSATA x 1 (Shared with Mini Card control by BIOS)
Serial Port RS-232 x 1, RS-232/422/485 x 1(Internal Pin-Header X 2)
USB USB 2.0 x 5
Digital I/O Digital I/O 4-bit Digital I/O (Programmable, 2-in/2-out)
Audio Audio Buzzer x 1, HD Audio Code (Realtek ALC662) for Line-in/out & Mic x 1

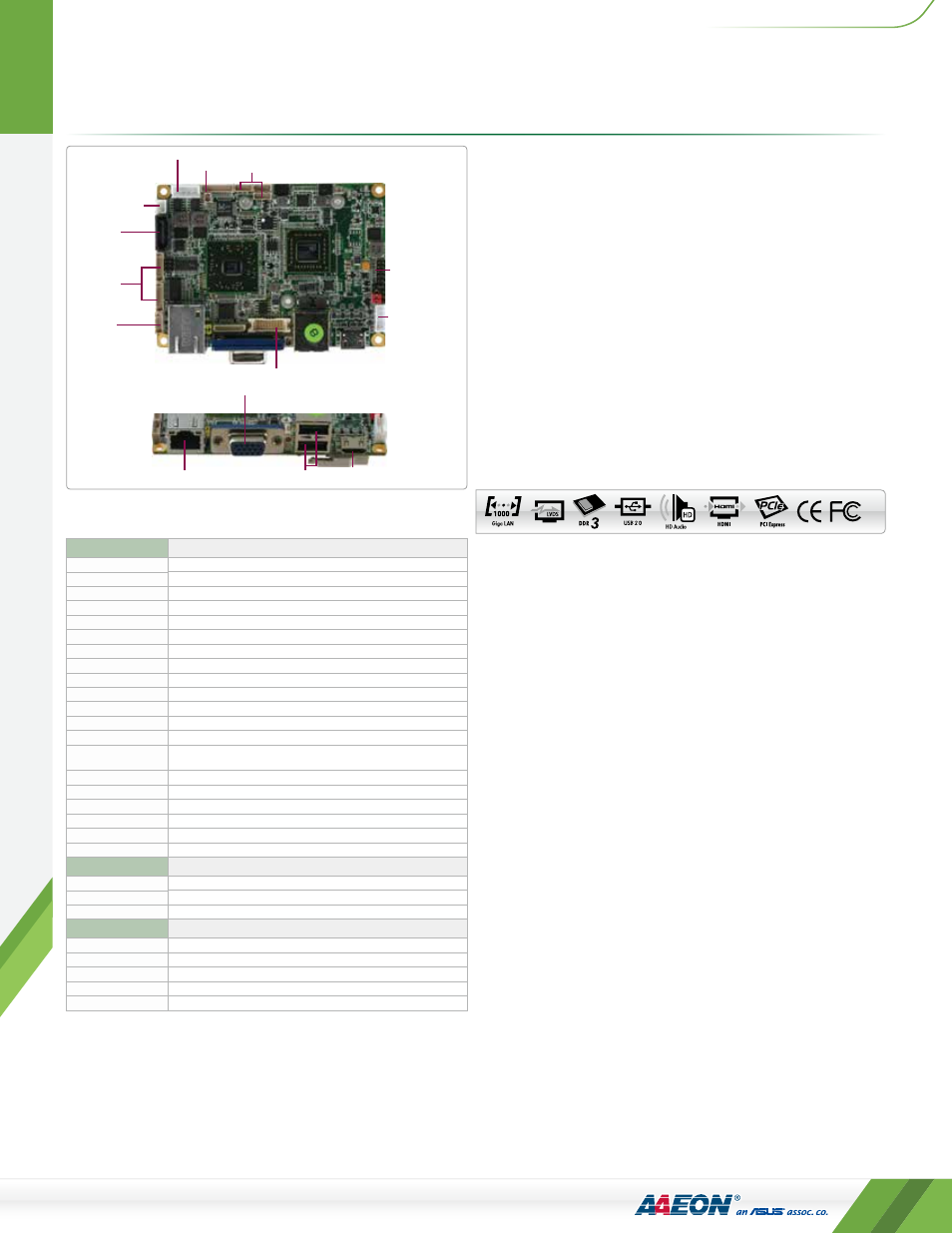

Power
Audio USB
Front Panel
LCD Inverter
LVDS
VGA
LAN USB Mini HDMI
DIO
COM
SATA
SATA Power
