Impulse USB-4761 - Manual

Industrial USB I/O Modules
Features

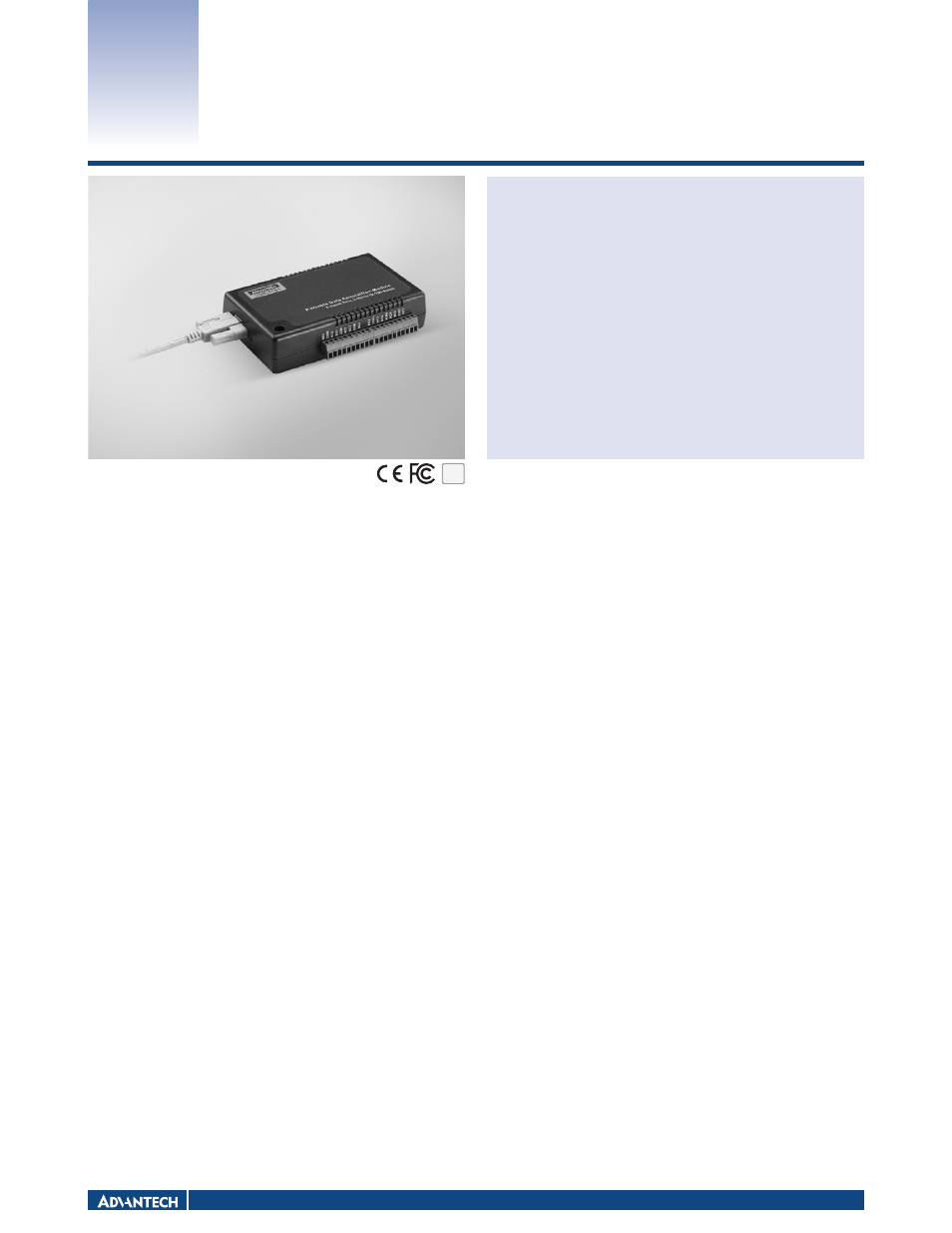

USB-4761
8-ch Relay and 8-ch Isolated
Digital Input USB Module
Specifications
Isolated Digital Input
ƒ Channels 8
ƒ Input Voltage Logic 0: 2 V max.
Logic 1: 5 V min. (30 V max.)
ƒ Isolation Protection 2,500 V
DC
ƒ Opto-Isolator Response 25 µs
Relay Output
ƒ Contact Rating 0.25 A @ 250 V
AC
, 2 A @ 30 V
DC
ƒ Max. Switching Power 62.5 VA, 60 W
ƒ Max. Switching Voltage 250 V
AC
, 220 V
DC
ƒ Max. Switching Current 5 A
ƒ Min. Switching Voltage 100 µV
ƒ Operate/Release Time typ. 3 / 2 ms, max. 5 / 4 ms
ƒ Resistance Contact: 50 m W max. @ 10 mA/20 mV
Insulation: 1 G W min. @ 500 V
DC
ƒ Life Expectancy 5 x 10 7 cycles typ. @ 10 mA/12 V
(Electrical) 2 x 10 5 cycles typ. @ 2000 mA/30 V
General
ƒ Bus Type USB 1.1/2.0
ƒ I/O Connector Onboard screw terminal
ƒ Dimensions (L x W x H) 132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
ƒ Power Consumption Typical: 5 V @ 60 mA
Max.: 5 V @ 400 mA
ƒ Operating Temperature 0 ~ 60°C (32 ~ 140°F) (IEC 68-2-1, 2)
ƒ Storage Temperature -20 ~ 70°C (-4 ~ 158°F)
ƒ Storage Humidity 5 ~ 95 % RH, non-condensing (IEC 68-2-3)
Ordering Information
ƒ USB-4761-AE 8-ch Relay/Isolated Digital Input USB Module
Accessories
ƒ 1960004544 Wallmount Bracket
ƒ 1960005788 VESA Mount Bracket
Introduction
The USB-4761 is a relay actuator and isolated digital input module for USB bus. It provides 8 optically-isolated digital inputs with isolation protection of 2,500 V
DC
for collecting
digital inputs in noisy environments and 8 relay actuators for serving as on/off control devices or small power switches. For easy monitoring, each relay is equipped with one red LED
to show its on/off status. The USB-4761’s eight optically-isolated digital input channels are ideal for digital input in noisy environments or with floating potentials.
Rugged Protection
The USB-4761 digital input channels feature a rugged isolation protection for industrial, lab and machinery automation applications. It durably withstands voltage up to 2,500 V
DC
,
protecting your host system from any incidental harms. If connected to an external input source with surge-protection, the USB-4761 can offer up to a maximum of 2,000 V
DC
ESD
(Electrostatic Discharge) protection.
ƒ Compatible with USB 1.1/2.0
ƒ Portable
ƒ Bus-powered
ƒ 8 relay output channels and 8 isolated digital input channels
ƒ LED indicators to show activated relays
ƒ 8 Form C type relay output channels
ƒ High-voltage isolation on input channels (2,500 V
DC
)
ƒ High ESD protection (2,000 V
DC
)
ƒ Wide input range (5 ~ 30 V
DC
)
ƒ Interrupt handling capability
ƒ Detachable screw terminal on modules
ƒ Suitable for DIN-rail mounting
ƒ One lockable USB cable for secure connection included
RoHS
COMPLIANT
2002/95/EC
