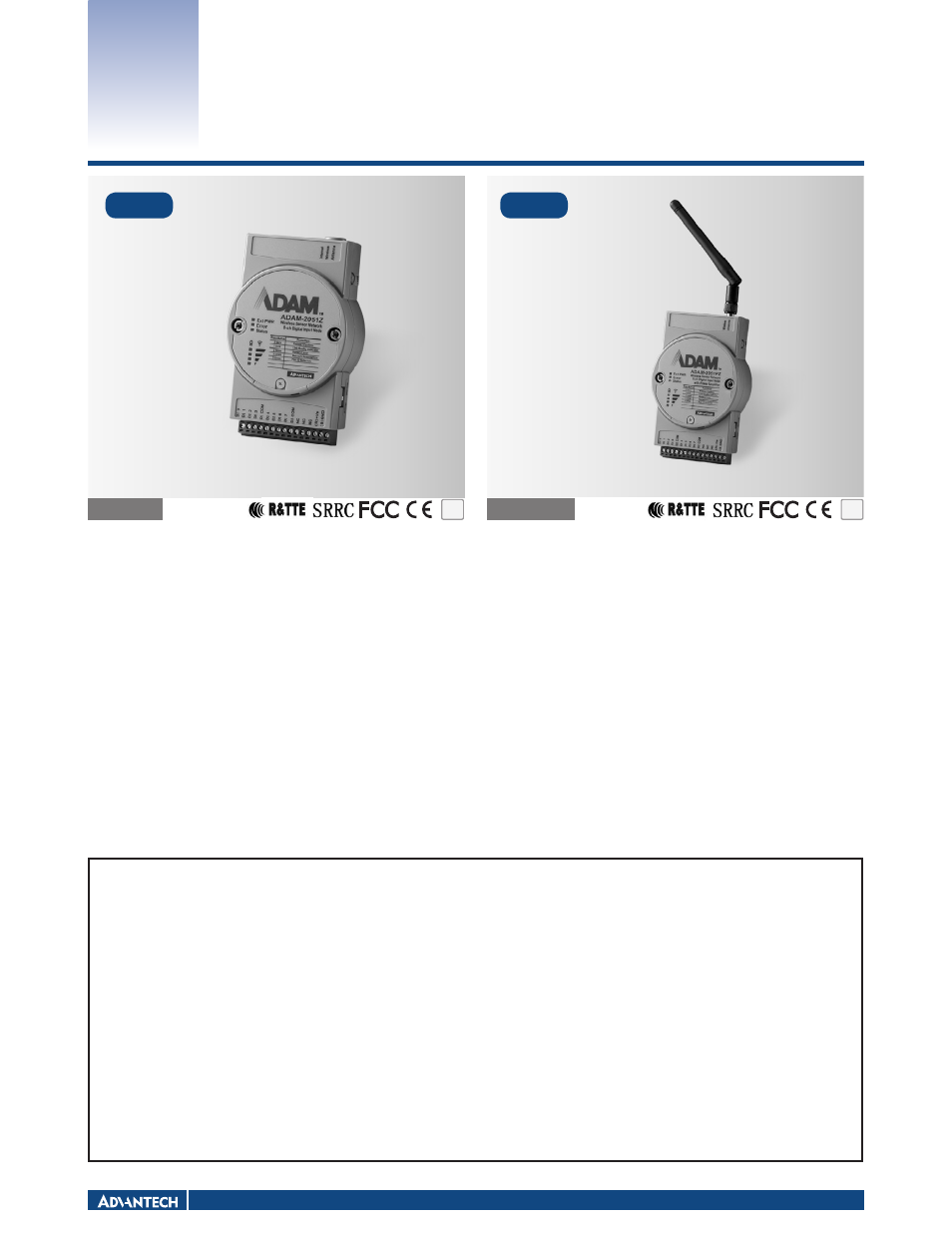

Impulse ADAM-2051PZ - Manual

M2M I/O Modules
Wireless 8-ch Digital Input Node
Wireless 8-ch Digital Input Node with
Power Amplifier
Specifications
Digital Input
ƒ Channels 8
ƒ Input Resistance 10 Kohm
ƒ Input Level Logic Level 0 0~0.8 Vmax
Logic Level 1 2.0 Vmin~5.0 Vmax
Supports wet and dry contacts
ADAM-2051Z
ADAM-2051PZ
Specifications
Digital Input
ƒ Channels 8
ƒ Input Resistance 10 Kohm
ƒ Input Level Logic Level 0 0~0.8 Vmax
Logic Level 1 2.0 Vmin~5.0 Vmax
Supports wet and dry contacts
Common Specifications
Wireless Communication
ƒ IEEE Standard IEEE 802.15.4
ƒ Modulation Type DSSS (OQPSK)
ƒ Frequency Band ISM 2.4 GHz
(2.4 GHz ~ 2.4835 GHz)
ƒ Channels 11 - 26
ƒ RF Data Rate 250 Kbps
ƒ Transmit Power Typ. ADAM-2051Z: Typ. 3 ± 1 dBm
ADAM-2051PZ: Typ. 19 ± 1 dBm
ƒ Receiver Sensitivity -97 dBm
ƒ Topology Star / Tree / Mesh
ƒ Outdoor Range ADAM-2051Z: 110 m
ADAM-2051PZ: 1000 m
ƒ Function End Device
Ordering Information
ƒ ADAM-2051PZ Wireless 8-ch Digital Input Node with Power Amplifier
General
ƒ Connectors 1 x plug-in terminal block (#14 ~ 22 AWG)
ƒ Power Input Unregulated 10 ~ 30 V
DC
ƒ Battery Input 2 x AA Alkaline
ƒ Power Consumption 0.3 W @ 24 V
DC
Battery AA * 2
380 uW @ 3 V
DC
(1 minute Tx Interval)
220 uW @ 3 V
DC
(2 minute Tx Interval)
130 uW @ 3 V
DC
(5 minute Tx Interval)
Environment
ƒ Operating Temperature
External Power -20°C ~ 70°C (-4°F ~ 157.9°F)
Battery Power 0°C ~ 50°C (32°F ~ 122°F)
ƒ Storage Temperature -40°C~ 85°C (-40°F ~ 184°F)
ƒ Operating Humidity 20~95% RH
ƒ Storage Humidity 0~95% RH
Ordering Information
ƒ ADAM-2051Z Wireless 8-ch Digital Input Node
NEW NEW
ADAM-2051PZ ADAM-2051Z RoHS
COMPLIANT
2002/95/EC
RoHS
COMPLIANT
2002/95/EC
