Specifications
Analog Input
ƒ Channels 8 differential
ƒ Resolution 16 bits
ƒ Max. Sampling rate 250 kS/s per channel
ƒ FIFO Size 8K samples (shared by all AI channels)
ƒ Overvoltage Protection 30 Vp-p
ƒ Sampling Mode Delay to Start, Delay to Stop, None
ƒ Trigger Source Software, Digital, Analog
ƒ Input Range (V, software programmable) & Absolute Accuracy
Bipolar ±10 ±5 ±2.5 ±1.25
Absolute Accuracy (% of FSR)* 0.04 0.04 0.06 0.08
* ±1 LSB is added as the derivative for absolute accuracy
Analog Output (PCI-1706U only)
ƒ Channels 2
ƒ Resolution 12 bits
ƒ Output Rate Static update
ƒ Output Range (V/A, software programmable)
Voltage 0 ~ +10V, 0 ~ +5 V, -5V~+5V -10V~+10V
Current 0~20mA,0~24mA,4~20mA
ƒ Slew Rate 1 V/μs , 2 mA/μs
ƒ Driving Capability 10 mA
ƒ Output impedance 5 Ω ( max)
ƒ Operation Mode Software polling
ƒ Accuracy ±1LSB
Digital Input
ƒ Channels 16 (Share with Output)
ƒ Compatibility 5 V/TTL
ƒ Input Voltage Logic 0: 0.8V max: Logic 1: 2.0V min

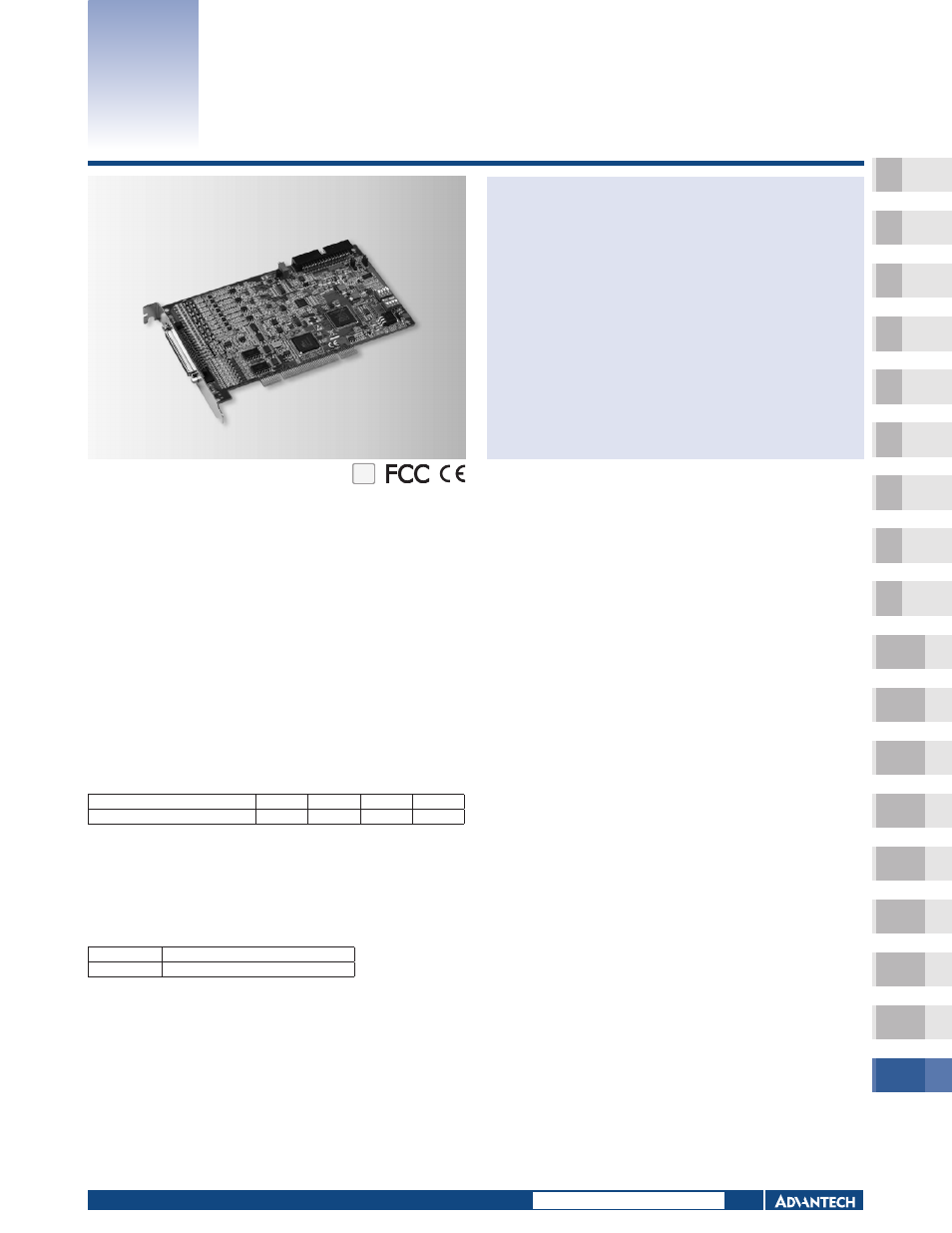

PCI-1706U/UL
ƒ 8 differential analog inputs
ƒ 8 A/D converters simultaneously sampling
ƒ 16-bit A/D converter, with up to 250kHz sampling rate for each channel
ƒ Programmable gain
ƒ Onboard FIFO memory up to 8K Sample
ƒ Multiple A/D triggering modes
ƒ Programmable pacer/counter
ƒ BoardID™ switch
ƒ Universal PCI Bus (supports 3.3V or 5V PCI bus signals)
250 kS/s, 16-bit, Simultaneous 8-ch
Universal PCI Multifunction Card
Digital Output
ƒ Channels 16 (Share with Input)
ƒ Compatibility 5 V/TTL
ƒ Output Voltage Logic 0: 0.4V max: Logic 1: 2.4V min
ƒ Output Capability Sink: 0.8 mA @ 0.4V
Source: -0.4mA @ 2.4V
Timer/Counter
ƒ Channels 2
ƒ Resolution 32 bits
ƒ Mode IN:Event Counting, Frequency In, PWM In
OUT:OneShot, Pulse Out, PWM Out
ƒ Compatibility 5 V/TTL
ƒ Max. Input Frequency 10 MHz
ƒ Reference Clock Internal: 20 MHz
External Clock Frequency: 1 Hz ~ 10 MHz
General
ƒ Bus Type Universal PCI V2.2
ƒ I/O Connector 1 x 68-pin SCSI female connector
ƒ Dimensions (L x H) 175 x 100 mm (6.9" x 3.9")
ƒ Power Consumption Typical: 5 V @ 850 mA: Max.: 5 V @ 1 A,
ƒ Operating Temperature 0 ~ 60°C (32 ~ 140°F) (refer to IEC 60068-2-1,2)
ƒ Storage Temperature -20 ~ 70°C (-4 ~ 158°F)
ƒ Storage Humidity 5 ~ 95% RH non-condensing (refer to IEC 60068-2 -3)
Ordering Information
ƒ PCI-1706U 250 KS/s, 16-bit Simultaneous Multi. Card
ƒ PCI-1706UL 250 KS/s, 16-bit Simultaneous Multi. Card w/o AO
ƒ PCL-10168-1 68-pin SCSI Shielded Cable, 1 m
ƒ PCL-10168-2 68-pin SCSI Shielded Cable, 2 m
ƒ ADAM-3968 68-pin DIN-rail SCSI Wiring Board
RoHS
COMPLIANT
2002/95/EC
Introduction
PCI-1706U is an advanced high-performance multifunction card based on the Universal PCI Bus. With a large FIFO of 8K Sample, the maximum sampling rate of PCI-1706U is
up to 250 kS/s with 8 A/D converters simultaneously sampling on each channel. If more than 8 analog input channels are required, multiple cards can be synchronized through the
Device-to-Device Bus to support more AI channels simultaneously sampling. The PCI-1706U has two 12-bit D/A output channels, 16 digital input/output channels, and two 32-bit
Time/counter channels so that it can provide specific functions for different application requirements.
