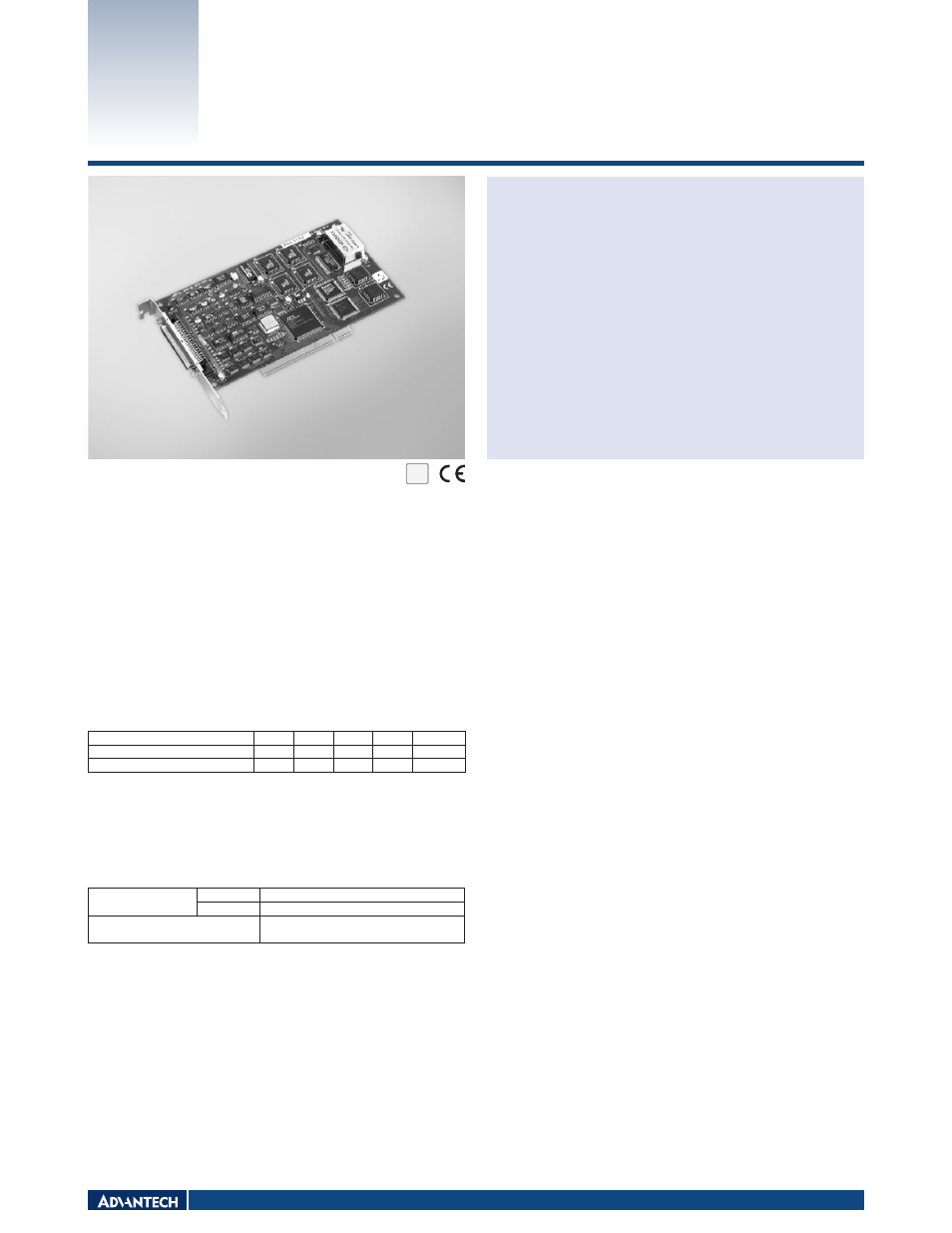

Data Acquisition Boards
Features
RoHS
COMPLIANT
2002/95/EC
Specifications
Analog Input
ƒ Channels 16 single-ended/ 8 differential (software programmable)
ƒ Resolution 12 bits
ƒ Max. Sampling Rate Multi-channel, single gain: 1 MS/s
Multi-channel, multi gain: 600 kS/s
Multi-channel, multi gain, unipolar/bipolar: 400 kS/s
ƒ FIFO Size 1,024 samples
ƒ Overvoltage Protection 30 Vp-p
ƒ Input Impedance 100 M W/10 pF (Off), 100 MW/100 pF (On)
ƒ Sampling Modes Software, onboard programmable pacer and external
ƒ Trigger Modes Pre-trigger, post-trigger, delay-trigger and about-
trigger
ƒ Input Range (V, software programmable)
Unipolar N/A 0 ~ 10 0 ~ 5 0 ~ 2.5 0 ~ 1.25
Bipolar ±10 ±5 ±2.5 ±1.25 ±0.625
Accuracy (% of FSR ±1LSB) 0.1 0.1 0.2 0.2 0.4
Analog Output (PCI-1712 only)
ƒ Channels 2
ƒ Resolution 12 bits
ƒ Output Rate 1 MS/s
ƒ FIFO Size 32,768 samples
ƒ Output Range (V, software programmable)
Internal Reference
Bipolar ±5, ±10
Unipolar 0 ~ 5, 0 ~ 10
External Reference
0 ~ +x V @ +x V (-10 ≤ x ≤ 10)
-x ~ +x V @ +x V (-10 ≤ x ≤ 10)
ƒ Slew Rate 20 V/µs
ƒ Driving Capability 10 mA
ƒ Output Impedance 0.1 W max.
ƒ Operation Mode Software polling, continuous output and waveform
output
ƒ Accuracy INLE: ±1 LSB
DNLE: ±1 LSB (monotonic)
Digital Input
ƒ Channels 16
ƒ Compatibility 5 V/TTL
ƒ Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Digital Output
ƒ Channels 16
ƒ Compatibility 5 V/TTL
ƒ Output Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
ƒ Output Capability Sink: 8.0 mA @ 0.8 V
Source: -0.4 mA @ 2.0 V
Pacer/Counter
ƒ Channels 3
ƒ Resolution 16 bits
ƒ Compatibility 5 V/TTL
ƒ Max. Input Frequency 10 MHz
ƒ Reference Clock Internal: 10 MHz, 1 MHz, 100 kHz, 10 kHz
External Frequency: 10 MHz max.
General
ƒ Bus Type PCI V 2.2
ƒ I/O Connector 1 x 68-pin SCSI female connector
ƒ Dimensions (L x H) 175 x 100 mm (6.9" x 3.9")
ƒ Power Consumption Typical: 5 V @ 850 mA, 12 V @ 600 mA
Max.: 5 V @ 1.0 A, 12 V @ 700 mA
ƒ Operating Temperature 0 ~ 60° C (32 ~ 140° F) (refer to IEC 68-2-1, 2)
ƒ Storage Temperature -20 ~ 85° C (-4 ~ 185° F)
ƒ Storage Humidity 5 ~ 95% RH non-condensing (refer to IEC 68-2-3)
Ordering Information
ƒ PCI-1712 1 MS/s, 12-bit High-speed Multifunction PCI Card
ƒ PCI-1712L 1 MS/s, 12-bit High-speed Multi. PCI Card w/o AO
Accessories
ƒ PCLD-8712 DIN-rail Wiring Board for PCI-1712/L
ƒ PCL-10168-1 68-pin SCSI Shielded Cable, 1 m
ƒ PCL-10168-2 68-pin SCSI Shielded Cable, 2 m
ƒ ADAM-3968 68-pin DIN-rail SCSI Wiring Board
PCI-1712/L
ƒ 16 single-ended or 8 differential or a combination of analog inputs
ƒ 12-bit A/D converter, with up to 1 MHz sampling rate
ƒ Programmable gain
ƒ Automatic channel/gain scanning
ƒ Onboard FIFO memory (AI: 1,024 samples AO: 32,768 samples)
ƒ Two 12-bit analog output channels with continuous waveform output function
(PCI-1712 only)
ƒ 16-ch digital input and 16-ch digital output
ƒ Three 16-bit programmable multifunction counter/timers on 10 MHz
ƒ Auto-calibration (AI/AO)
ƒ PCI-Bus mastering data transfer
ƒ Pre-, post-, about- and delay-trigger data acquisition modes for analog input
channels
ƒ Flexible triggering and clocking capabilities
1 MS/s, 12-bit, 16-ch PCI
Multifunction Card
