Impulse SCM7B22 User Manual
Scm7b22, Isolated bipolar voltage output modules, Scm7b
Isolated Process Control Signal Conditioning Products
SCM7B
For information call 800-444-7644
68
SCM7B22
Isolated Bipolar Voltage Output Modules

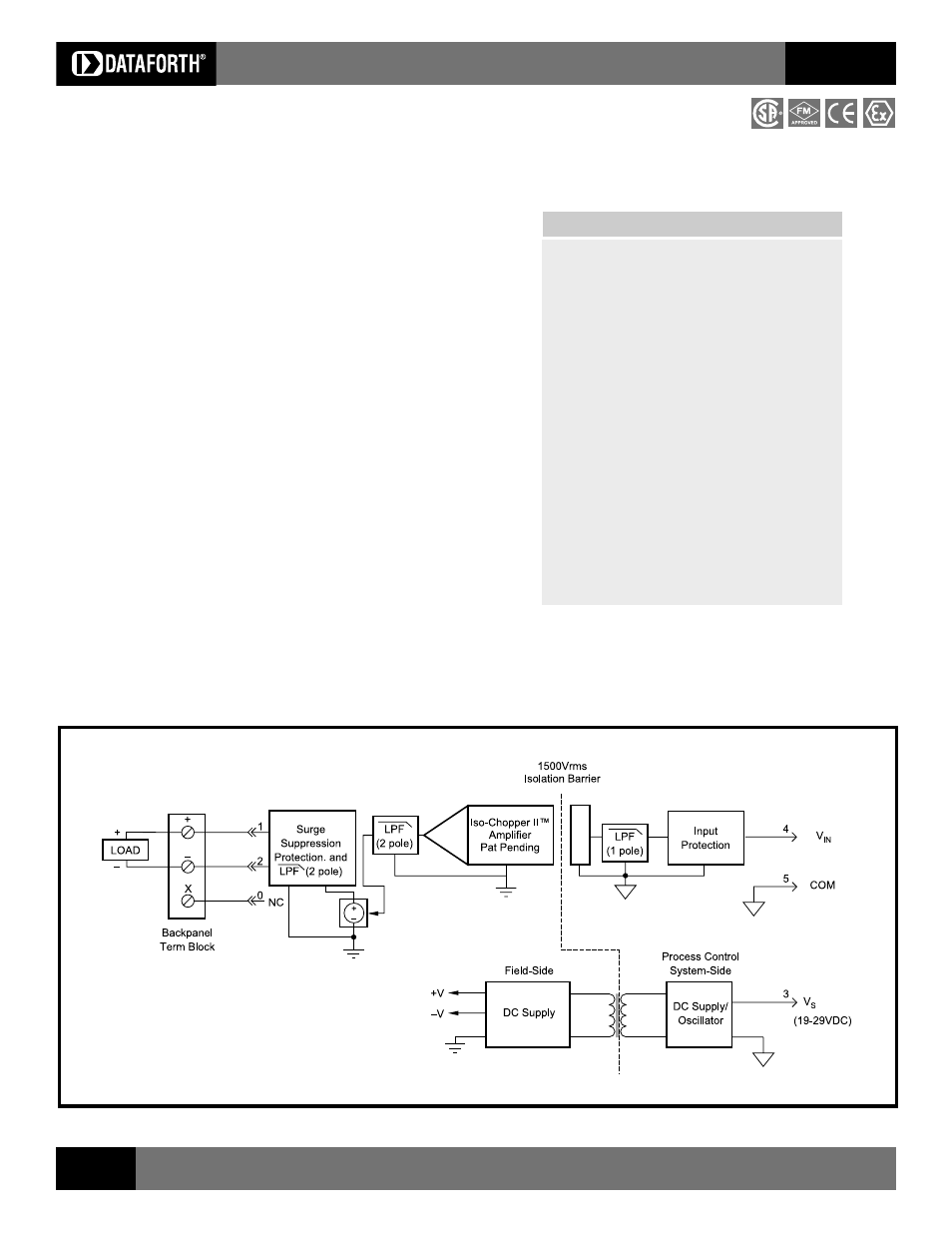

Figure 1: SCM7B22 Block Diagram
▲
Features
Accepts High Level Input to ±10V
Provides High Level Output to ±10V
1500Vrms Transformer Isolation
Accuracy, ±0.03% of Span Typical,
±0.1% Max
ANSI/IEEE C37.90.1 Transient Protection
Output Protected to 120Vrms Continuous
Input Protected to ±35VDC
Noise, 2mV Peak (5MHz), 1mV RMS
(100kHz)
CMRR, 100dB
80dB Per Decade of Attenuation
Above 400Hz
Easy DIN Rail Mounting
CSA Certified, FM Approved
CE and ATEX Compliant
Description
SCM7B22 voltage output modules accept input signals in the ±10V range from
the process control system. The signal is isolated, buffered, and filtered to
provide a unity gain field voltage output (Figure 1).
These modules incorporate a five-pole filtering approach to maximize both time
and frequency response by taking advantage of both Thomson (Bessel) and
Butterworth characteristics. One pole of the filter is on the process control system
side of the isolation barrier; four are on the field side.
After the initial process control system-side filtering, the input signal is chopped
by a proprietary chopper circuit and transferred across the transformer isolation
barrier, suppressing transmission of common mode spikes and surges. The
signal is then reconstructed and filtered for field-side output.
Modules accept a wide 19 - 29VDC power supply range (+24VDC nominal).
Their compact packages (2.13"x1.705"x0.605" max) save space and are ideal
for high channel density applications. They are designed for easy DIN rail
mounting using any of the -DIN backpanels.
