Isolated Analog Signal Conditioning Products SCM5B
SCM5B
SCMVAS-Mnnn
High Voltage Attenuator Modules
Specifications
Input Range ±100Vpeak to ±700Vpeak (70VAC to 500VAC)
Input Voltage Maximum ±750Vpeak
Input Resistance 10M Ω
Accuracy ±0.03%
Stability ±50ppm/°C
Output Range ±1V
Output Resistance <100k Ω
Mechanical Dimensions 1.70"x 1.98"x 0.69"
(44mm x 51mm x 18mm)
Environmental
Operating Temp. Range –40°C to +85°C
ATEX Group II, Category 3 –20°C to +40°C
Storage Temp. Range –40°C to +85°C
Relative Humidity 0 to 95% noncondensing
Module
Typical at T
A
=+25°C
Ordering Information
Model Description
SCMVAS-PB8 Backpanel, 8-Channel
SCMVAS-PB8D Backpanel, 8-Channel, DIN Rail Mount
SCMVAS-PB16 Backpanel, 16-Channel
SCMVAS-PB16D Backpanel, 16-Channel, DIN Rail Mount
SCMVAS-M100 Attenuator Module ±100V Input (70VAC) ±141V Input (100VAC)
SCMVAS-M200 Attenuator Module ±200V Input (141VAC) ±283V Input (200VAC)
SCMVAS-M300 Attenuator Module ±300V Input (212VAC) ±424V Input (300VAC)
SCMVAS-M400 Attenuator Module ±400V Input (282VAC) ±566V Input (400VAC)
SCMVAS-M500 Attenuator Module ±500V Input (353VAC) ±707V Input (500VAC)
SCMVAS-M600 Attenuator Module ±600V Input (424VAC) Not Available
SCMVAS-M650 Attenuator Module ±650V Input (460VAC) Not Available
SCMVAS-M700 Attenuator Module ±700V Input (495VAC) Not Available
SCMVAS-MPT Attenuator Module, Pass-Thru 1-to-1
Model Description Input Range with V Isolation Module Input Range with True RMS Module
Accessories
SCMVAS-Mnnn

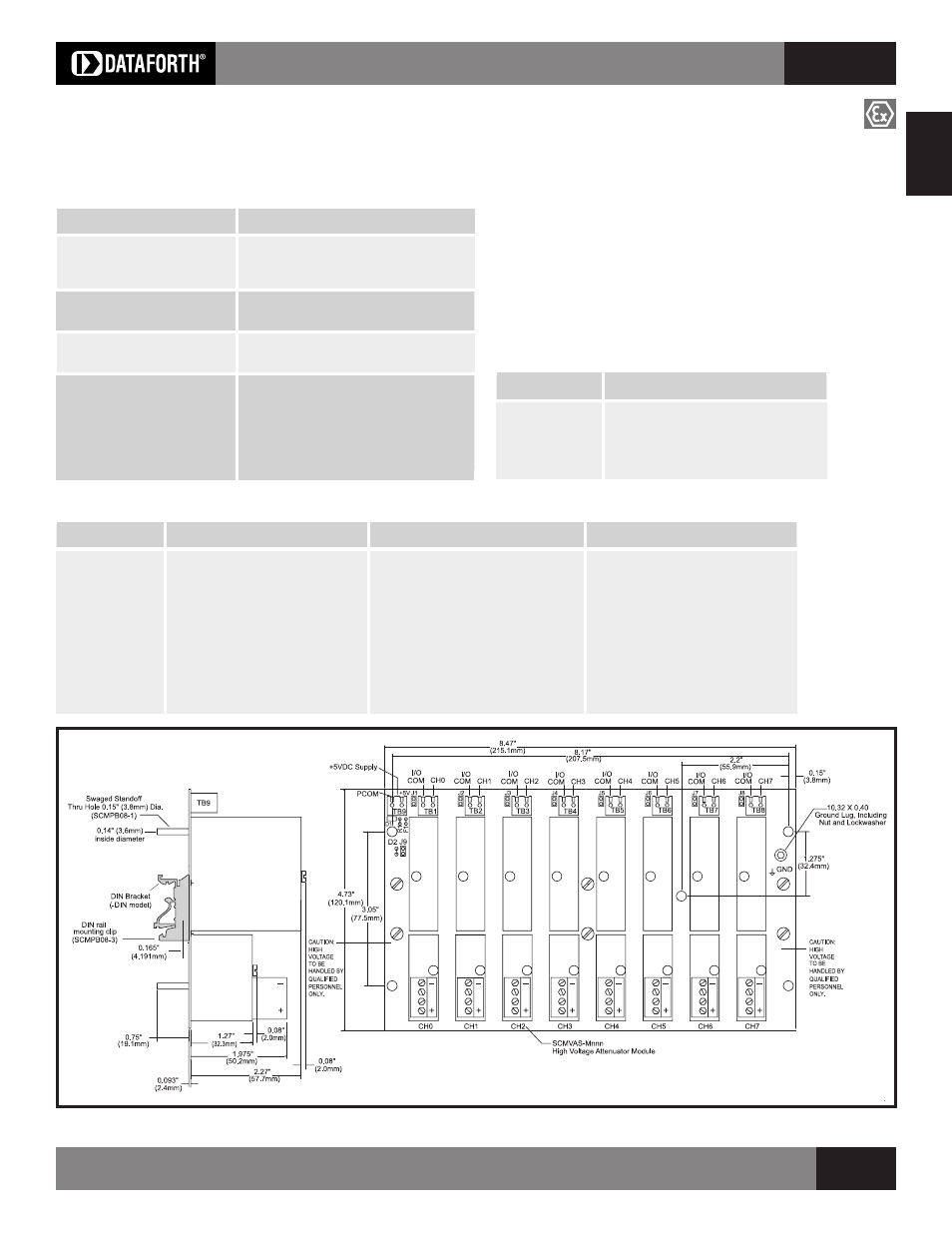

Figure 2: SCMVAS-PB8 Analog I/O Backpanel
