Dscp, Configurable transmitters – Impulse DSCP20 User Manual
Page 5
Configurable Transmitters
DSCP
For information call 800-444-7644
182

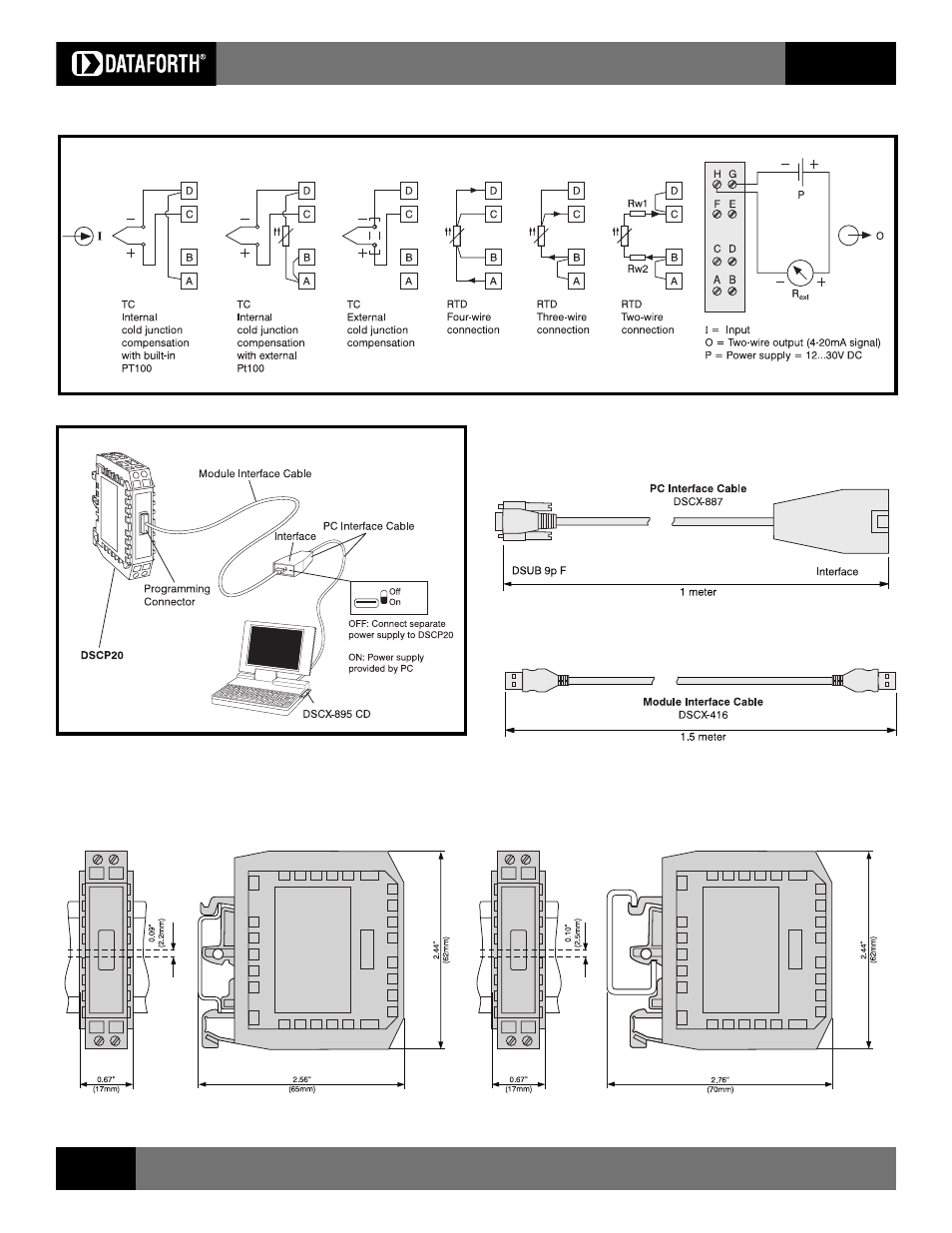

Electrical Connections
Dimensions
Table 5: Accessories and Spare Parts
DSCP20 Clipped onto a Top-Hat Rail EN 50-022-35 x 7.5
DSCP20 Clipped onto a Rail “G” EN 50-035-G32
Example of the set-up for programming a DSCP20 without the power supply.
For this case the switch on the interface must be set to “ON’.
Dimensions: inches (millimeters)
