Features
UNO-1150GH
UNO-1150GHE
Class I, Division 2 Certified AMD Geode™ LX
DIN-rail PC with 2 x LAN, 3 x COM
Class I, Division 2 Certified AMD Geode™ LX
DIN-rail PC with 2 x LAN, 3 x COM, PCI-104
Specifications
General
ƒ Certification CE, FCC Class A, UL, CCC
ƒ Hazardous Locations US: ANSI/ISA 12.12.01-2007 cUL: CSA 22.2 No.
213 M1987, Class I, Division 2, Groups A,B,C,D,
Hazardous Location, Temperature code: T3A, Ambient
Temperature Range: -10°C
≤ T
amb
≤ 60°C
ƒ Dimension (W x H x D) UNO-1150GH: 71 x 152 x 139 mm (2.8" x 6" x 5.5")
UNO-1150GHE: 96.5 x 152 x 139 mm (3.8" x 6" x 5.5")
ƒ Enclosure Aluminum + SECC
ƒ Mounting DIN-rail, Wallmount
ƒ Power Consumption 15 W (Typical)
ƒ Power Requirement 9 (Min.) ~ 36 (Max.) V
DC
(e.g +24 V @ 1 A) (Min. 24
W), AT
ƒ Weight UNO-1150GH: 1.6 kg
UNO-1150GHE: 2.0 kg
ƒ OS Support WES Windows XP Embedded, Windows 2000 & XP,
Windows CE 5.0/6.0, Linux QNX
ƒ System Design Fanless with no internal cabling
ƒ Remote Management Built-in Advantech DiagAnywhere agent on Windows
CE / XPe
System Hardware
ƒ CPU AMD Geode LX 800 (500MHz)
ƒ Memory Onboard 256 MB DDR SDRAM
ƒ Indicators LEDs for Power, IDE, LAN (Active, Status) and Serial
(Tx, Rx)
Buzzer for Diagnosis (programmable)
ƒ Keyboard/Mouse 1 x PS/2
ƒ Storage SSD: 1 x internal type I/II CompactFlash ® slot
HDD: 2.5" SATA HDD bracket (UNO-1150GHE)
ƒ PC/104 Slot 2x PCI-104 slot, supports 3.3 V & +5 V
(Only UNO-11150GHE, one PCI-104 while using HDD)
ƒ Mini PCI 1x MiniPCI (UNO-1150GHE only)
ƒ Display DB15 VGA connector, supports up to 1024 x 768 @ 60 Hz
ƒ Audio Line in, Line out
ƒ Watchdog Timer Programmable 256 level timer interval, 1 to 255 sec
I/O Interface
ƒ Serial Ports 2 x RS-232 (one pin header reserved), 2 x RS-
232/422/485 with DB9 connectors, Automatic RS-485
data flow control RS-232/422/485 ports support
hardware 128 byte FIFO
ƒ Serial Port Speed RS-232 port: 50 ~ 115.2 kbps
RS-232/422/485 port: RS-232, 300 ~ 115.2 kbps
RS-232/422/485 port: RS-422/485, 300 ~ 921.6 kbps
(Max)
ƒ LAN 2 x 10/100 Base-T RJ-45 ports
ƒ USB 2 x USB, OpenHCI, Rev. 1.1 compliant
ƒ Printer Port 1 x Printer Port pin head
*Note: This function is optional for project request
Environment
ƒ Ingress Protection IP40
ƒ Operating Temperature (IEC 60068-2-2, 100% CPU/ I/O loading)
-10 ~ 60°C (14 ~ 140°F)
ƒ Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
ƒ Operating Humidity 20 ~ 95% (non-condensing)
ƒ Storage Humidity 0 ~ 95% (non-condensing)
ƒ Shock Protection IEC 60068- 2-27
CompactFlash
® : 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
(Only for UNO-1150GHE)
ƒ Vibration Protection IEC 60068- 2-64 (Random 1 Oct./min, 1hr/axis.)
CompactFlash
® : 2 Grms @ 5 ~ 500 Hz
HDD: 1Grms@ 5 ~ 500 Hz (UNO-1150GHE)
Ordering Information
ƒ UNO-1150GH-G30E CID2 LX800 500 MHz, 256 MB DIN-rail PC
ƒ UNO-1150GHE-G30E CID2 LX800 500 MHz, 256 MB DIN-rail PC w/PCI-104
Accessories
ƒ UNO-FPM11-BE UNO-1100 Series VESA Mount kit
ƒ PCLS-DIAGAW10 Advantech Remote Monitoring & Diagnosis Utility
ƒ UNO-ANT11-AE Antenna kit for UNO-1100 Series
ƒ UL listed for Hazardous Locations: Class 1, Division 2
ƒ Onboard AMD Geode LX800 (500 MHz) CPU
ƒ One RS-232 and two RS-232/422/485 ports with automatic flow control.
ƒ Two 10/100 Base-T RJ-45 ports
ƒ Two USB, audio and internal CompactFlash ®
ƒ Compact size, small foot print, saves space and front accessible for easy
wiring
ƒ DIN-rail design for easy installation in field cabinet
ƒ Wide operating temperature range
ƒ Windows ® CE 5.0/6.0, Windows XP Embedded, and Linux ready solution
ƒ Fanless desing with no intemal cabling
ƒ Isolation between chassis and power ground
Introduction
In hazardous locations, devices are under potential danger from flammable gases, combustible dust, or ignitable fibers, creating the potential for fire and explosions. UNO-1150GH
and UNO-1150GHE are designed to be safely operated in these locations and are UL listed for Hazardous Locations with Class I, Division 2, groups A, B, C, D & T3A certification.
UNO-1150GH and UNO-1150GHE are DIN-rail mounted and provide several serial communication ports and Ethernet interfaces with a compact size to save space. They are also
front accessible for easy installation in field cabinets.
NEW

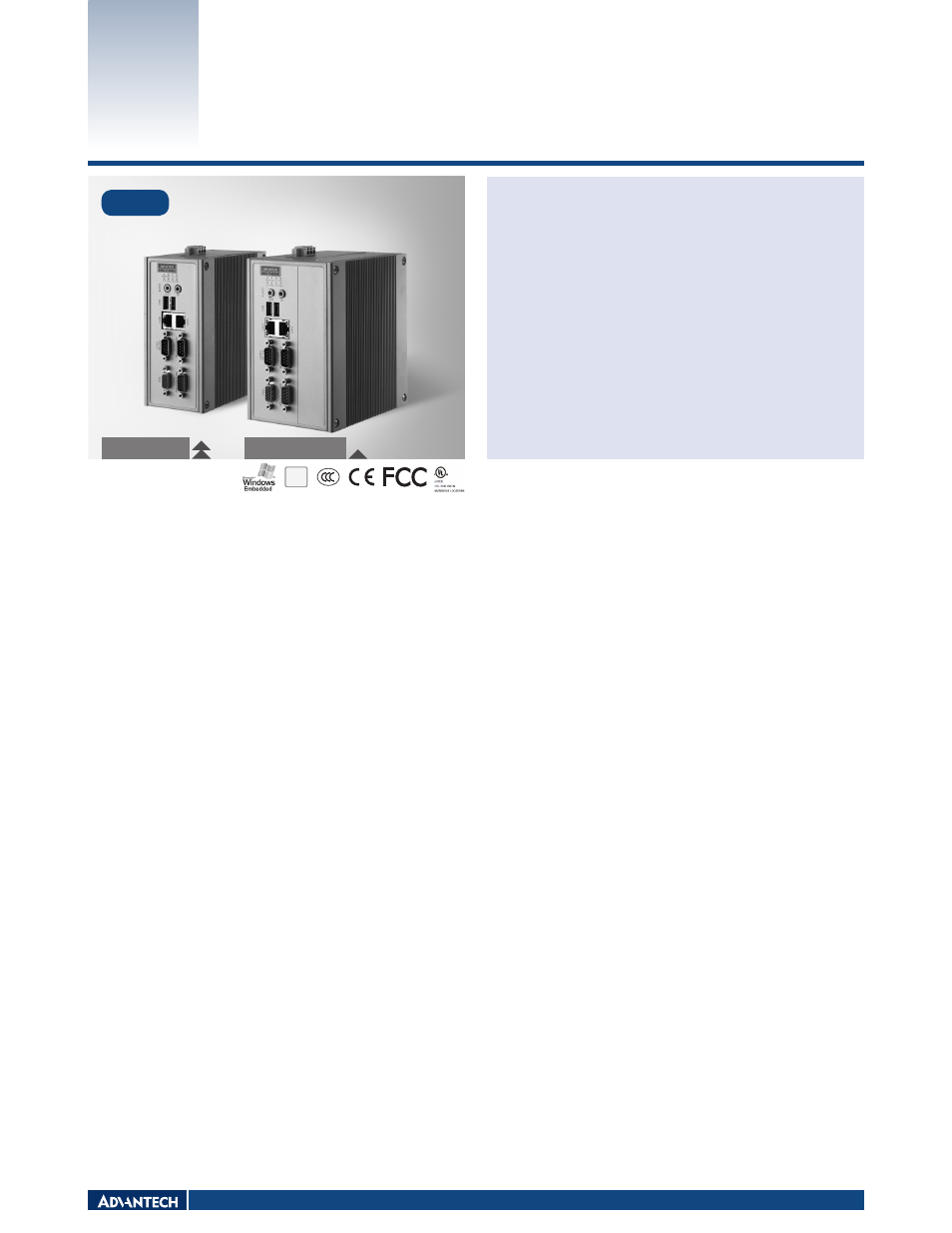

UNO-1150GH UNO-1150GHE
RoHS
COMPLIANT
