Features
Specifications
General
ƒ Certifications CE, FCC class A, UL, CCC
ƒ Dimensions (W x D x H) 188.8 x 106.5 x 35.5 mm (7.5" x 4.2" x 1.4")
ƒ Enclosure Aluminum
ƒ Mounting Wallmount, DIN-rail
ƒ Industrial Groundin Isolation between chassis and power ground
ƒ Power Consumption 15 W (Typical)
ƒ Power Requirements 9 ~ 36 V
DC
(e.g +24 V @ 1 A) (Min. 24 W), AT
ƒ Weight 0.8 kg
ƒ OS Support WES Windows XP Embedded, Windows 2000 & XP,
Windows CE 5.0 & 6.0, Linux, QNX
ƒ System Design Fanless design with no internal cabling
ƒ Remote Management Built-in Advantech DiagAnywhere agent on Windows CE /
XPe
System Hardware
ƒ CPU AMD Geode LX800 500MHz
ƒ Memory Onboard 256 MB DDR SDRAM
ƒ Indicators LEDs for Power, IDE, Diagnosis (programmable) and LAN
(Active, Status)
Buzzer for Diagnosis (programmable)
ƒ Keyboard/Mouse 1 x PS/2
ƒ Storage SSD: 1 x internal type I/II CompactFlash ® slot
HDD: expansion kit for 2.5" IDE HDD (Optional)
ƒ Display DB15 VGA connector, 1024 x 768 @ 60 Hz
ƒ Watchdog Timer Programmable 256 levels timer interval, from 1 to 255 sec
I/O Interface
ƒ Counter/Timer 2 x 16-bit: counter source: DI6 & DI7, Pulse output: DO6 &
DO7. Can be cascaded as one 32-bit counter/timer, Down
counting, preset counting value, interrupt
handling, Timer time base: 100/10/1 kHz,100 Hz
ƒ Digital Inputs 8 ch. wet contact 2,000 V
DC
isolation, 2,000 V
DC
ESD
protection, 70 V
DC
over-voltage protection
0 ~ 50 V
DC
input range and 10 kHz speed; Interrupt
handling

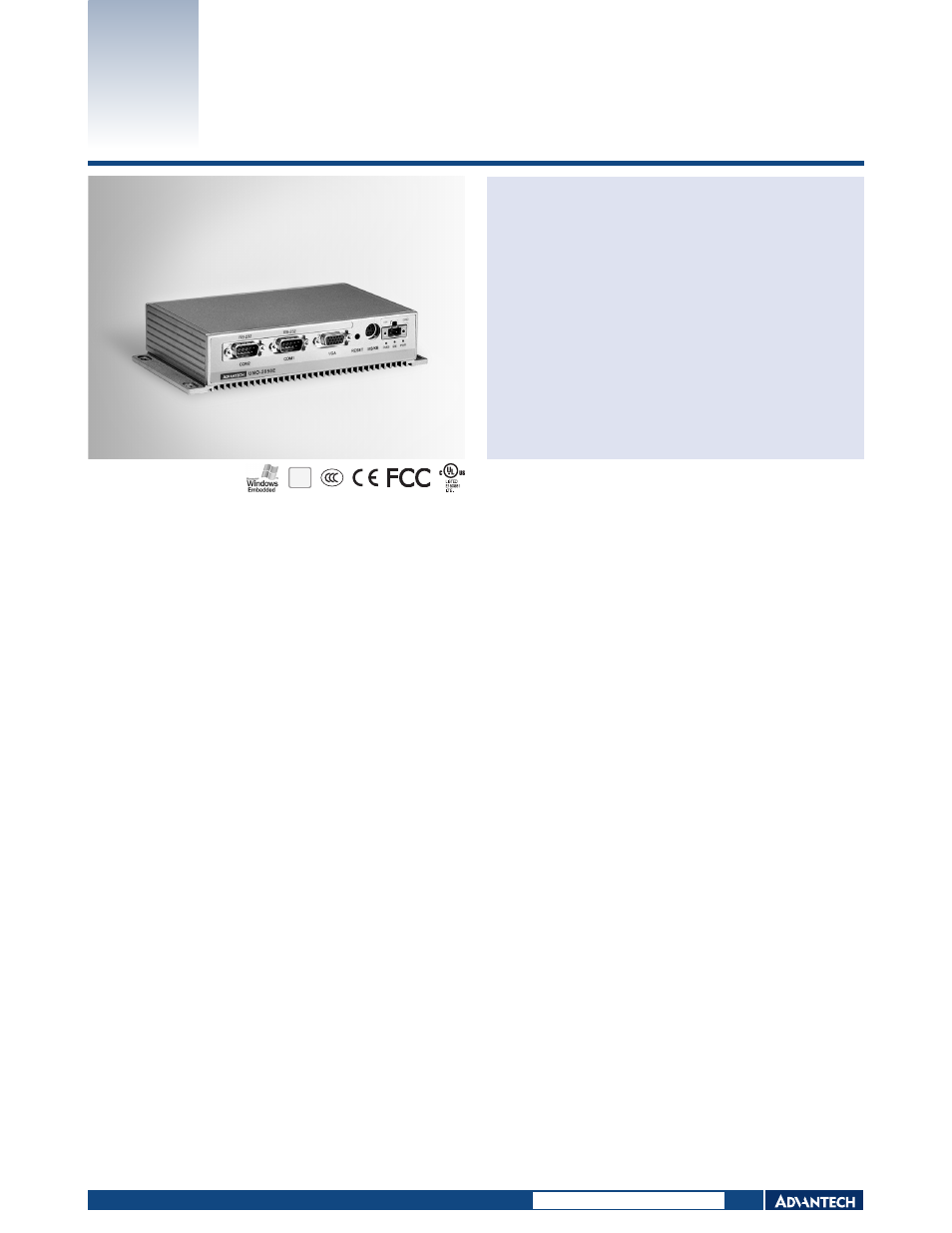

UNO-2050G
AMD Geode™ LX Automation Computer
with 2 x LAN, 4 x COM, 8 x DI, 8 x DO
ƒ Onboard AMD Geode LX800 500MHz CPU
ƒ Two RS-232 and two isolated RS-232/422/485 with automatic flow control
ƒ Two 10/100 Base-T RJ-45 ports
ƒ 8-ch Isolated DI and 8-ch Isolated DO with counter and timer
ƒ Windows ® CE 5.0 & 6.0, Windows XP Embedded SP2, and Linux ready
solution
ƒ Fanless design with no internal cabling
ƒ Isolation between chassis and power ground
Introduction
UNO-2050G is an X86-grade platform with dual LAN and 16-channel isolated digital I/O and timer/counter. In addition, it also provides two RS-232 and two isolated RS-232/422/485
communication ports with RS-485 automatic flow control functionality. Therefore, the UNO-2050G is an ideal solution for embedded controllers.
UNO-2050G is available with a pre-configured Windows CE image with optimized onboard device drivers. Microsoft Windows CE is a compact, highly efficient, real-time operating
system designed for embedded systems without mechanical HDD limitations. To expand storage capability, the UNO-2050G allows the addition of an external 2.5" HDD using
Advantech’s HDD expansion kit. It can be used for large data backup requirements and popular OS installations such as Microsoft Windows and Linux OS. Significant anti-vibration
(1G w/HDD) is maintained even with the mechanical HDD inside. UNO-2050G is the perfect embedded application ready platform that can shorten development time and offer a rich
networking interface to fulfill diverse application requirements.
ƒ Digital Outputs 8 ch. 2,000 V
DC
isolation and 200 mA max/channel sink
current. Keeps output status after system hot reset.
5 ~ 40 V
DC
output range and 10 kHz speed
ƒ LAN 2 x 10/100Base-T with RJ-45 port
ƒ Serial Ports 2 x standard RS-232 (COM1/COM2)
2 x isolated RS-232/422/485 (COM3/COM4)
Automatic RS-485 data flow control
RS-232/422/485 (COM3/COM4) with 2000 V
DC
EFT protection & 2000 V
DC
isolation
ƒ Serial Port Speed RS-232: 50 ~ 115.2 kbps (COM1/COM2)
50 ~ 230.4 kbps (COM3/COM4)
RS-422/485: 50 ~ 921.6 kbps (Max.)
Environment
ƒ Humidity 95% @ 40° C (non-condensing)
ƒ Operating Temperature (IEC 60068-2-2, 100% CPU/ I/O loading)
-10 ~ 55° (14 ~ 131° F)
ƒ Shock Protection IEC 68 2-27
CompactFlash: 20 G @ DIN, half sine, 11 ms,
50 G @ Wall/Panel, half sine, 11 ms
ƒ Vibration Protection IEC 68 2-6
CompactFlash: 2 Grms @ sine, 5 ~ 500 Hz,
1 Oct./min, 1hr/axis.
HDD: 1 Grms @ sine, 12 ~ 300 Hz, 1 Oct./min, 1hr/axis.
Ordering Information
ƒ UNO-2050G-G30E LX800 500MHz, 256 MB RAM Automation Computer
Accessories
ƒ UNO-HD20-AE UNO-2000 HDD expansion kit
ƒ UNO-FPM21-AE UNO-2000 series VESA mount kit
ƒ PCLS-DIAGAW10 Advantech Remote Monitoring & Diagnosis Utility
RoHS
COMPLIANT
2002/95/EC
