Features
UNO-2172/2182
Intel ® Core ™ 2 Duo/ Pentium ® M/
Celeron ® M Automation Computers
with 2 x GbE, 4 x COM, DVI
I/O Interface
ƒ Serial Ports 2 x RS-232, 2 x RS-232/422/485 with DB9 connectors
Automatic RS-485 data flow control
ƒ Serial Port Speed RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 921.6 kbps (Max.)
ƒ LAN 2 x 10/100/1000 Base-T RJ45 ports (supports wake on
LAN and built-in boot ROM in flash BIOS)
ƒ USB Ports 2 x USB, EHCI, Rev. 2.0 compliant
Environment
ƒ Humidity 95% @ 40° C (non-condensing)
ƒ Operating Temperature IEC 60068-2-2, 100% CPU/ I/O loading)
UNO-2182: -10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH.
UNO-2172: -20 ~ 50°C (-4 ~ 122°F) @ 5 ~ 85% RH.
ƒ Shock Protection IEC 60068-2-27
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
ƒ Vibration Protection IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
CompactFlash: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz
Ordering Information
ƒ UNO-2172-C22BE Celeron M 1.5 GHz, 1GB RAM Automation Computer
ƒ UNO-2172-P22BE Pentium M 1.6 GHz, 1GB RAM Automation Computer
ƒ UNO-2182-D13BE Core 2 Duo 1.5GHz, 2GB RAM Automation Computer
Accessories
ƒ UNO-PCM22-AE 2 x PC/104 expansion kit for UNO-2100 series
ƒ UNO-FPM21-AE UNO-2000 series VESA mount kit
ƒ PCLS-DIAGAW10 Advantech Remote Monitoring & Diagnosis Utility
ƒ Onboard Intel Core 2 Duo 1.5 GHz (L7400)/ Pentium M 1.6 GHz/ Celeron M
1.5 GHz processors
ƒ Onboard 512 KB battery-backup SRAM
ƒ 2 x RS-232 and 2 x RS-232/422/485 ports with automatic flow control
ƒ 2 x 10/100/1000 Base-T Ethernet
ƒ DVI-I supports dual display
ƒ Audio with Mic in, Line in, Line out
ƒ 2 x USB 2.0 ports
ƒ PCI-104 expansion
ƒ Windows ® WES 2009, WES 7 ready solution
ƒ Supports one SATA HDD and one external eSATA devices
ƒ Onboard system status LED indicators
ƒ Supports wake on LAN and boot from LAN function
ƒ Fanless design with no internal cabling
ƒ Isolation between chassis and power ground
Specifications
General
ƒ Certifications CE, FCC Class A, UL, CCC
ƒ Dimensions (W x D x H) 255 x 152 x 69 mm (10" x 6.0" x 2.7")
ƒ Enclosure Aluminum
ƒ Mounting DIN-rail, Wallmount, VESA
ƒ Industrial Grounding Isolation between chassis and power ground
ƒ Power Consumption UNO-2182: 35W (Typical)
UNO-2172: 45W (Typical)
ƒ Power Requirements 9 ~ 36 V
DC
(e.g +24V @ 2A) (Min. 48W), ATX
ƒ Weight 3.0 kg
ƒ OS Support Windows 2000/XP, WES7, WES-2009, XPe, CE 5.0 &
6.0, Linux, QNX
ƒ System Design Fanless with no internal cabling
ƒ Remote Management Built-in Advantech DiagAnywhere agent on Windows
CE / WES2009 / WES7
System Hardware
ƒ CPU UNO-2182: Core 2 Duo L7400 1.5GHz
UNO-2172: Pentium M 1.6GHz, Celeron M 1.5GHz
ƒ Memory UNO-2182: 2GB DDR2 SDRAM built-in
UNO-2172: 1GB DDR2 SDRAM built-in
ƒ Indicators LEDs for Power, IDE, Alarm for battery backup SRAM,
LAN (Active, Status) and Serial (Tx, Rx)
ƒ Battery Backup SRAM 512 KB
ƒ Keyboard/Mouse 1 x PS/2
ƒ PC/104 Slot PCI-104 slot, supports +5 & 3.3V power
ƒ Storage CF: 1 x external type I/II CompactFlash ® slot
HDD: Build-in one 2.5" SATA/IDE HDD bracket
ƒ Display DVI-I supports DVI and VGA for dual display
ƒ Audio Mic in, Line in, Line out
ƒ SATA 1 x internal, 1 x external SATA 1.0
ƒ Watchdog Timer Programmable 256 levels timer interval, from 1 to 255
sec
Introduction
UNO-2172 and UNO-2182 are high-performance Pentium M/ Core 2 Duo grade controllers that support PCI-104 expansion, serial communication ports and several other networking
interfaces. They support Windows WES2009 OS, which offers a pre-configured image with optimized onboard device drivers. Windows WES2009 delivers the power of the Windows
operating system in componentized form. You can seamlessly integrate your applications into Windows WES2009 and speed up your system development with application-ready
platforms that provide rich networking interfaces to fulfill diverse requirements.
RoHS
COMPLIANT
2002/95/EC

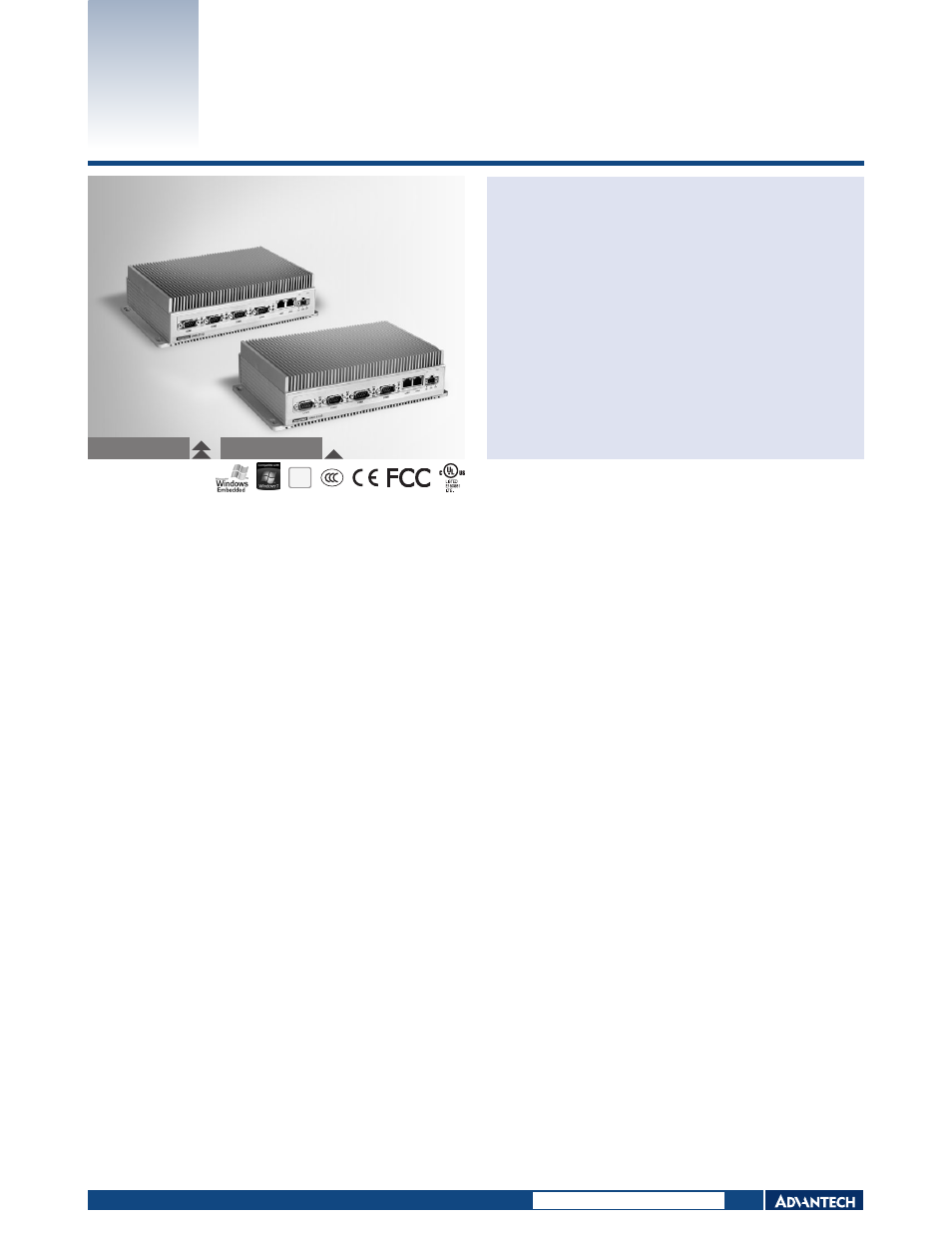

UNO-2172 UNO-2182
