PC-based Controllers & I/O Modules

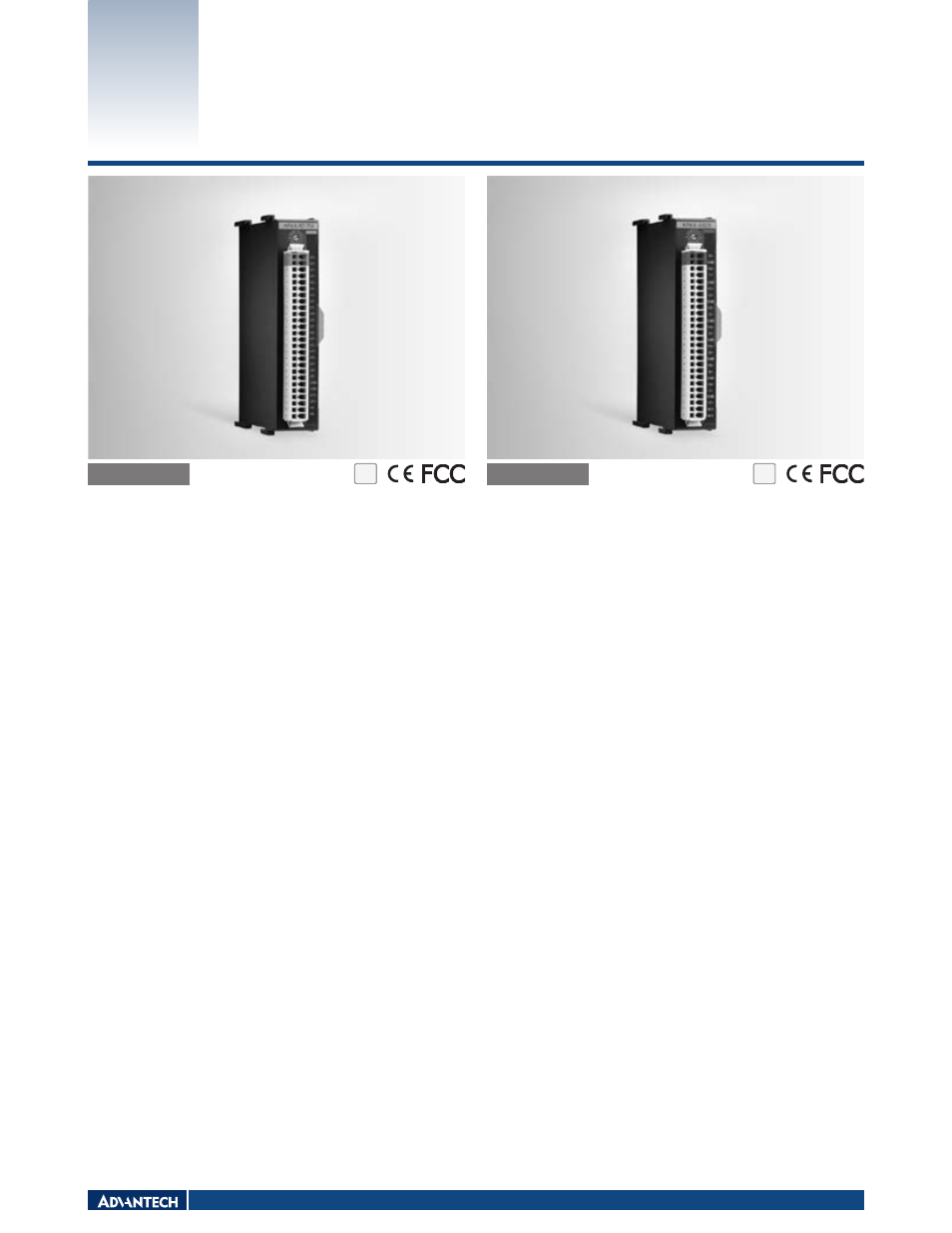

APAX-5017H
APAX-5028
12-ch High Speed Analog Input Module
8-ch Analog Output Module
APAX-5017H
Specifications
General
ƒ Certifications CE, FCC class A
ƒ Dimensions (W x H x D) 30 x 139 x 100 mm
ƒ Enclosure ABS+PC
ƒ Weight 175 g
ƒ Power Consumption 3.5 W @ 24 V
DC
(typical)
Analog Input
ƒ Channels 12
ƒ Input Impedance 2 M W (Voltage), 120 W (Current)
ƒ Input Type V, mV, mA
ƒ Input Range 0 ~ 500 mV, ±10 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA
ƒ Configure Different Range for Each Channel
ƒ Resolution 12-bit with accuracy ±0.1% or better of Full Scale
Range (Voltage),
±0.2% or better of Full Scale Range(Current)
ƒ Sampling Rate 1,000 sample/second (per channel)
ƒ Span Drift ±25 ppm/° C
ƒ Zero Drift ±6 μV/° C
ƒ Wire Burn-out Detection Yes (4~20 mA only)
Protection
ƒ Over Voltage Protection
ƒ 2,500 V
DC
Isolation Between Channels and Backplane
Note: The voltage between any two pins must not exceed 15 V
Environment
ƒ Operating Temperature -10 ~ 60° C (when mounted vertically)
ƒ Storage Temperature -40 ~ 70° C
ƒ Relative Humidity 5 ~ 95% (non-condensing)
Ordering Information
ƒ APAX-5017H 12-ch High Speed Analog Input Module
ƒ APAX-5001 1-slot Backplane Module
ƒ APAX-5002 2-slot Backplane Module
ƒ APAX-5343E Power Supply for APAX Expansion Module
APAX-5028
Specifications
General
ƒ Certifications CE, FCC class A
ƒ Dimensions (W x H x D) 30 x 139 x 100 mm
ƒ Enclosure ABS+PC
ƒ Weight 175 g
ƒ Power Consumption 3.5 W @ 24 V
DC
(typical)
Analog Output
ƒ Channels 8
ƒ Output Type V, mA
ƒ Output Range ±2.5 V, ±5 V, ±10 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V,
0 ~ 20 mA, 4 ~ 20 mA
ƒ Configure Different Range for Each Channel
ƒ Resolution 14-bit with accuracy ±0.1% or better of Full Scale
Range
ƒ Settling time about 500 μs
ƒ Slew Rate 0.7 V
DC
/μs (per channel)
ƒ Span Drift ±60 ppm/° C
ƒ Zero Drift ±275 mV/° C (Voltage)
±250 mV/° C (Current)
ƒ Drive Voltage 15 V
DC
(Current Mode)
ƒ Load (Current Mode) 0 ~ 500 W
Protection
ƒ 2,500 V
DC
Isolation Between Channels and Backplane
ƒ Short Circuit Protection
Environment
ƒ Operating Temperature -10 ~ 60° C (when mounted vertically)
ƒ Storage Temperature -40 ~ 70° C
ƒ Relative Humidity 5 ~ 95% (non-condensing)
Ordering Information
ƒ APAX-5028 8-ch Analog Output Module
ƒ APAX-5001 1-slot Backplane Module
ƒ APAX-5002 2-slot Backplane Module
ƒ APAX-5343E Power Supply for APAX Expansion Module
RoHS
COMPLIANT
2002/95/EC
RoHS
COMPLIANT
2002/95/EC
