Features
Introduction
APAX-5202P is a PCI interface card which supports two AMONet RS-485 master rings, and transfers data between host and slaves directly without any operations in between. Each
ring can control up to 2,048 I/O points, 256 axes, or a combination of I/O points and axes for motion control. The ring can support up to 20 Mbps transfer rate and a maximum
communication distance of up to 100 meters. The communication between master and slave is based on a customized RS-485 solution that saves wires, covers a long distance,
supports high-speed communication and has time-deterministic features. The communication interface between master and PAC is accomplished by memory mapping. Various
functions can be chosen on the slave modules, and standard industrial DIN-rail mounting design makes it easy to distribute them in the field. The master collects information from
slave modules and publishes the information to its PAC controller.

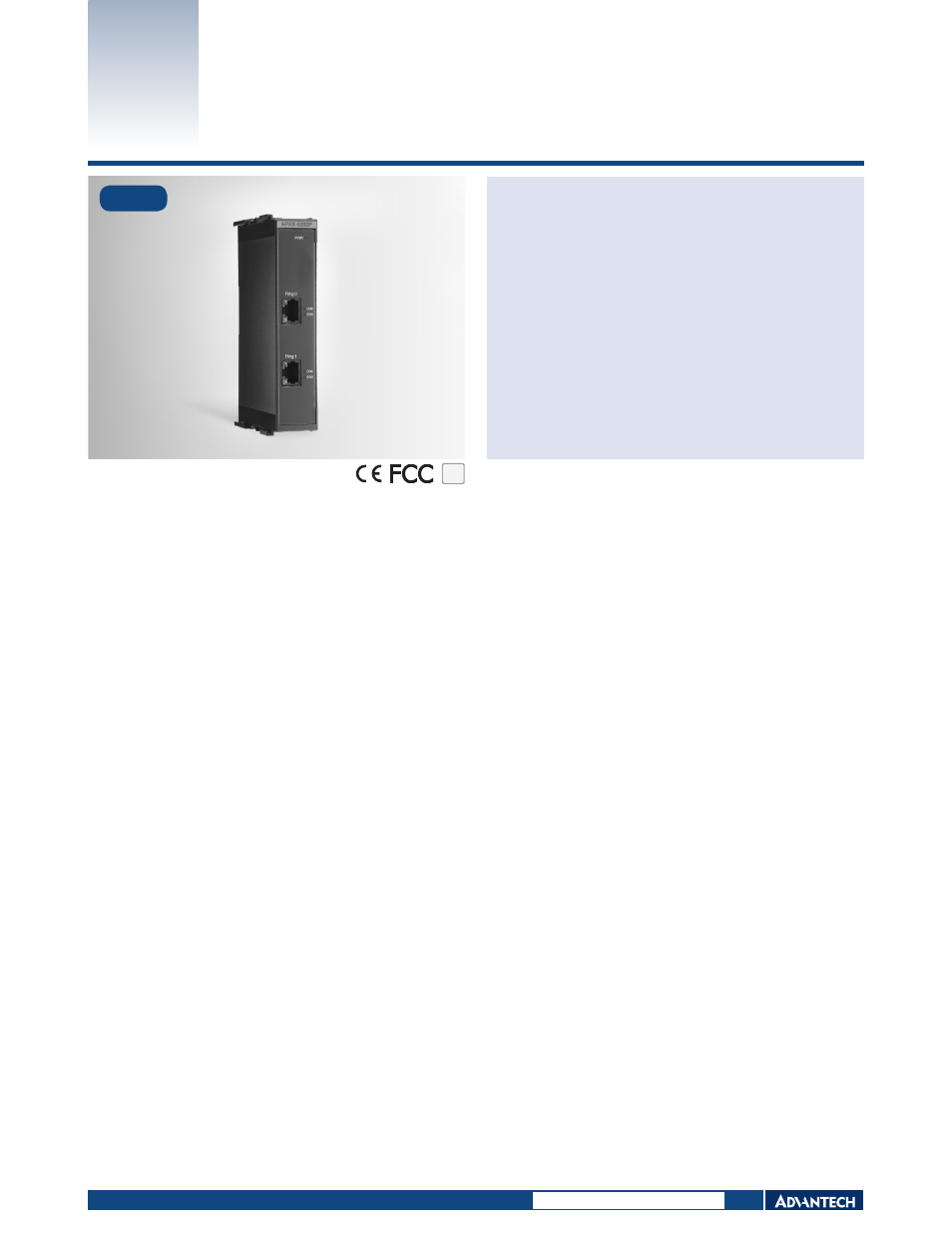

APAX-5202P
2-port AMONet Master Module
Specifications
AMONet RS-485 Motion Control
ƒ Connectors RJ-45
ƒ LED Indictors Active, Error (Each Port)
ƒ Number of Rings 2
ƒ Transmission Speed 2.5, 5, 10 or 20 Mbps with automatic data flow control
ƒ Serial Interface Half duplex RS-485 with transformer isolation
ƒ Cable Type CAT5 UTP/ STP Ethernet cable
ƒ Surge Protection 10 kV
ƒ Communication 100 m @ 20 Mbps w/32 slave modules
Distance (Max.) 100 m @ 10 Mbps w/64 slave modules
ƒ Slave Module Support Digital I/O, Motion Control
General
ƒ Certifications CE, FCC Class A
ƒ Connectors 2 x RJ45
ƒ Dimensions (W x H x D) 30 x 139 x 100 mm
ƒ Power Consumption 2.5 W @ 5 V
DC
(typical)
ƒ Relative Humidity 5 ~ 95% (non-condensing)
ƒ Operating Temperature 0 ~ 60° C (mounted vertically)
ƒ Max. 20 Mbps transfer rate
ƒ 2 x independent AMONet RS-485 master rings
ƒ Max. 128 AMONet RS-485 slave modules supported
ƒ Easy installation with RJ45 phone jack and LED diagnostic
ƒ KW Multiprog software programming support
Ordering Information
ƒ APAX-5202P-AE 2-port AMONet Master Module
Note: APAX-5202P can only be used by controllers with a PCI interface
Accessories
ƒ AMAX-2241/PMA-AE 4-axis AMONet Motion Module for Panasonic Minas A
ƒ AMAX-2242/J2S-AE 4-axis AMONet Motion Module for Mitsubishi MR-J2S
ƒ AMAX-2243/YS2-AE 4-axis AMONet Motion Module for Yaskawa Sigma-II
ƒ AMAX-2752SY-AE 32-ch Isolated Digital Input AMONet Module
ƒ AMAX-2754SY-AE 32-ch Isolated Digital Output AMONet Module
ƒ AMAX-2756SY-AE 16/16-ch Isolated Digital I/O AMONet Module
ƒ PCL-10220M-2 20-pin SCSI Cable, 2 m
ƒ PCL-10150M-2 50-pin SCSI Cable, 2 m
NEW
RoHS
COMPLIANT
2002/95/EC
