3 connector pin assignments, J1: cf master/slave switch, J3: usb – Impulse PMX-090T User Manual

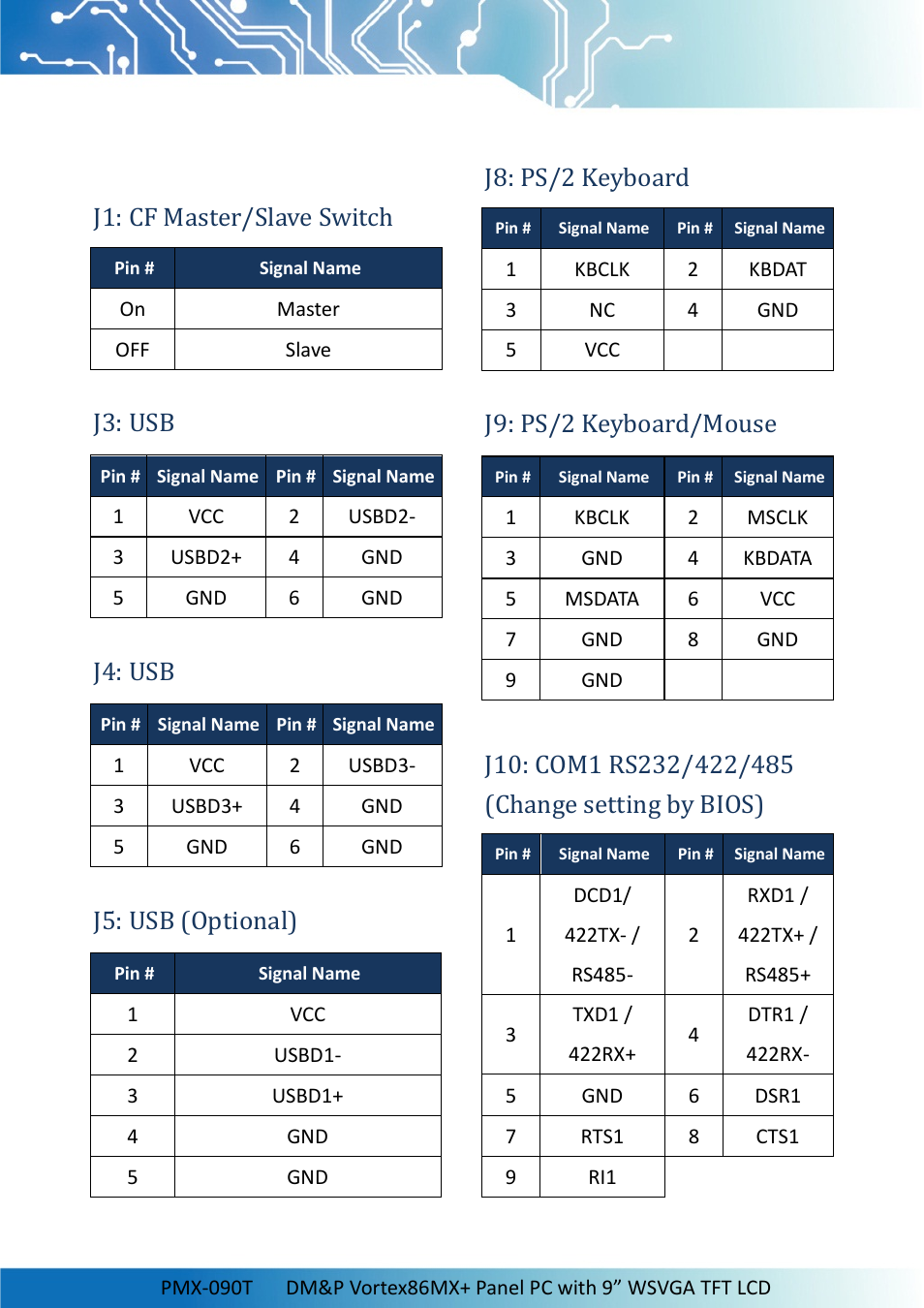

Page 15: J4: usb, J5: usb (optional), J8: ps/2 keyboard, J9: ps/2 keyboard/mouse, J10: com1 rs232/422/485 (change setting by bios), J1: cf master/slave switch j3: usb
