Chapter 4 HMI series Panel PC Mounting Guide

The Panel PC is suitable for most of the industrial/commercial application, by any

kind of mounting approach. Three main mounting approaches, such as VESA Mount/
Panel Mount /IP65 Mount, are very easy for user to install the Panel PC. As the
pictures guided:

4-1

VESA Mount :

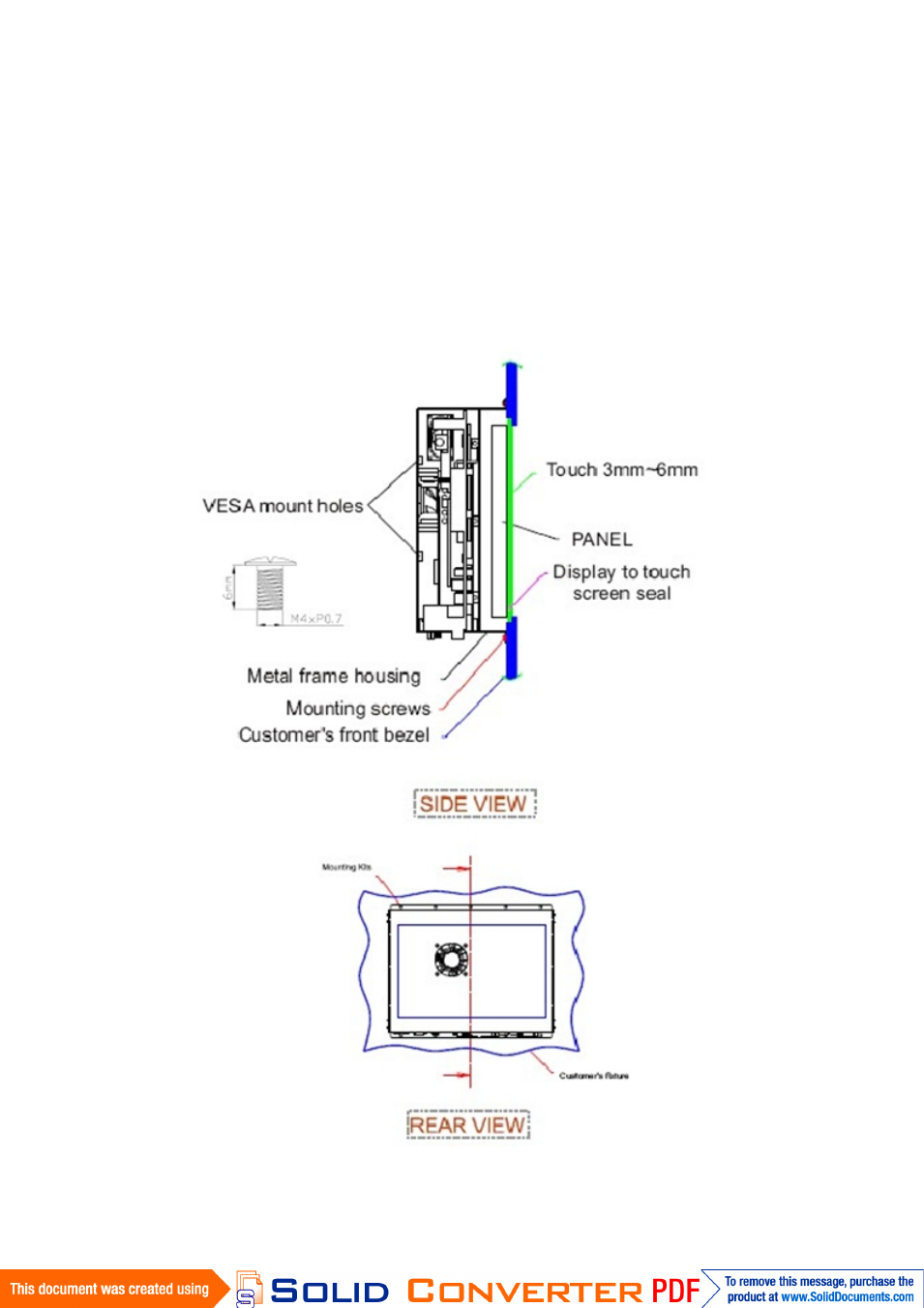

-Panel is aligned with the same height of the front of open frame metal

housing

-Customers can fix our Panel PC with their own front bezel.
-VESA mount holes are also available for mounting from back side.

This manual is related to the following products:
