271 * All specifications and photos are subject to change without notice.
Items
Specifications
Input Output MTBF
PS300-
XP2
100,000
hours
PS300-
HRP
Watt
100,000
hours
ATX 300W
HRP
(PFC)
AC 90~264V
(Auto)
+5V @ 25A
+12V @ 16A
-5V @ 0.5A
-12V @ 0.5A
+3.3V @ 18A
+5V
SB
@ 2A
ATX 300W
(PFC)
Slide Switch
(115Vac/230Vac)
+5V @ 30/21.5A
+12V @ 15A
-12V @ 0.8A
+3.3V @ 15/28A
+5V SB @ 2A
-5V @ 0.3A
Items
Specifications
Input Output MTBF
PS500-
XP2
200,000
hours
PS400-
XP2
Watt
100,000
hours
ATX 400W
(PFC)
AC 90~264V
(Auto)
+5V @ 20A
+12V1 @ 16A
+12V2 @ 16A
-12 @ 0.5A
+3.3 @ 20A
+5V SB @ 2.5A
Power Supply Specifications

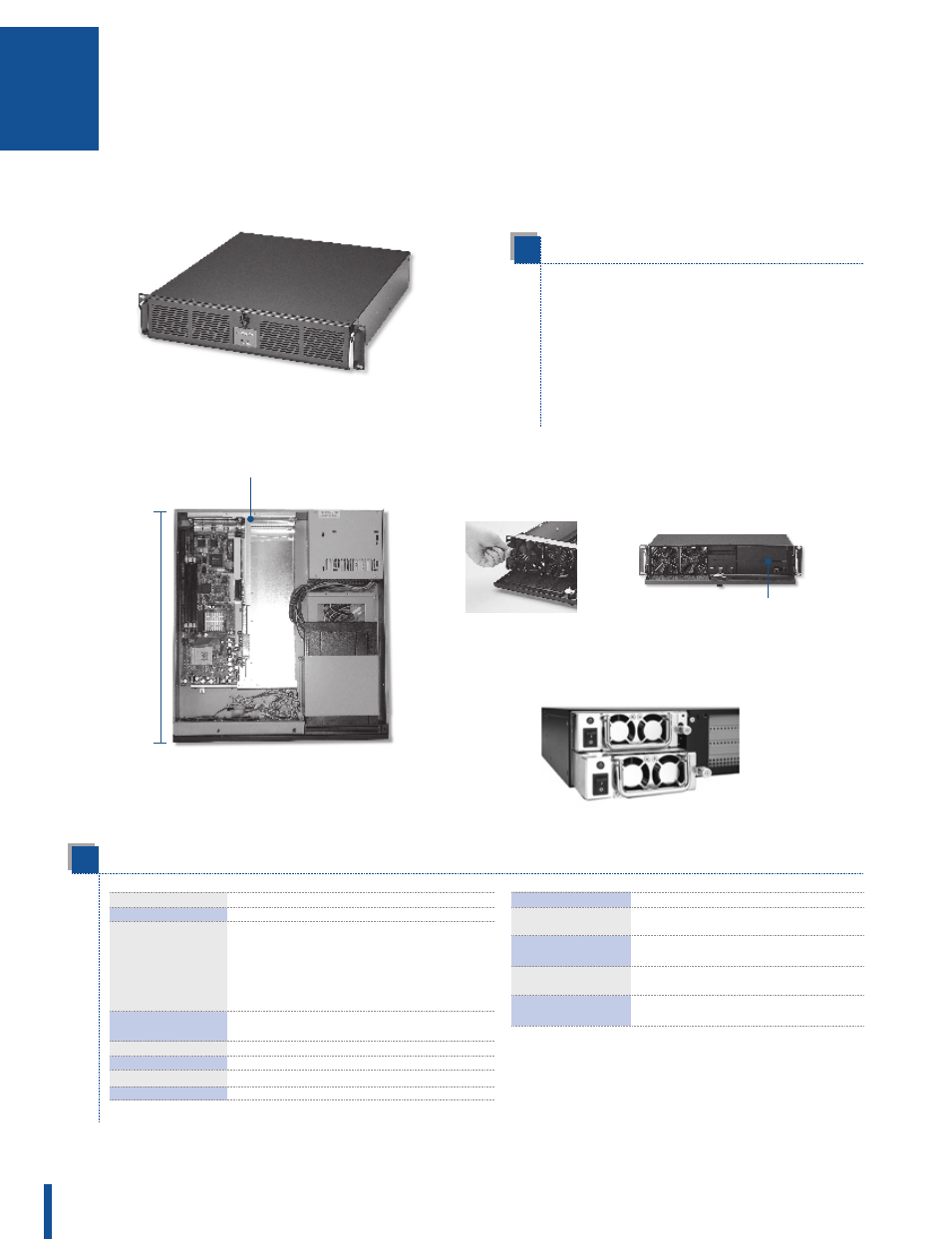

2U Compact Rackmount Chassis
AX61222TP/AX61220TP
Optional Items
AX-SLCD Slim-line CD-ROM
AX-SLCDR Slim-line CD-RW
Ordering Information
AX61220TP/X300R With ATX6022/6VP4, ATX 300W redundant power supply
(475mm depth)
AX61220TP/X300R With FAB105-V1, ATX 300W redundant power supply
(475mm depth)
AX61220TP/X300R With FAB105-V5, ATX 300W redundant power supply
(475mm depth)
AX61222TP/X300 With ATX6022/6VP4, ATX 300W power supply
(450mm depth)
AX61222TP/X300 With FAB105-V1, ATX 300W power supply
(450mm depth)
AX61222TP/X300 With FAB105-V5, ATX 300W power supply (450mm depth)
AX61222TP/X400 With ATX6022/6VP4, ATX 400W power supply
(450mm depth)
AX61222TP/X500 With ATX6022/6VP4, ATX 500W power supply
(450mm depth)
Specifications
Features
2U rackmount design in depth of 450mm
(AX61222TP)/475mm (AX61220TP)
PICMG SBC structure with 5 free slots for expansion
Front-accessible one 5.25" HDD drive bay,
one slim-line CD-ROM, one 3.5" HDD drive bay, max.
up to 2 internal 3.5" HDD drive bays
Dimensions
Standard Color Black
Construction Heavy-duty cold-rolled steel
Drive Capacity - Exposed 1 x slim-line CD-ROM; 1 x 3.5" HDD drive
bay; 1 x 5.25" HDD drive bay; internal 1 x 3.5" HDD
drive bay
or
- Exposed 1 x slim-line CD-ROM; 1 x 3.5" HDD drive
bay; internal 3 x 3.5" HDD drive bay
Cooling 2 x 8cm (42.5CFM/each) ball-bearing fans with a
removable filter
Front Panel Indicators Power on/off; HDD
Front Panel Controls
Power on/off; system reset
Front Panel Connectors 2 x USB ; 1 x PS/2 6-pin
Pre-punched Panel
Rear: 1 x 9-pin
System Board PICMG 1.0 & PICMG 1.3 SBCs
Expansion Interface ATX6022/6VP4 or FAB105-V1 or
FAB105-V5 or FAB205
Operating Temperature 0˚C ~ 40˚C (32˚F ~ 104˚F)
Range
Dimensions
482.6mm(19") (W) x 450mm (17.7") (D) x
88.9mm (3.5") (H)
Weight (net/gross) 12.7 kg (28 lb)/14.3 kg (32.23 lb) (AX61222TP)
12.7 kg (28 lb)/14 kg (30.87 lb) (AX61220TP)
427.40
481.40
88.9
463.01
450.00
92.00 (3x)
93.20
ATX 500W
(PFC)
AC 90~264V
(Auto)
+5V @ 24A
+12V @ 34A
+12V1 @ 17A
+12V2 @ 17A
-12 @ 0.8A
+3.3 @ 24A
+5V SB @ 2.5A
Removable fan filter
on the front panel
Flexible combination of drive bays for
removable HDD,CD-ROM, FDD, tape
drive and hidden HDDs
450m
m
Top view
ATX 6022/ 6VP4 backplane (up to 4 x PCI, 1 x ISA, 1 x PICMG)
Optional hot-swap redundant power supply (only for AX61220TP)
* Specifications and certifications are limited to optional.
